17. LIGHTS/INSTRUMENTS/SWITCHES
17-5
AGILITY CITY 125

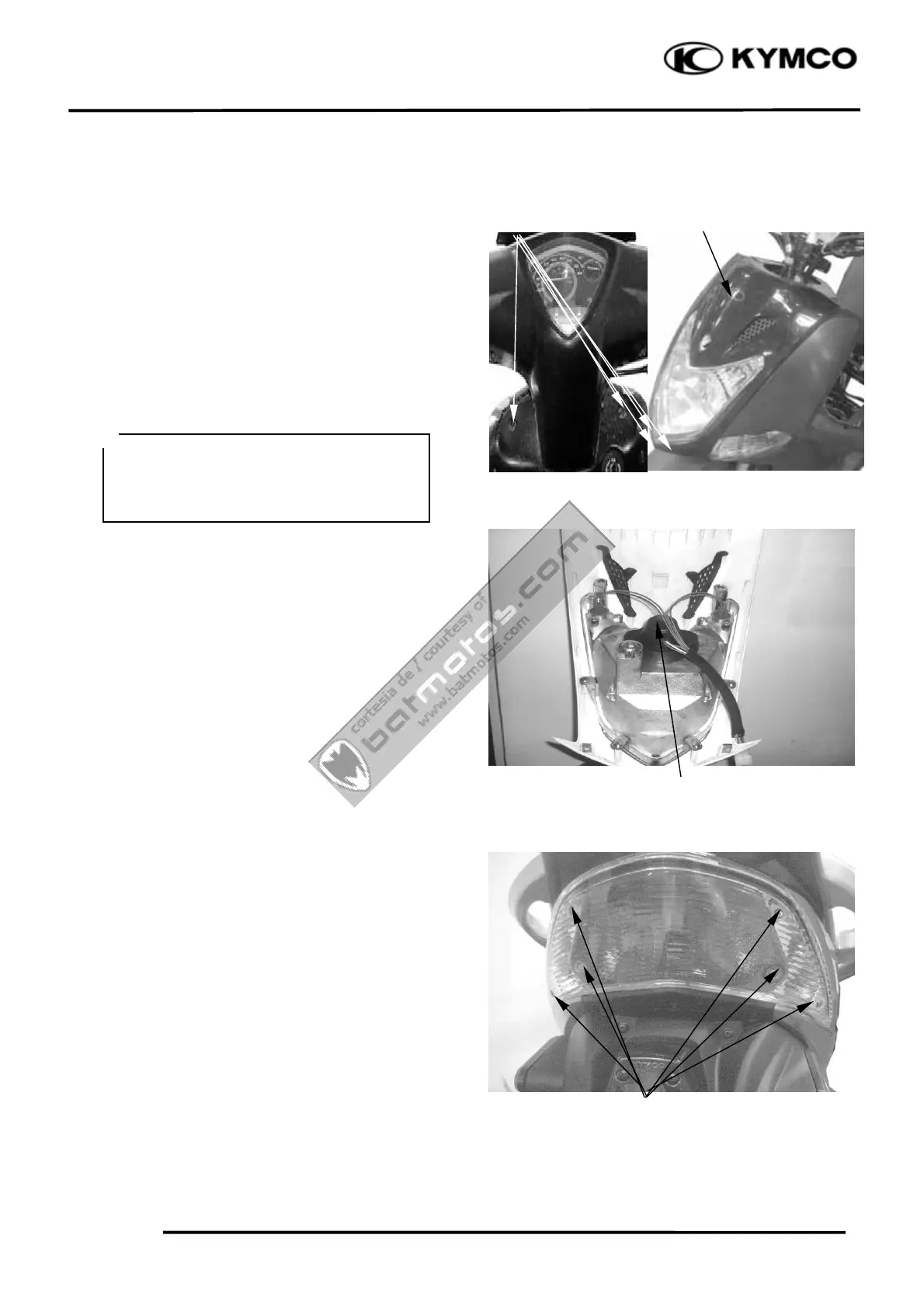

HEADLIGHT
REMOVAL
Remove the screw on the front cover.
Remove the two screws on the back of the
front cover.
Remove the front cover.
The installation sequence is the reverse of
removal.
BULB REPLACEMENT
Remove the headlight bulb Coupler. (
Ö
2-2)
Remove the headlight replace with new
bulbs.
The installation sequence is the reverse of
removal.
TAILLIGHT/STOPLIGHT/REAR TURN
SIGNAL LIGHT/LICENSE LIGHT
Remove the two screws attaching the rear
protector molding.
Remove the rear protector molding and
remove the two nuts attaching the rear light
shell.
Remove the rear turn signal light bulb and
replace with a new one.
The installation sequence is the reverse of
removal.
xAlign the tab on the headlight with the
groove on the handlebar cover.
xAfter installation, adjust the headlight
beam. (
Ö
3-9)
＊
Screw
Fron
t
Cove
r
Headlight Bulb Couple
r
N
uts
