DRIVE CHAIN SLACK CHECK (MXU 250/150)
Inspect the drive chain while all tires are
touching the ground. Check the slack at the
position shown in the figure.
MXU 250:
The normal vertical deflection is approximately
30 40 mm (1.18 in). If the deflection
exceeds 40 mm (1.57 in), adjust the chain slack.
－－
－－
1.57
MXU 150:
The normal vertical deflection is approximately
10 20 mm (0.39 0.79in). If the deflection
exceeds 20 mm (0.79 in), adjust the chain slack.
Drive chain slack adjustment (MXU 250):
1. Loosen the hub stopper bolt (1) and two axle
hub holding bolts (2).

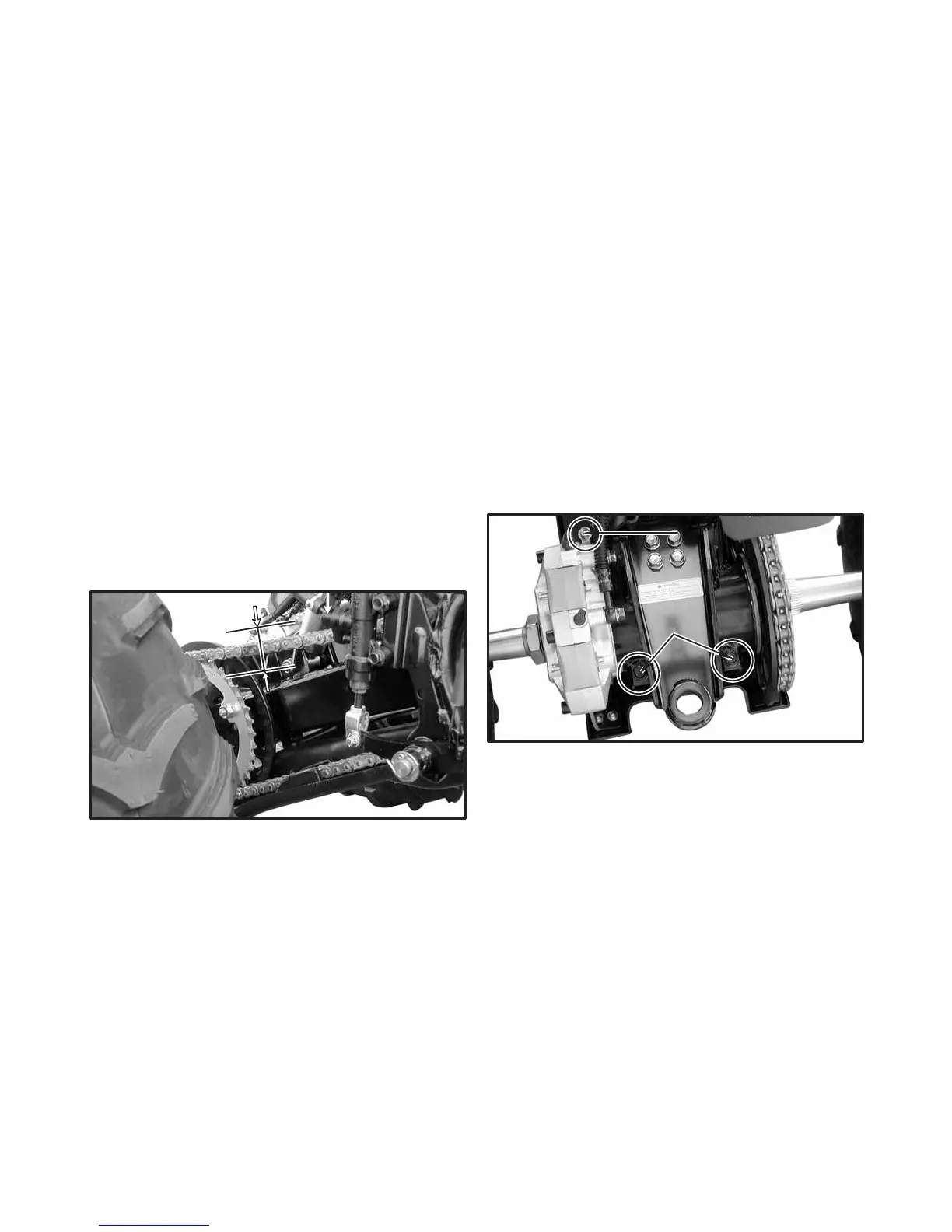

(A) MXU 250: 30 40 mm (1.18 1.57in)
MXU 150: 10 20 mm (0.39 0.79in)
－－
－－
(1) Hub stopper bolt (2) Axle hub holder bolt
(A)
(1)
(2)
