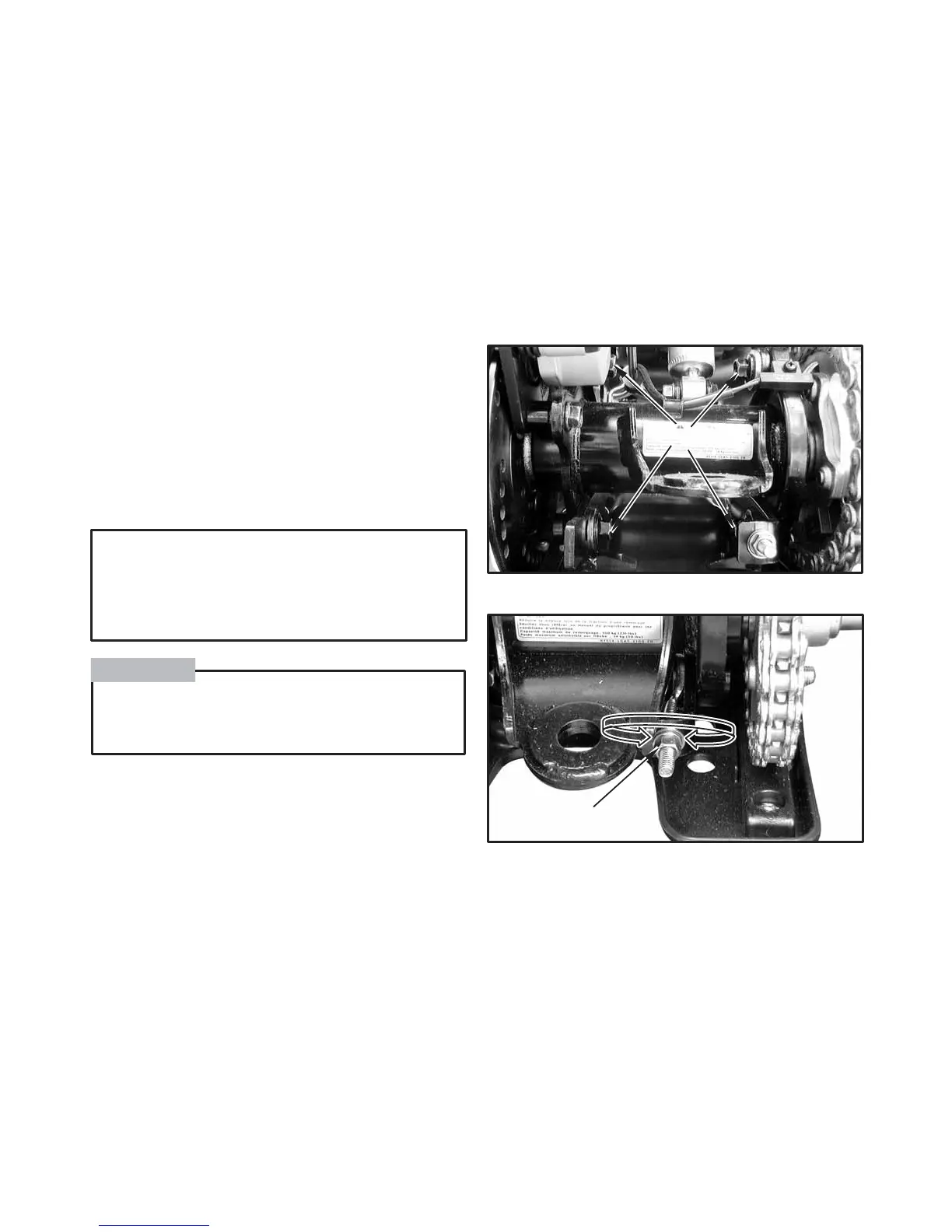

Drive chain slack adjustment (MXU 150)
1.Loosen the upper and lower axle holding bolts
(1).
2.Turn the adjusting nut (2), to decrease or
increase chain slack.
3.Retighten the upper and lower axle holding
bolts.
(1) Axle holding bolt x 4
(1)
(2) Adjust nut
(2)
164
Too little of chain slack will overload the
engine and other important parts. Keep the
slack within the specified limit.
Tightening torque:
Axle holding bolts (upper):
70 Nm (7.0 m-kg, 48 ft-lb)
CAUTION:
