19. LIGHTS SWITCHES/ FUEL PUMP

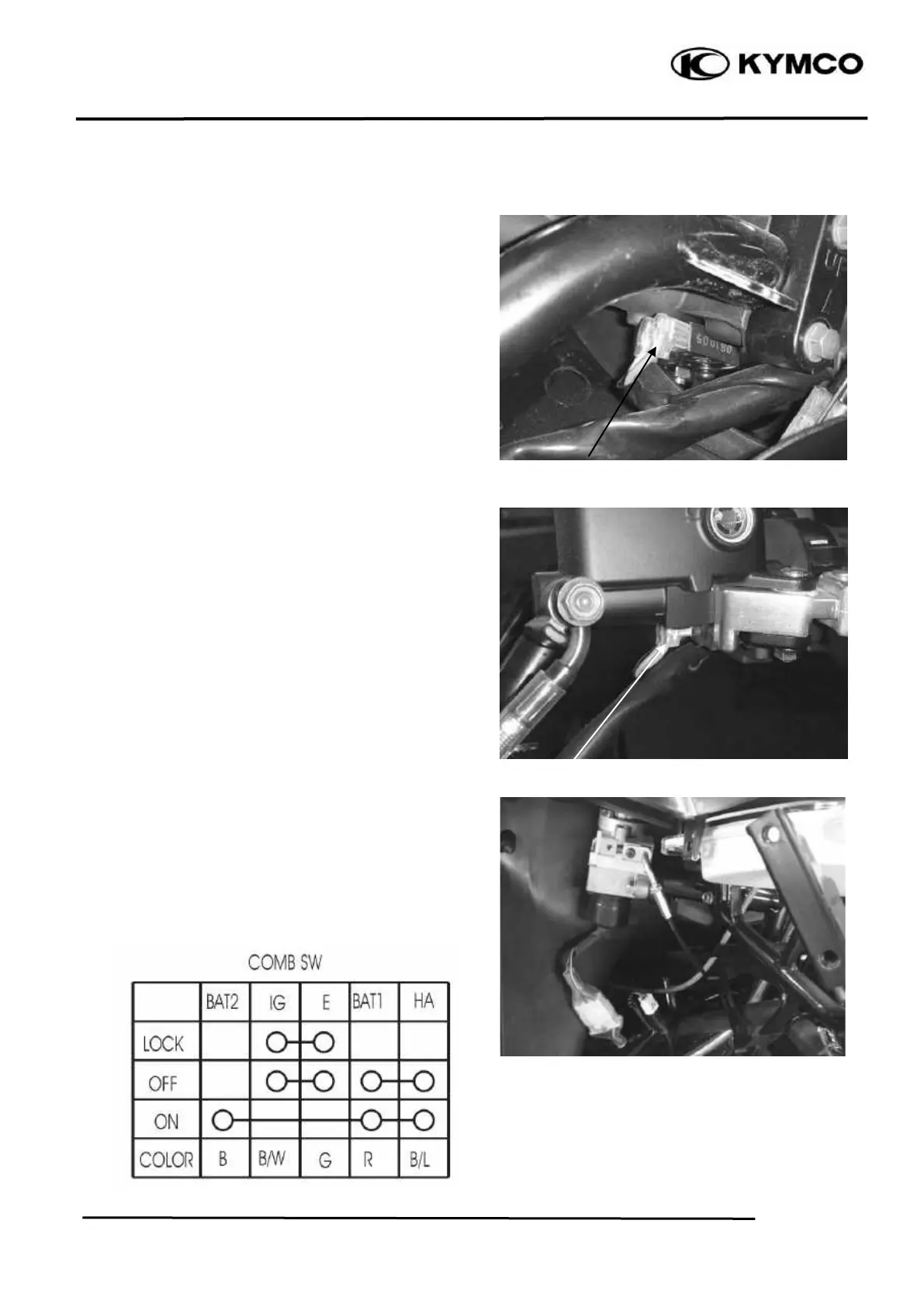

BRAKE LIGHT SWITCH
Remove the upper handlebar cover.
Disconnect front or rear brake light switch
connectors and check for continuity between
the switch terminals.
There should be continuity with the front or
rear brake lever squeezed, and there should be
no continuity with the front or rear brake
lever is released.
IGNITION SWITCH
INSPECTION
Remove the front cover.
Disconnect the ignition switch connector and
check the ignition switch for continuity at the
switch side connector terminals.
Continuity should exist between the color
code wires as follows:
To Next Page
