© 2019 Kymeta Corporation and its affiliates. 9 08 March 2019
Kymeta™ u7 terminal usermanual
5 Package the Kymeta u7 terminal
Kymeta recommends boxing the u7 terminal in the original packaging. If you need to return a terminal, Kymeta
will provide the replacement terminal first. Use the packaging from the replacement terminal to ship the original one
back.
5.1 Package the u7 terminal (configuration 1)
The order of steps may vary depending upon your mounting structure. Always follow safety guidelines and refer to the
700-00008-001 Kymeta safety and handling guide for best practices.
1.
Power off the terminal using the power switch on the back of the I/O box.
2.
Carefully disconnect and cap all cables, being mindful of pins and connectors.
a.
Make sure cable ends do not drop into water or dirt.
b.
Dry off cables and coil them into the box, binding with cable ties.
c.
Do not leave adapters on cables.
3.
Remove the terminal ODU from the mounting structure and place face-down on a non-abrasive surface for safe
and easy access.
4.
Dry off all equipment and remove any debris.
5.
Place the terminal ODU at an angle where you can safely work on removing the mounting plate and attached RF
chain.
If the BUC is warm, cool it off before removing and packing the mounting plate with the attached RF chain .
6.
Remove the four diplexer mounting screws from the antenna WR-75 flange.
7.
Remove the ODU’s four connection point screws and remove the mounting plate with the attached RF chain.
8.

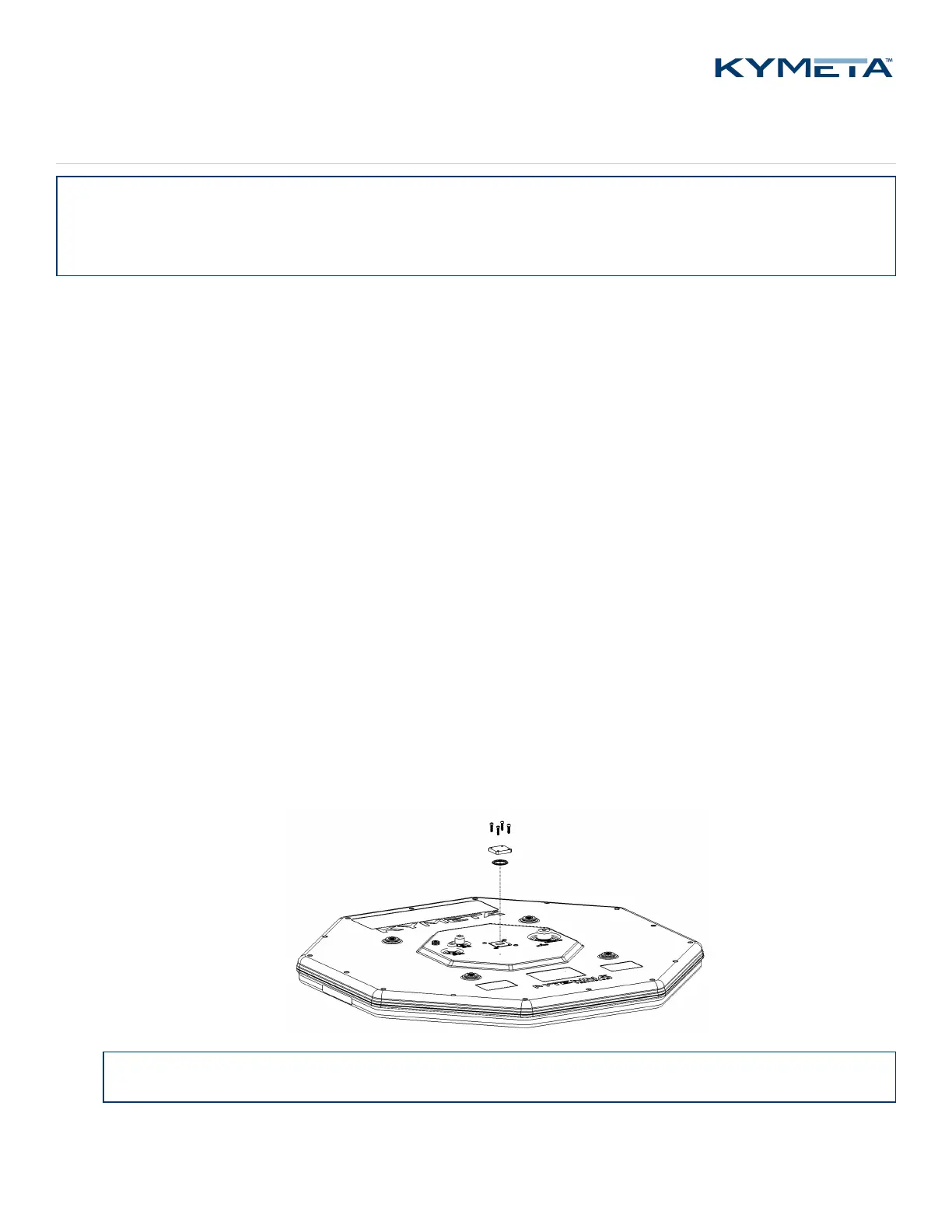

Reattach the protective cover to the antenna WR-75 flange before packing.
If the protective cover is no longer available, cover the port with electrostatic discharge (ESD) tape.
