Kyocera DF-9100 - Page 164

3-86
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
112

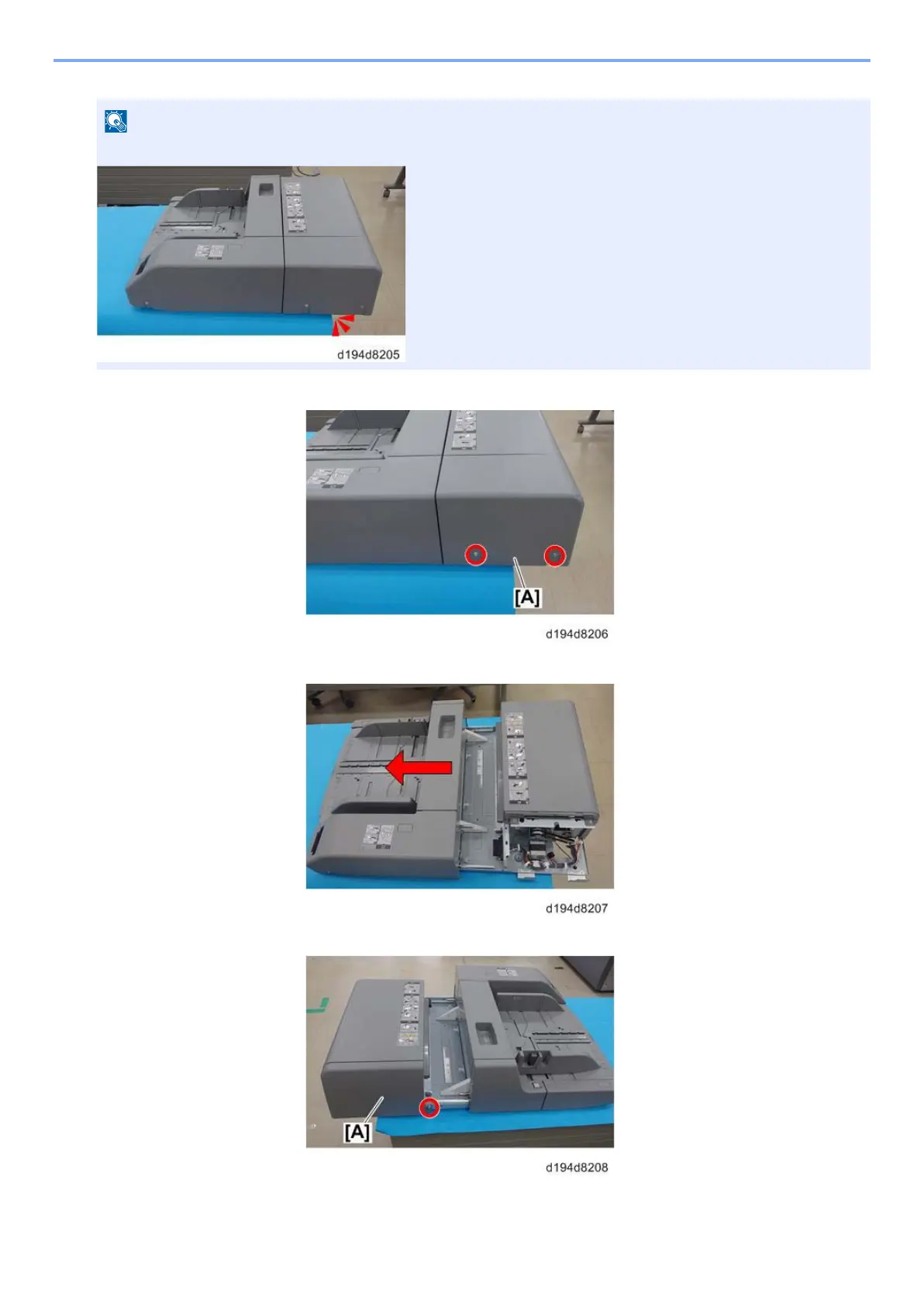

Remove the rear cover [A] (screw x2: M4x8). Screws are used in Step 128.
113
Open the bypass tray.
114
Remove the front cover [A] (screw x2: M4x8). Screws are used in Step 128.
NOTE
• The guide plate of the unit bottom sticks out, so place the unit on a table as shown below.
