3-130
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]

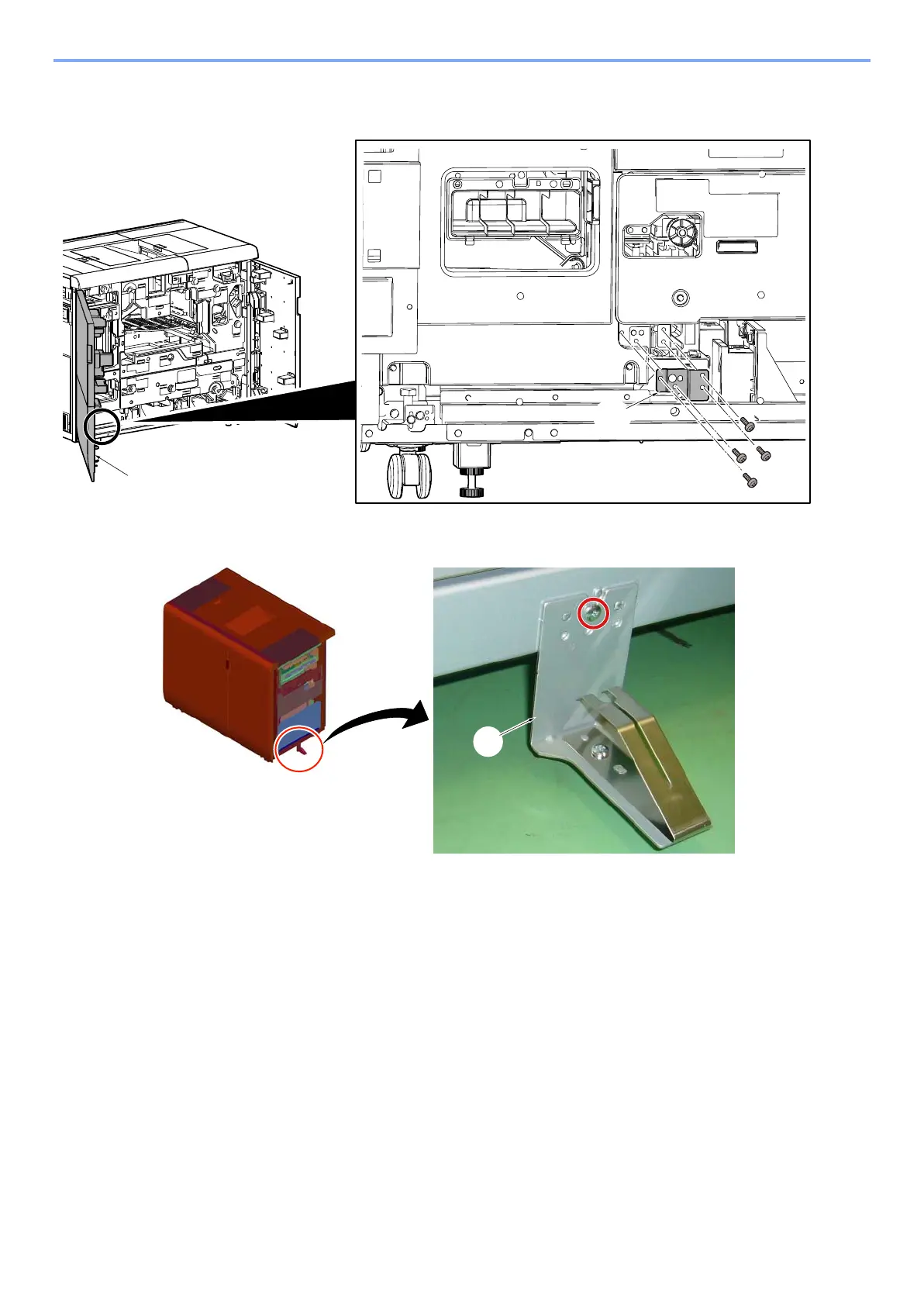

2 Open front left cover [A]. Remove the bracket [B] (Screw x4). Brackets [B] and screws will not be used in this
installation again.
8
Attach ground plate [A] to DE-9100 (Screw x1: M4x8).
[A]
[B]
[A]
