Kyocera ECOSYS M2535dn - Paper Misfeed Detection Condition

2PK/2PL/2PM/2PN
1-4-2
(2) Paper misfeed detection condition

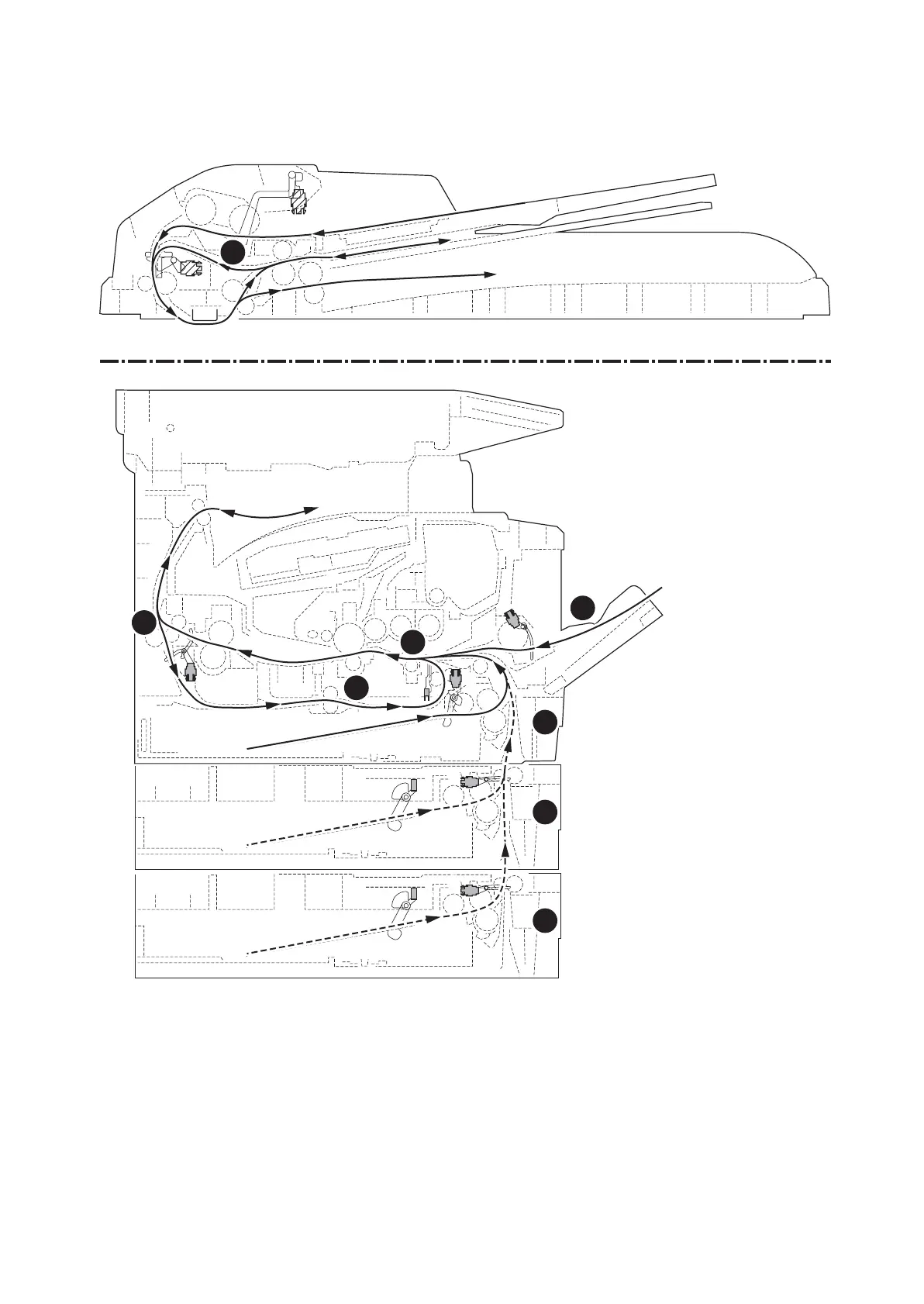

Figure 1-4-2
Cassette 2
(Paper feeder)
(Machine)
Cassette 3
(Paper feeder)
Cassette 1
DP
1: Registration sensor (RS)
2: Paper sensor (PS)
3: MP paper sensor (MPPS)
4: Exit sensor (ES)
5: PF paper feed sensor 1 (PFPFS1)
6: PF paper sensor 1 (PFPS1)
7: PF paper feed sensor 2 (PFPFS2)
8: PF paper sensor 2 (PFPS2)
9: DP document sensor (DPOS)
10: DP timing sensor (DPTS)
2
3
1
4
5
6
7
8
10
9
A
B
C
D
E
F
G
H
