Kyocera ECOSYS M2535dn Servlce Manual

2PK/2PL/2PM/2PN-5
1-3-27
U072 Adjust DP Original Center
Description
Adjusts the scanning start position for the DP original.
Purpose
Make the adjustment if there is a regular error between the centers of the original and the copy
image when the DP is used.
Adjustment
1. Press the start key.
2. Press the system menu key.
3. Place an original on the DP and press the start key to make a test copy.
4. Press the system menu key.
5. Select the item to be adjusted.l
6. Change the setting value using the cursor left/right keys or numeric keys.
For copy example 1, increase the value. For copy example 2, decrease the value.
Increasing the value moves the image rightward and decreasing it moves the image leftward.

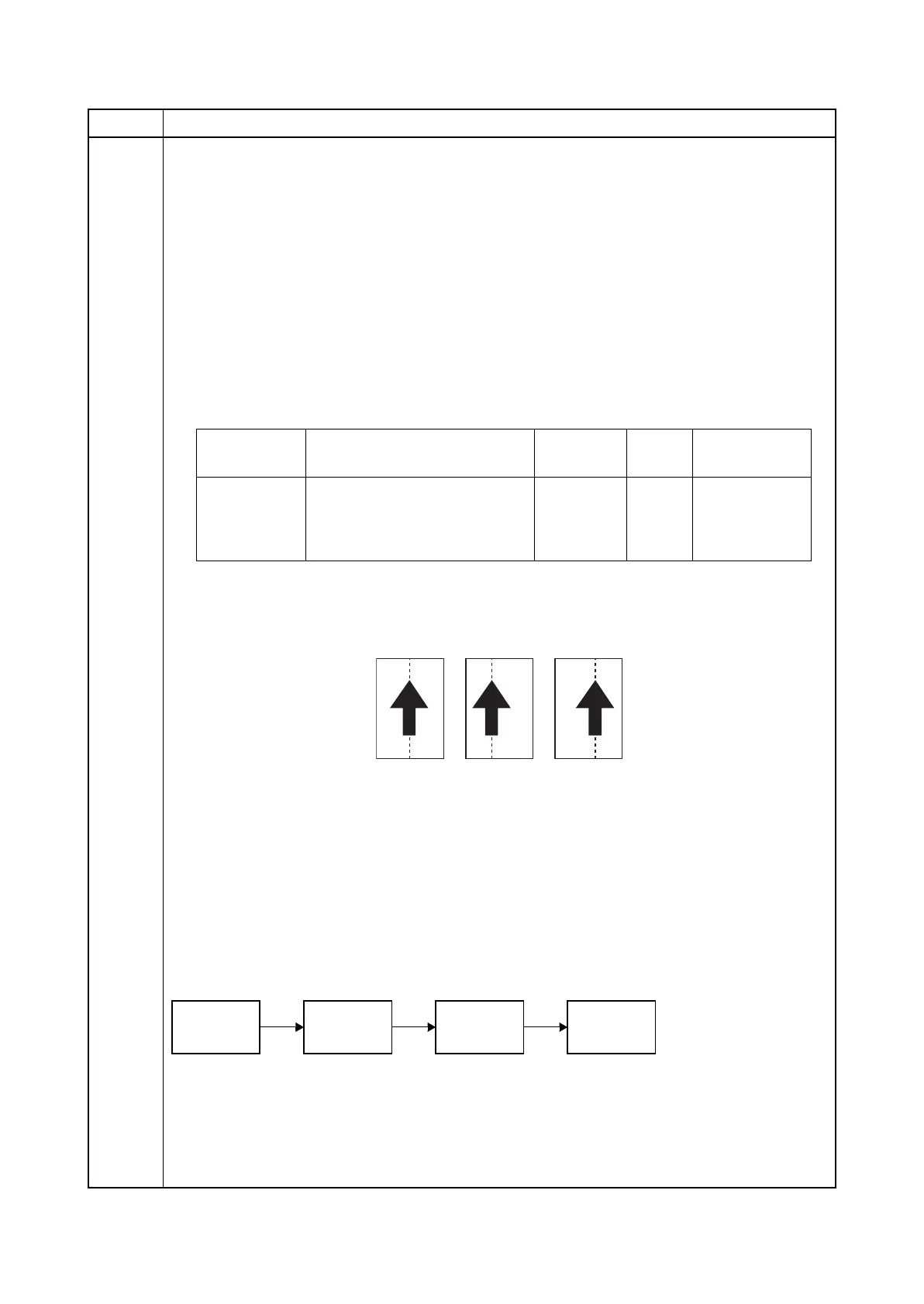

Figure 1-3-11
7. Press the start key. The value is set.
Caution
If the first side is adjusted, check the second side and if adjustment is required, carry out the
adjustment.
If the above adjustment does not optimize the center line, proceed with the following mainte-
nance modes.
Completion
Press the stop key. The screen for selecting a maintenance item No. is displayed.
Item No. Description
Display Description
Setting
range
Initial
setting
Change in
value per step
Front DP center line (first side) -39 to 39 - 0.085 mm
Back DP center line (second side) -39 to 39 - 0.085 mm
Rotate DP center line (rotate copying) -39 to 39 0 0.085 mm
Original Copy
example 1
Copy
example 2
U034
(P.1-3-17)
U065
(P.1-3-19)
U067
(P.1-3-22)
U072

Kyocera ECOSYS M2535dn Specifications

General

Secure printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	6.9 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	ADF scanner
Grayscale levels	256
Maximum scan area	Legal (216 x 356) mm
Scan speed (color)	14 ppm
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Faxing	Mono faxing
Fax memory	256 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax transmission speed	3 sec/page
Digital sender	-
Printing colors	Black
Maximum duty cycle	50000 pages per month
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Processor model	465S
Processor family	PowerPC
Card reader integrated	No
Maximum internal memory	1536 MB
Sound power level (standby)	27.5 dB
Sound pressure level (copying)	51.5 dB
Sound pressure level (printing)	51.3 dB
Sound pressure level (quiet mode)	49 dB
Paper input type	Cassette, Paper tray
Total input capacity	300 sheets
Total output capacity	- sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Maximum number of input trays	4
Auto document feeder (ADF) input capacity	50 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Auto Document Feeder (ADF) media weight	50 - 120 g/m²
Display	LCD
Product color	Black, White
Market positioning	Business
Display number of lines	5 lines
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	65 W
Power consumption (PowerSave)	3.7 W
Power consumption (average operating)	439 W
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Certification	TUV, GS, CE
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	430 mm
Width	494 mm
Height	448 mm
