Kyocera ECOSYS M3560idn - 40 Ppm Model

2NM/2NX/2NY/2NZ/2P0/2P6
1-5-42
(2) 40 ppm model

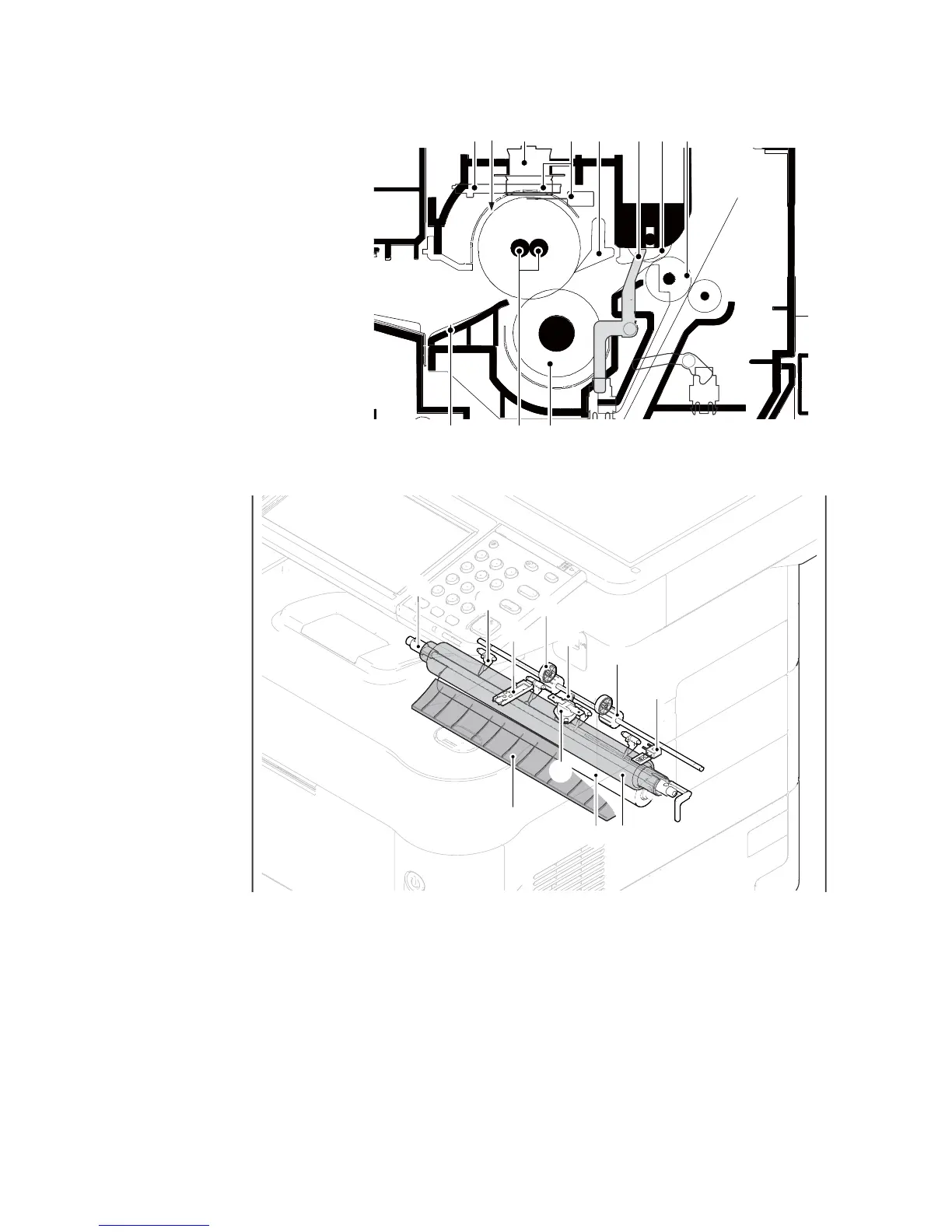

Figure 1-5-69
Figure 1-5-70
84 5 9710 3
611 2
1
[Component formation]
1. Heat roller
2. Fuser heater (FUH)
3. Fuser thermostat (FUTS)
4. Fuser thermistor (FUTH)
5. Separators
6. Press roller
7. Actuater
(Eject sensor (ES))
8. Fuser eject roller
9. Fuser eject pulley
10. Fuser thermistor (FUTH2)
11. Fuser pre guide
4
5
8
9
7
2
10
3
6 1
11
