2PX/2PY
1-5-36
(5) Detaching and refitting the FAX control PWB (4 in 1 model (with FAX) only)
Procedure
1. Remove the IF cover (see page 1-5-3).
2. Remove two screws and then remove
the FAX control PWB.
3. Check or replace the FAX control PWB
and refit all the removed parts.

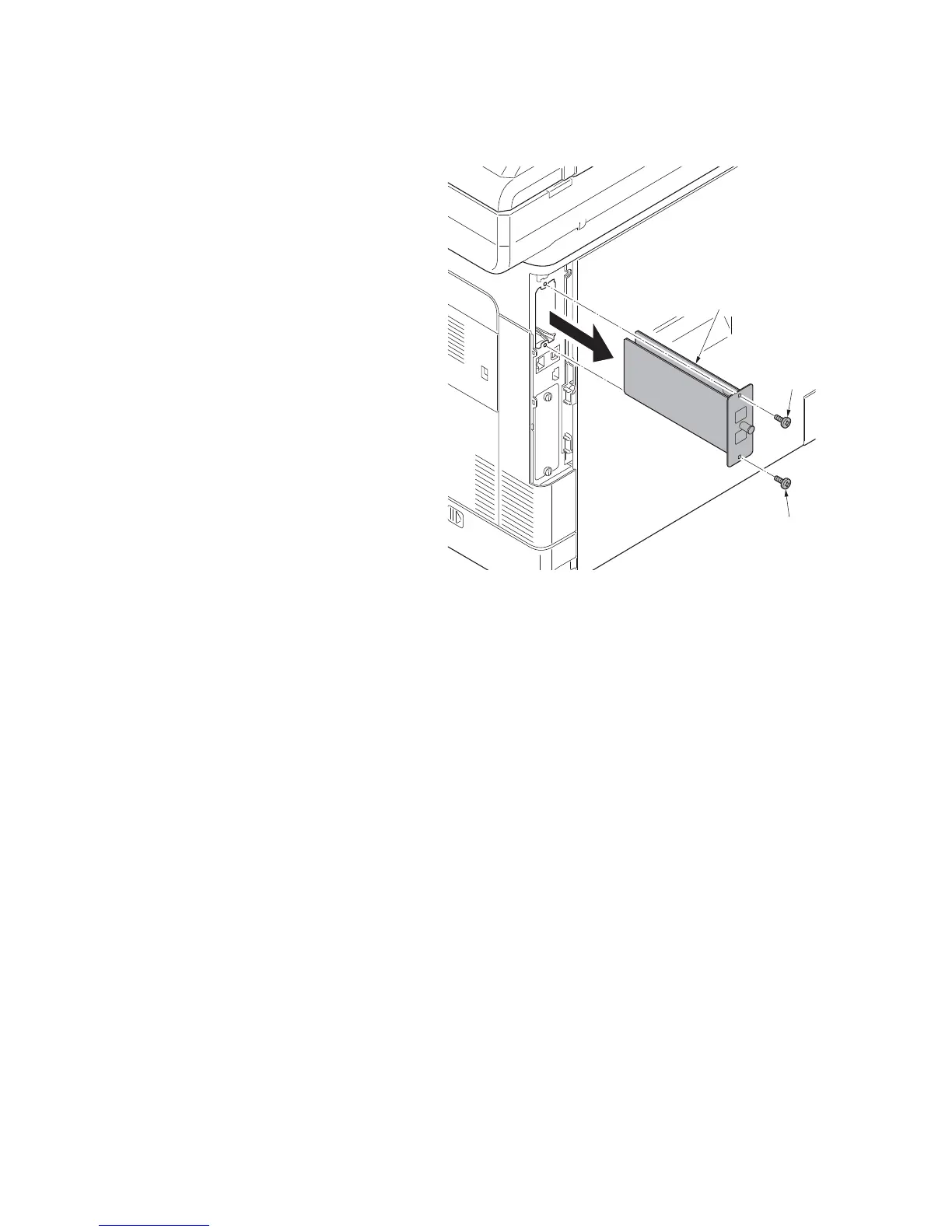

Figure 1-5-54
Screw
FAX control PWB
Screw

Kyocera ECOSYS M6526cidn Specifications

General

Category	All in One Printer
Print Technology	Laser
Monthly Duty Cycle	Up to 50, 000 pages
Copy Resolution	600 x 600 dpi
Standard Paper Capacity	250 sheets
Duplex Printing	Yes
Operating System Compatibility	Windows, Mac OS, Linux
Type	Laser
Functionality	Copier, Printer, Scanner, Fax
Scan Resolution	600 x 600 dpi
Fax Resolution	300 x 300 dpi
Connectivity	USB, Ethernet
Weight	26 kg
