(3) Paper conveying section
The paper conveying section conveys paper to the transfer/separation section as paper feeding from the cas-
sette or MP tray, or as paper refeeding for duplex printing. Paper by feeding is conveyed by the middle roller to
the position where the registration sensor (RS) is turned on, and then sent to the transfer/separation section
by the front registration roller and rear registration roller.

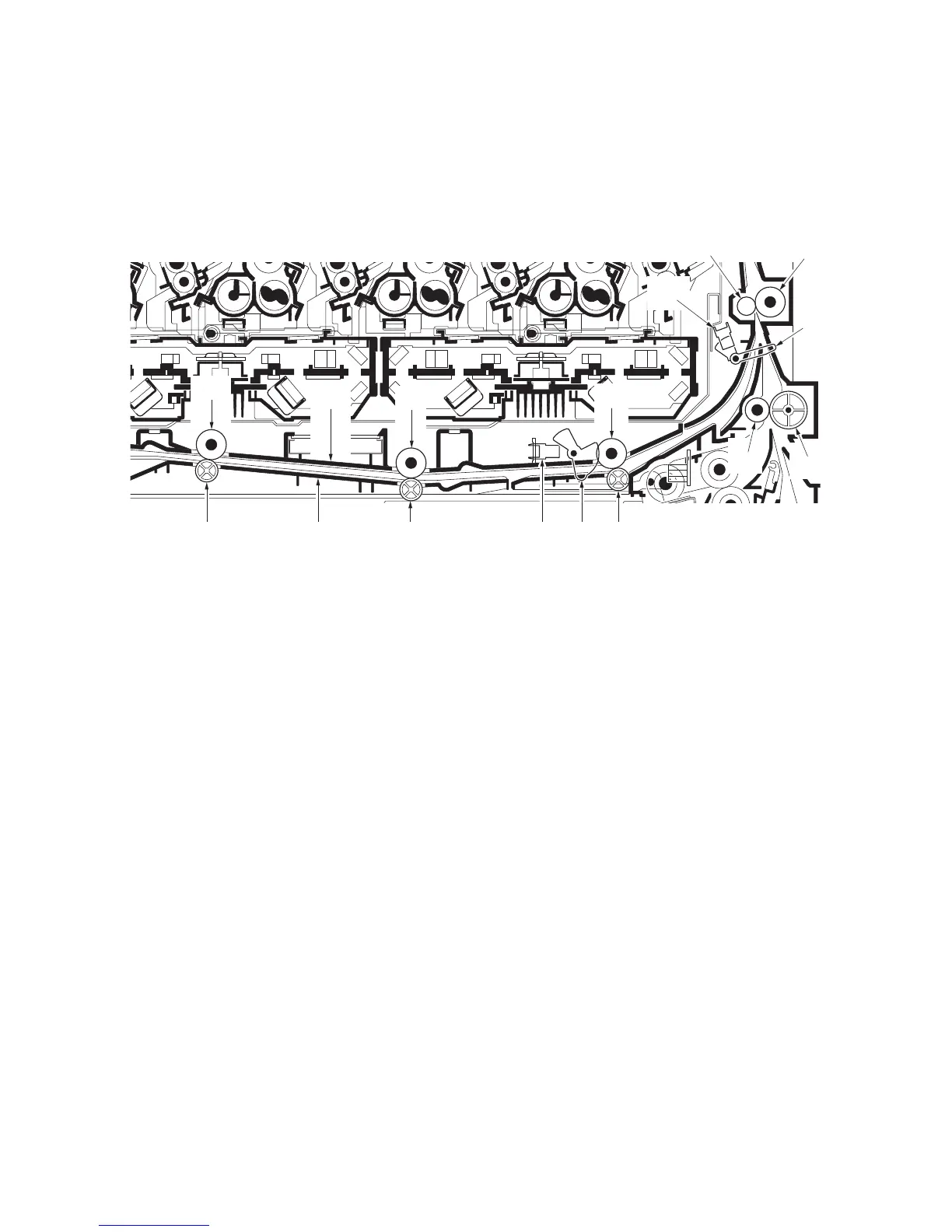

Figure 2-1-5 Paper conveying section
1
1
1
3
5
6
11
12
8
2 4 2 2109
7
1. MPF feed rollers
2. Feed pulleys
3. MPF feed upper guide
4. MPF feed lower guide
5. Middle roller
6. Middle pulley
7. Front registration roller
8. Rear registration roller
9. MP paper conveying sensor
(MPPCS)
10. Actuator
(MP paper conveying sensor)
11. Registration sensor (RS)
12. Actuator (registration sensor)
