Kyocera FS-1350DN Advanced Operation Guide

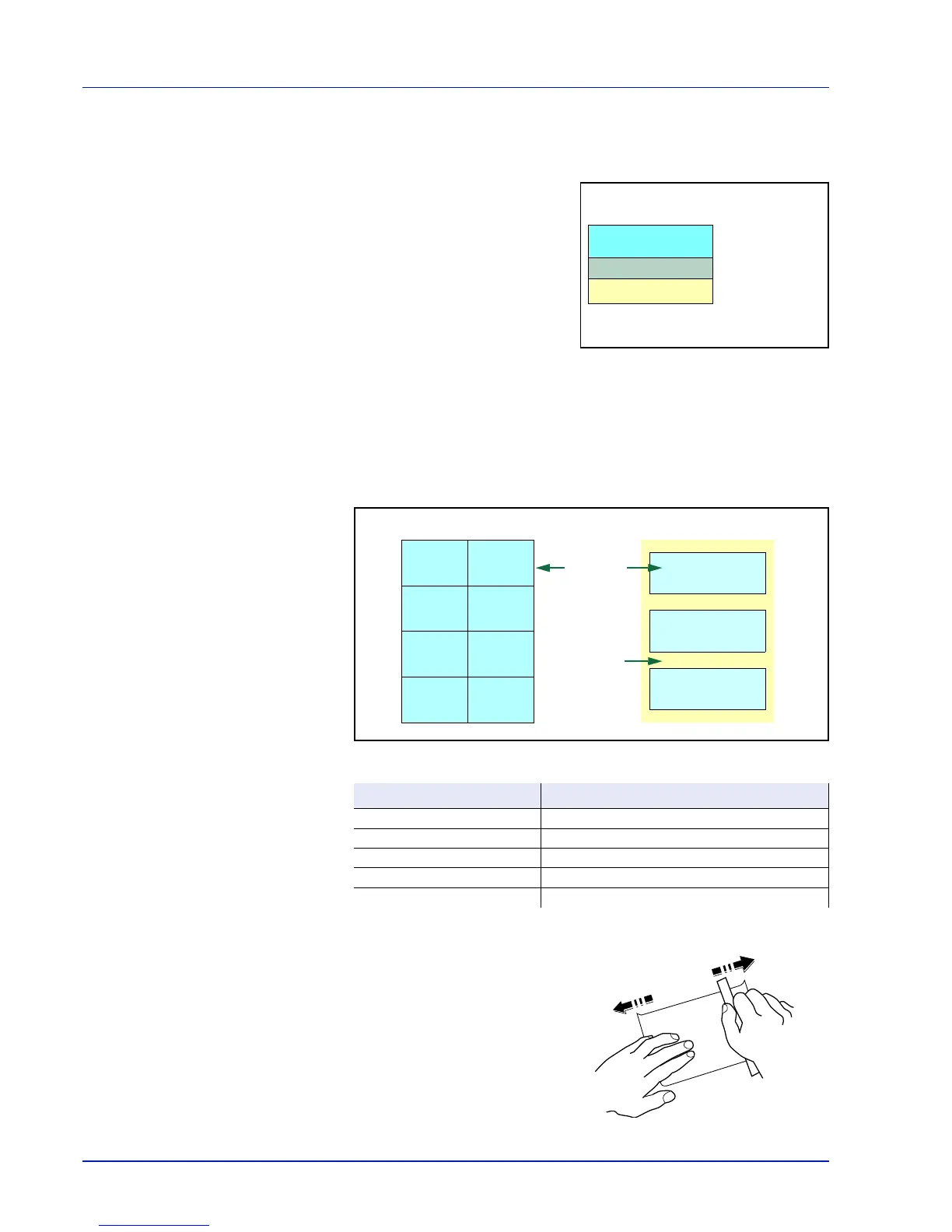

1-8 Paper Handling
The basic rule for printing on adhesive labels is that the adhesive must
never come into contact with any part of the machine. Adhesive paper
sticking to the drum or rollers will damage the machine.
Label paper has a structure
comprising of three layers, as
shown in the diagram. The top
sheet is printed on. The
adhesive layer consists of
pressure-sensitive adhesives.
The carrier sheet (also called
the linear or backing sheet)
holds the labels until used.
Due to the complexity of its
composition, adhesive-
backed label paper is particularly likely to give printing problems.
Adhesive label paper must be entirely covered by its top sheet, with no
spaces between the individual labels. Labels with spaces in between are
liable to peel off, causing serious paper jam problems.
Some label paper is manufactured with an extra margin of top sheet
around the edge. Do not remove the extra top sheet from the carrier
sheet until after printing is finished.
The table below lists the specifications for adhesive label paper.
Postcards
Up to 10 postcards can be
loaded at a time. Fan the
stack of postcards and align
the edges before loading
them in the MP tray. Make
sure the postcards you are
going to set are not curled.
Feeding curled postcards
may cause paper jams.
Top sheet (white
bond paper)
Adhesive
Carrier sheet
Top sheet
UnacceptableAcceptable
Carrier sheet
Item Specification
Weight of top sheet 44 to 74 g/m² (12 to 20 lb/ream)
Composite weight 104 to 151 g/m² (28 to 40 lb/ream)
Thickness of top sheet 0.086 to 0.107 mm (3.9 to 4.2 mils)
Composite thickness 0.115 to 0.145 mm (4.5 to 5.7 mils)
Moisture content 4 to 6 % (composite)

Kyocera FS-1350DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Processor model	PowerPC–440F5
Maximum internal memory	1152 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	54 dB
Power supply type	AC 220 - 240 V, 50/60 Hz
Capacity cartridge	7200 sheets
Standard media sizes	(105 x 148 - 216 x 297 mm)
Power consumption (active)	484 W
Compliance industry standards	TUV/GS, CE
Number of print cartridges	1
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Maximum print size	216 x 356 mm
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Power consumption (standby)	12 W
Power consumption (PowerSave)	7.1 W
Display	LCD

Weight and Dimensions

Dimensions (WxDxH)	375 x 393 x 267 mm
