Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
1-6-6

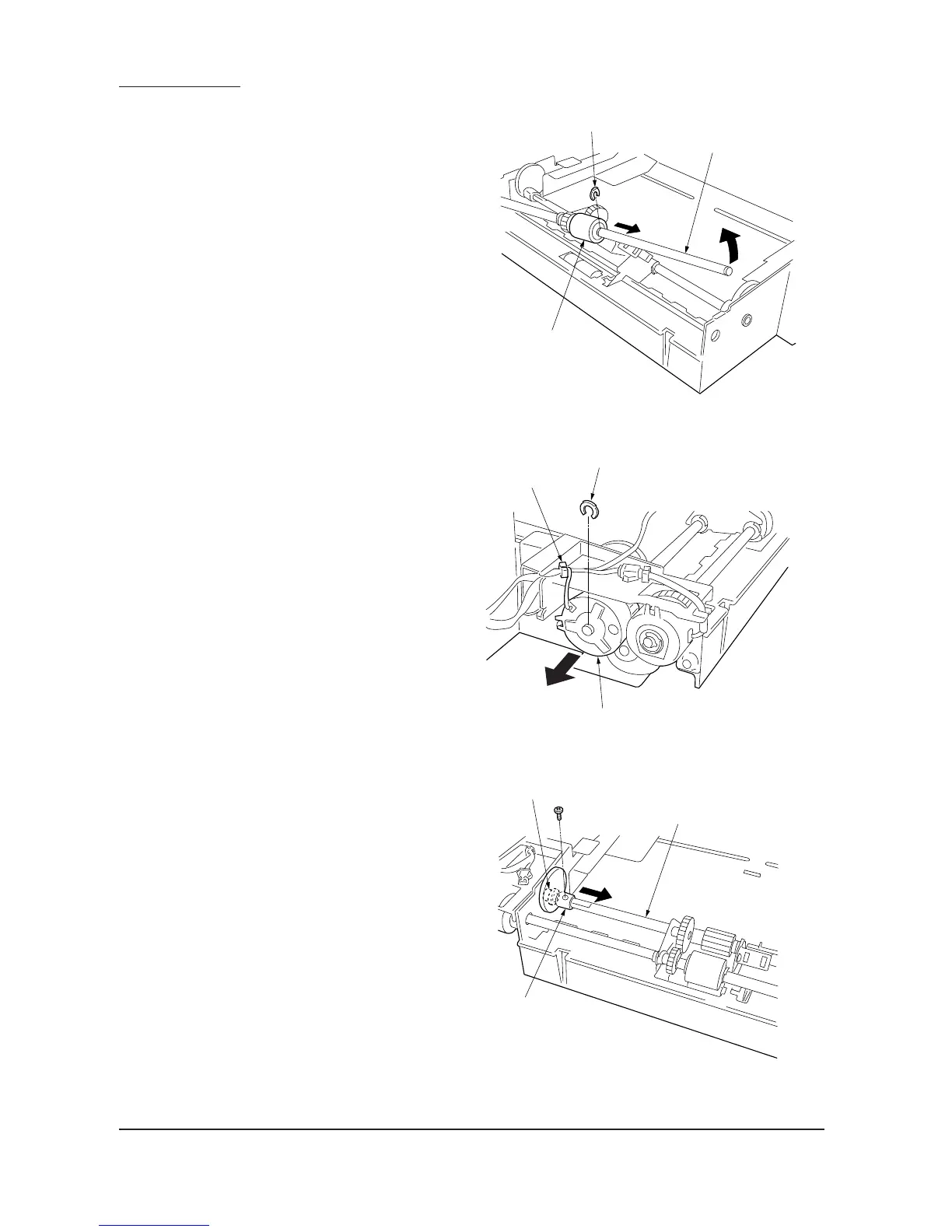

8. Raise the MP paper feed shaft as shown in
the illustration, remove the stop ring, and then
remove the MP paper feed pulley.
Caution:
• When fitting the MP paper feed pulley, keep the
blue end of the paper feed toward the machine
rear.
Figure 1-6-13
• Removing the MP forwarding pulley
9. Remove the wire of the MP paper feed clutch
from the clamp.
10. Remove the stop ring and MP paper feed
clutch.
•When refitting, insert the cutout in the MP
paper feed clutch over the stopper on the
copier.
Figure 1-6-14
11.Remove the screw from the cam at the rear
of the MP forwarding pulley shaft and move
the cam and the bushing toward the inner
side.
Figure 1-6-15
Stop ring
MP paper feed pulley
MP paper feed shaft
MP paper feed clutch
Stop ring
Clamp
Bushing
MP forwarding pulley shaft
Cam

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
