Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
2-1-20

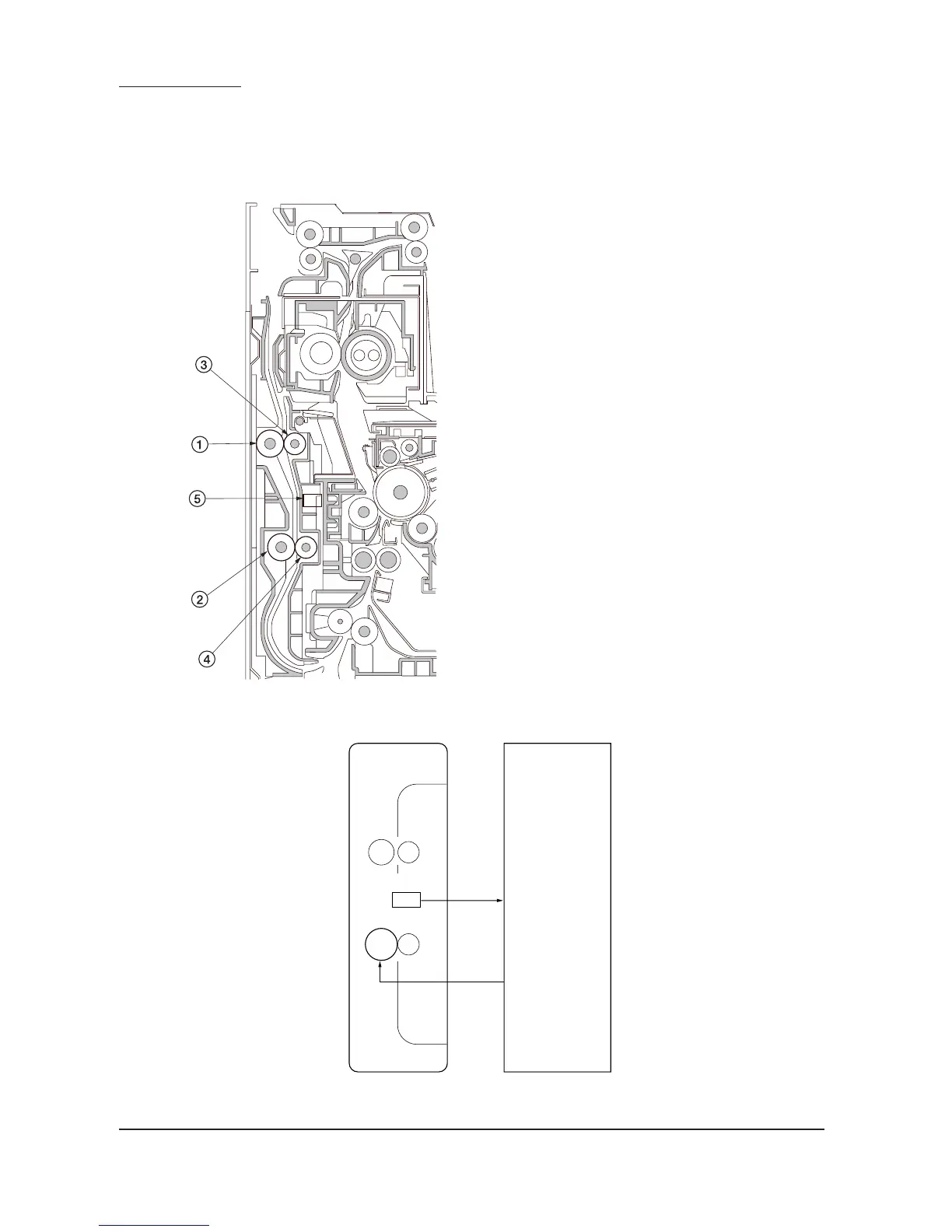

2-1-9 Duplex unit
The duplex unit consists of the components shown in Figure 2-1-24. In duplex mode, after printing on to the reverse face of
the paper, the paper is reversed in the switchback section and conveyed to the duplex unit. The paper is then conveyed to
the printer paper feed section by the upper and lower duplex feed rollers.
YC10-B4
YC10-B2
EPWB
DUPPCSW
DUPFCL
Figure 2-1-24 Duplex unit
1 Upper duplex feed roller
2 Lower duplex feed roller
3 Duplex feed pulley
4 Duplex feed pulley
5 Duplex paper conveying switch (DUPPCSW)
Figure 2-1-25 Duplex unit block diagram

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
