Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
1-6-20
(4) Detaching and refitting the fuser heater M and S
Follow the procedure below to replace the fixing heater M and S.
Procedure
1. Remove the fuser unit (see page 1-6-18).
2. Remove the upper fuser cover (see page 1-6-
18).
3. Remove the screw on the front of the fuser
unit thermostat and two screws on the rear of
the fuser unit.

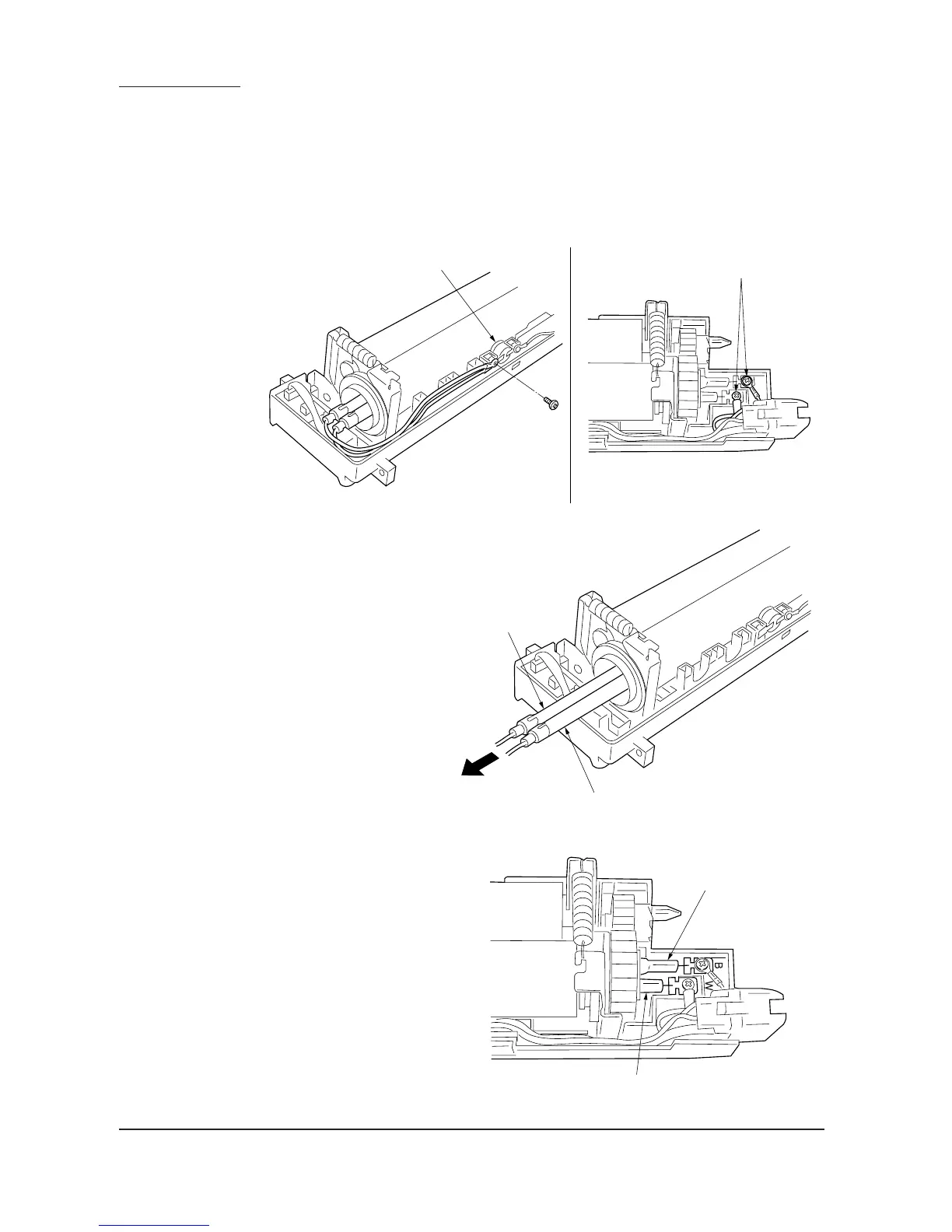

Figure 1-6-41
4. Pull out the fuser heater M and S from the
fuser unit.
Figure 1-6-42
5. Replace the fuser heater M and S, and refit
all the removed parts.
* When refitting the fuser heaters, take care
not to refit fuser heaters M and S to wrong
positions. Refit fuser heater M (black wire) to
the fuser unit housing with mark B and fuser
heater S (white wire) to the housing with mark
W.
Figure 1-6-43
Fuser unit thermostat
Screws
Fuser heater M
Fuser heater S
Fuser heater M
Fuser heater S

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
