Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
2-1-4
84 ms
FSW1
RSW
PFCL-U
FCL1
RCL
DM
Print start
signal
100 ms
Image ready
124/96 ms
27 ms
20 ms

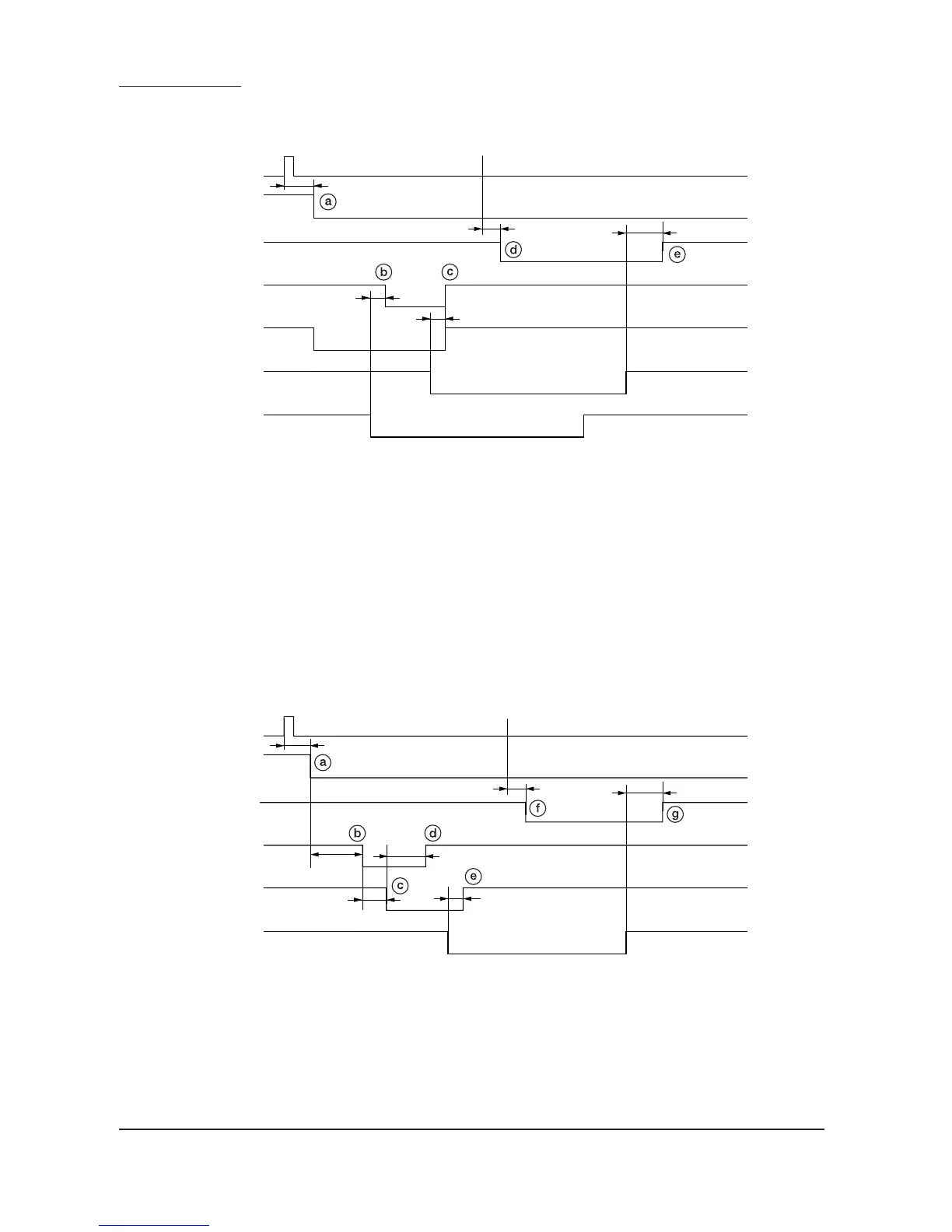

Timing chart 2-1-1 Paper feed from the upper cassette
a: 100 ms after the start key is pressed, the drive motor (DM) turns on to start the drive for the paper feed section. At the
same time, the upper paper feed clutch (PFCL-U) turns on, and the forwarding and paper feed pulleys rotate to start
primary paper feed.
b:20 ms after the leading edge of the paper turns the feed switch 1 (FSW1) on, the feed clutch 1 (FCL1) turns on and
the feed roller 1 rotates.
c:27 ms after the leading edge of the paper turns the registration switch (RSW) on, the upper paper feed clutch (PFCL-
U) and feed clutch 1 (FCL1) turn off.
d:84 ms after image ready signal turns on, the registration clutch (RCL) turns on, and the right registration roller rotates
to start secondary paper feed. At the same time, feed clutch 1 (FCL1) turns on for 30 ms.
e: 124/96 ms (FS-9120DN/9520DN) after the trailing edge of the paper turns the registration switch (RSW) off, the
registration clutch (RCL) turns off.
84 ms
RSW
MPFCL
MPPFCL
RCL
DM
Print start
signal
100 ms
Image ready
124/96 ms
35 ms
300 ms
100 ms
280 ms
Timing chart 2-1-2 Paper feed from the MP tray
a: 100 ms after the start key is pressed, the drive motor (DM) turns on to start the drive for the paper feed section.
b: 300 ms after the drive motor (DM) turns on, the MP paper feed clutch (MPPFCL) turns on.
c: 100 ms after the MP paper feed clutch (MPPFCL) turns on, the MP feed clutch (MPFCL) turns on.
d: 280 ms after the MP feed clutch (MPFCL) turns on, the MP paper feed clutch (MPPFCL) turns off.
e: 35 ms after the registration switch (RSW) turns on, the MP feed clutch (MPFCL) turns off.
f: 84 ms after image ready signal turns on, the registration clutch (RCL) turns on, and the right registration roller rotates
to start secondary paper feed.
g: 124/96 ms (FS-9120DN/9520DN) after the trailing edge of the paper turns the registration switch (RSW) off, the
registration clutch (RCL) turns off.

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
