Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
2-1-14
84 ms
TC REM
ESW
RSW
EM
RCL
154-255 ms
325/260 ms
124/96 ms
375/300 ms
Image ready
Secondary paper
feed start
Secondary paper feed end
SC REM

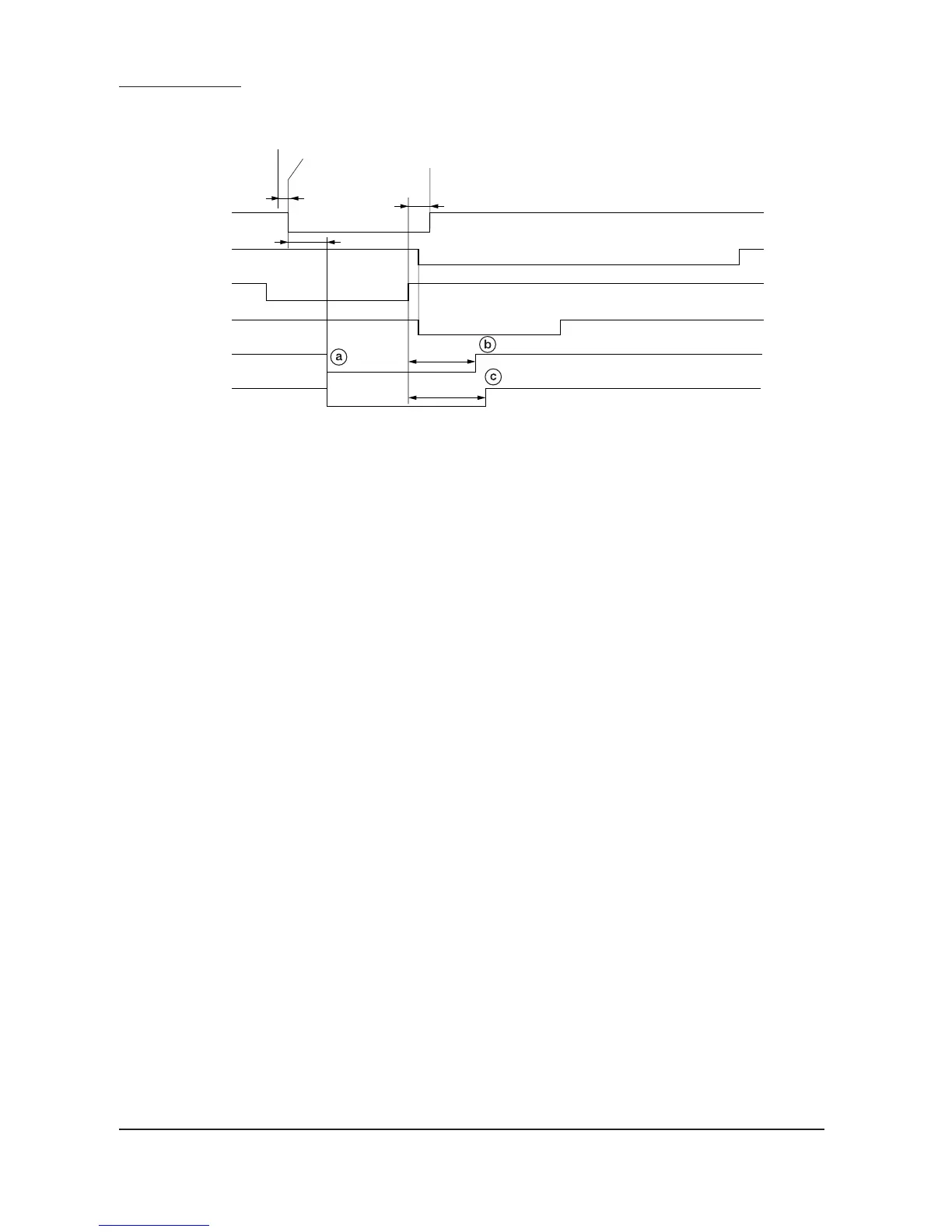

Timing chart 2-1-4 Transfer and separation sections operation
a: 154 to 255 ms after the registration clutch (RCL) turns on to start secondary paper feed, transfer charging (TC REM)
and separation bias (SC REM) starts.
b: 325/260 ms (FS-9120DN/9520DN) after the trailing edge of the paper turns the registration switch (RSW) off, transfer
charging (TC REM) ends.
c: 375/300 ms (FS-9120DN/9520DN) after the trailing edge of the paper turns the registration switch (RSW) off,
separation bias (SC REM) ends.

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
