Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
2-1-17
CFM
(For second speed)
CFM
(For first speed)
PM
TC REM
DB REM
DM
FH-S
FH-M
POWSW
Fuser temperature
130°C/266°F (FS-9120DN)
145°C/293°F (FS-9520DN)
(secondary stabilization)
Fuser temperature
115°C/239°F (FS-9120DN)
120°C/248°F (FS-9520DN)
(primary stabilization)
Printing enabled Aging end
300 ms
100 ms
500 ms
300 ms
1 s
10 s
8 s
30 s
Half speed

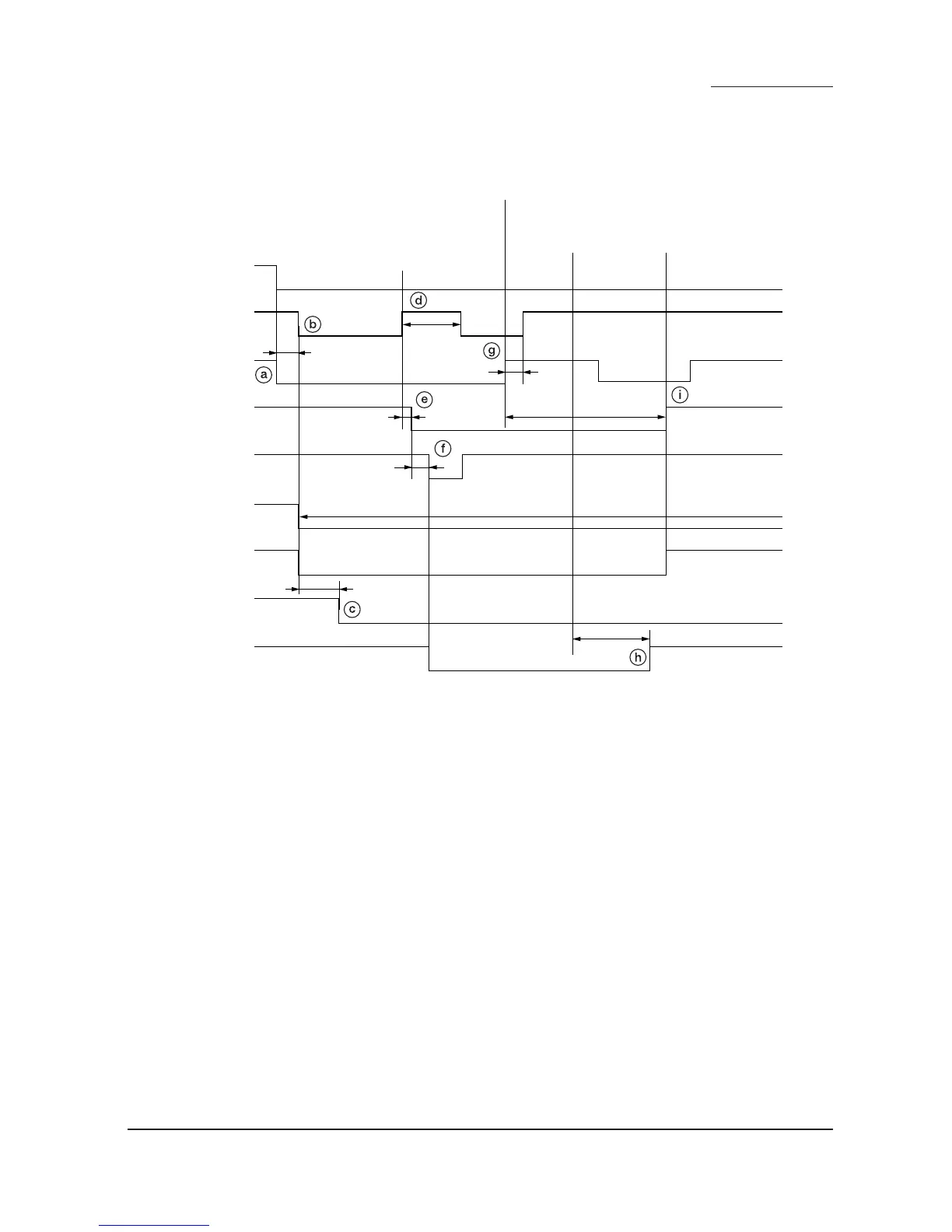

Timing chart 2-1-5 Fuser section operation
a: The moment when the power switch (POWSW) is turned on, the fuser heater S (FH-S) is turned on and heating of
the heat roller starts.
b: 300 ms after the power switch (POWSW) is turned on, the fuser heater M (FH-M) and the cooling fan motor (CFM)
are turned on.
c:1 s after fuser heater M (FH-M) turns on, the polygon motor (PM) of the laser scanner unit turns on.
d:When the fuser temperature reaches 115°C/239°F (FS-9120DN)/120°C/248°F (FS-9520DN), the printer enters
primary stabilization, and fuser heater M (FH-M) turns off temporarily and turns on again after 8 s.
e: 100 ms after the primary stabilization, the drive motor (DM) turns on. Also the cooling fan motor (for second speed)
switches to full speed rotation.
f: 500 ms after the drive motor (DM) turns on, the developing bias (DB REM) turns on and at the same time transfer
charging (TC REM) starts.
g:When the fuser temperature reaches 130°C/266°F (FS-9120DN)/145°C/293°F (FS-9520DN), the printer enters
secondary stabilization. Fuser heaters M and S (FH-M and FH-S) are turned on and off to keep the fuser temperature
at 130°C/266°F (FS-9120DN)/145°C/293°F (FS-9520DN) and aging starts.
h: 10 s after printing is enabled, transfer charging (TC REM) ends.
i: 30 s after the secondary stabilization, the drive motor (DM) turns off and the aging ends.

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
