Kyocera FS-9120DN Service Manual

FS-9120DN/9520DN
2-2-5
12 13
2
1
3
4
5
6
7
9
10
11
14
8
15
;
Machine front
Machine inside
Machine rear
(4) Other electrical components

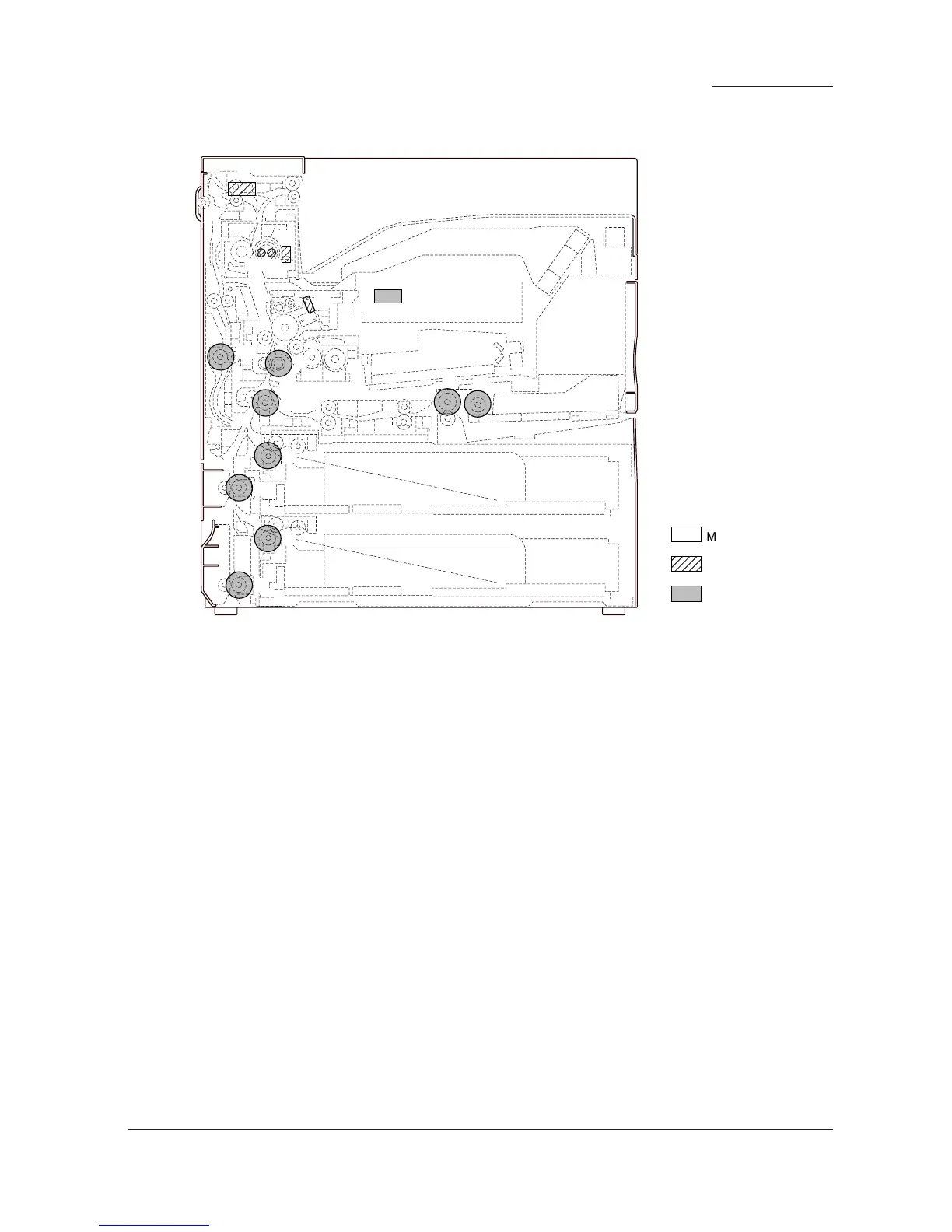

Figure 2-2-4 Other electrical components
1. Upper paper feed clutch (PFCL-U) .............. Primary paper feed from the upper cassette.
2. Lower paper feed clutch (PFCL-L) ............... Primary paper feed from the lower cassette.
3. Feed clutch 1 (FCL1) ................................... Controls the drive of feed roller.
4. Feed clutch 2 (FCL2) ................................... Controls the drive of feed roller.
5. Feed clutch 3 (FCL3) ................................... Controls the drive of feed roller.
6. MP paper feed clutch (MPPFCL) ................. Primary paper feed from the MP tray.
7. MP feed clutch (MPFCL) .............................. Controls the drive of MP feed roller.
8. Registration clutch (RCL) ............................. Secondary paper feed.
9. Feedshift solenoid (FSSOL) ........................ Operates the feedshift guide.
10. Toner feed solenoid (TNFSOL) .................... Replenishes toner.
11.Cleaning lamp (CL) ...................................... Removes residual charge from the drum surface.
12. Fuser heater M (FH-M) ................................ Heats the heat roller.
13. Fuser heater S (FH-S) ................................. Heats the heat roller.
14. Fuser unit thermostat (FTS) ......................... Prevents overheating in the fuser section.
15. Duplex paper feed clutch (DUPFCL) ........... Controls the drive of the duplex feed roller.

Kyocera FS-9120DN Specifications

General

I/O ports	1 x Fast Ethernet 10/100 Base TX; 1 x High speed bi-directional parallel (IEEE 1284); 1 x USB 2.0 (High-Speed); 1 x KUIO LV Option-Interface slot.
Custom media sizes	88 x 148 mm - 297 x 450 mm
Power requirements	AC 220/240 V 50/60 Hz
Standard input trays	2 x 500
Recommended media weight	60 - 105 g/m²
Power consumption (active)	920 W
Maximum print size	297 x 420 mm
Maximum ISO A-series paper size	A3
Color	No
Print technology	Laser
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Memory slots	2
Storage media	HDD
Processor model	Power PC 750CX
Built-in processor	Yes
Maximum internal memory	544 MB
Internal storage capacity	20 GB
Sound power level (standby)	39 dB
Sound pressure level (printing)	53 dB
Total input capacity	1200 sheets
Maximum input capacity	4200 sheets
Paper tray 2 input capacity	200 sheets
Maximum duty cycle	55000 pages per month
Sustainability certificates	ENERGY STAR
Power consumption (standby)	160 W
Power consumption (PowerSave)	12 W

Weight and Dimensions

Dimensions (WxDxH)	585 x 639 x 615 mm
