FS-9120DN/9520DN
1-1-7

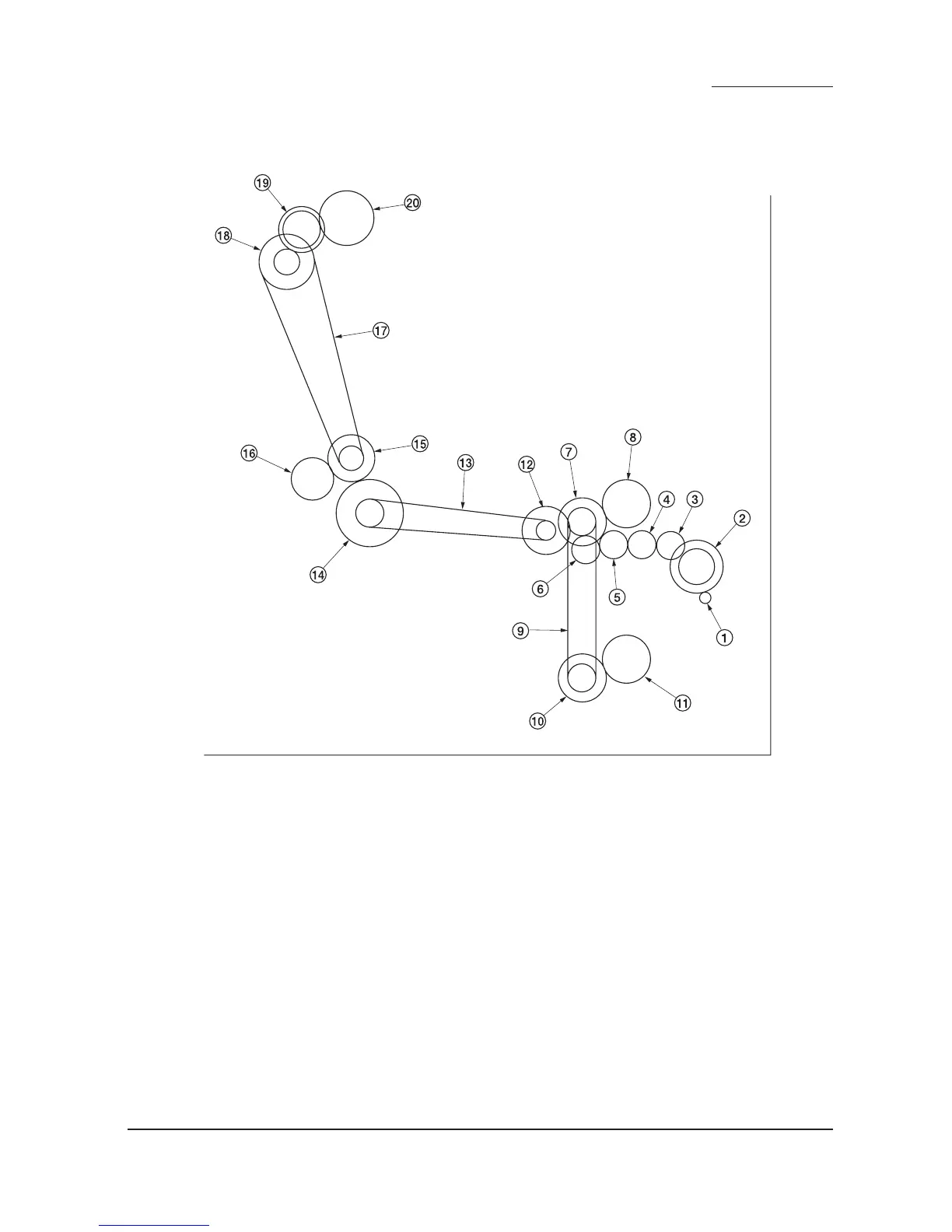

(2) Drive system 2 (paper feed motor drive train)
1 Paper feed motor gear
2 Gear Z76H/Z35S
3 Feed gear Z25
4 Feed gear Z25
5 Feed gear Z25
6 Feed gear Z25
7 Gear Z41S/Z24S/P30
8 Upper paper feed clutch gear
9 Paper feed drive belt
0 Gear Z41S/Z24S/P30
! Lower paper feed clutch gear
@ Gear Z41S/P15
# Bypass drive belt
$ Gear Z60S/P20
% Gear Z41S/P18
^ Gear Z40S/Z32S
& Container drive belt
* Gear Z24S/P40
( Gear Z40S/Z25S
) Container gear
Figure 1-1-5
As viewed from machine rear
