Maintenance 3-9

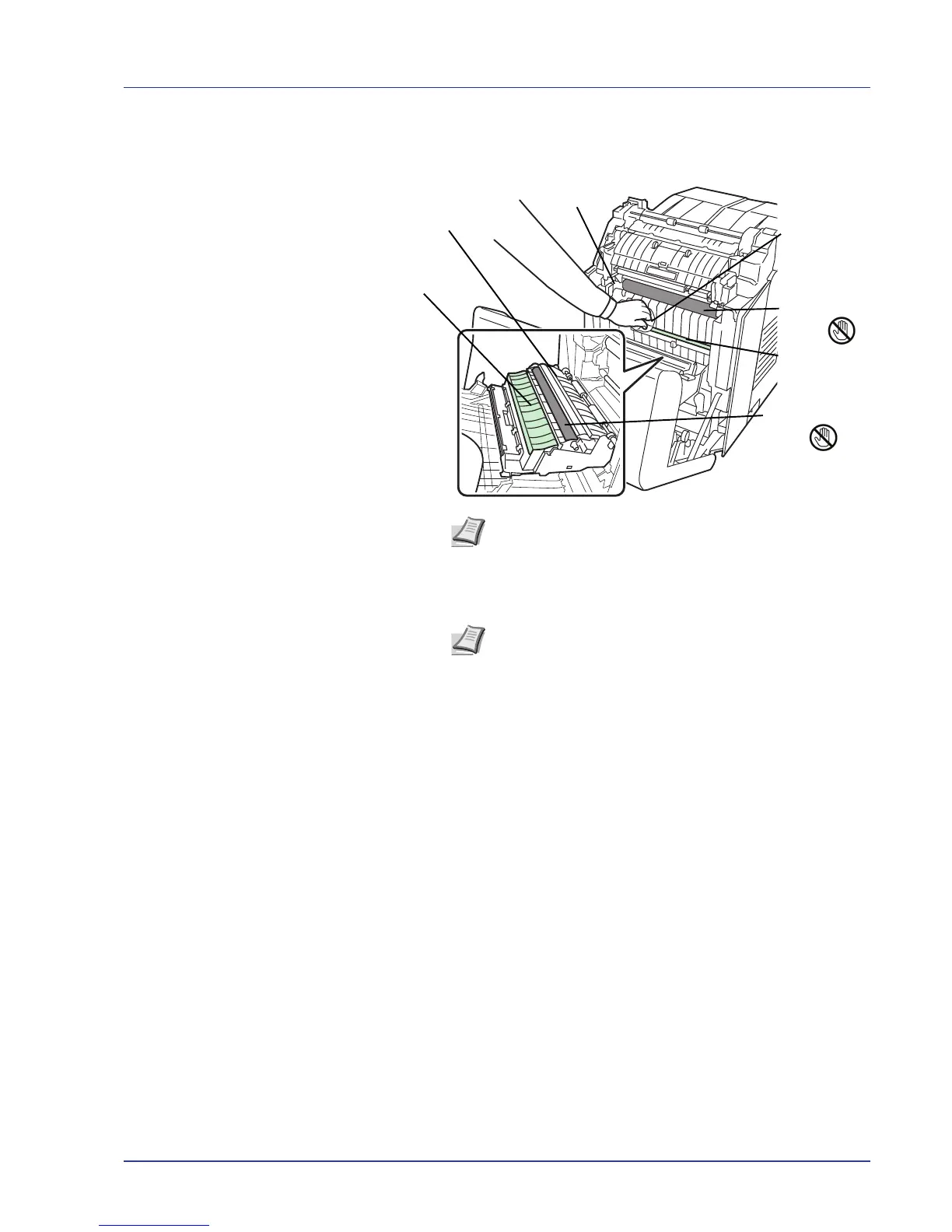

3 Wipe away the paper dust on the registration roller and the paper

ramp using the cleaning cloth.

4 Push the front cover back in completely.

Paper Ramp

Transfer Belt

(Black)

Cleaning Cloth

Registration

Roller (Metal)

Transfer Roller

(Black)

Duplex Unit

Paper Transfer Unit

Note Be careful not to touch the black transfer roller and

black transfer belt during cleaning as this may adversely

affect print quality.

Note Take care not to get your hands caught in the front

cover when you close it.
