2HL/2HM/2HN
1-5-34

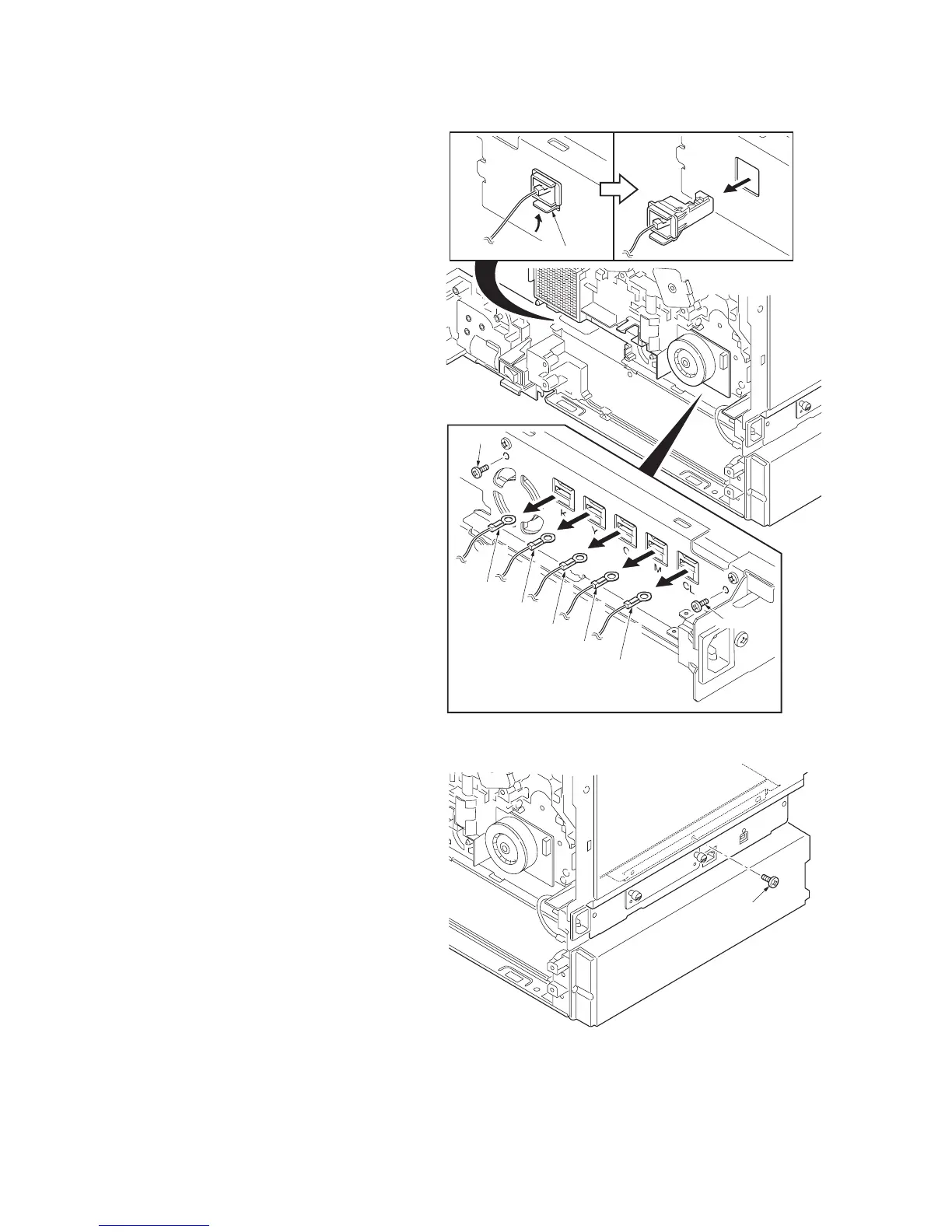

7. Remove six terminals.
8. Remove the TC high voltage bracket.
9. Remove the two screws.
Figure 1-5-47
10. Remove the screw.
Figure 1-5-48
Screw
Screw
TC high voltage bracket
Terminal
Terminal
Terminal
Terminal
Terminal
Screw
