Kyocera FS-C5100DN

2HL/2HM/2HN
2-1-10
2-1-3 Expose section
(1) Laser scanner unit
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

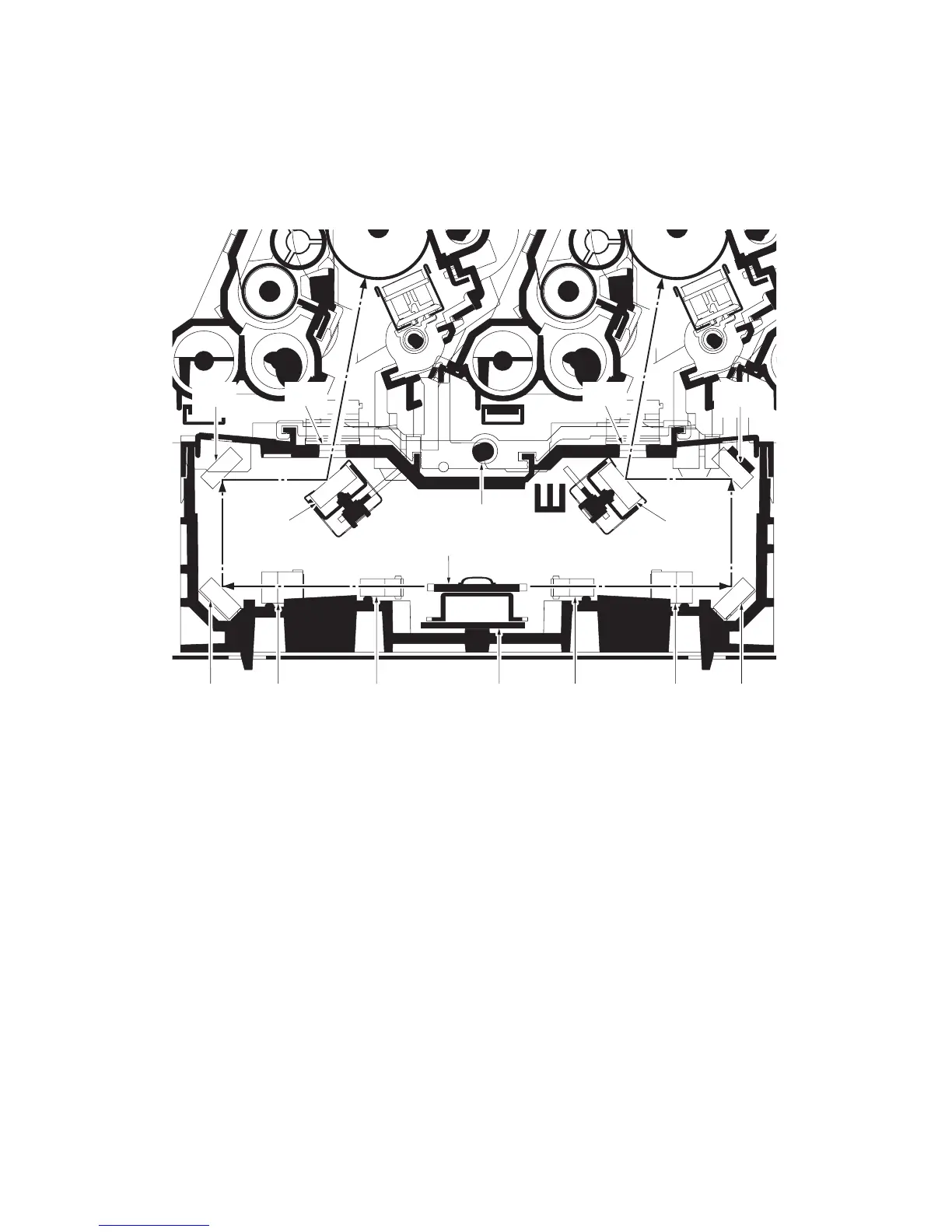

Figure 2-1-11 Laser scanner unit
1
9
2
3 3 4 545
6
68
7
8
7
(1) Polygon motor
(2) Polygon mirror
(3) F-θ lens A
(4) F-θ lens B
(5) Mirror A
(6) Mirror B
(7) Mirror C
(8) LSU dust shield glass
(9) LSU spiral
