Kyocera FS-C5100DN Service Manual

2HL/2HM/2HN
1-1-8
21/23 ppm (250-sheet) model

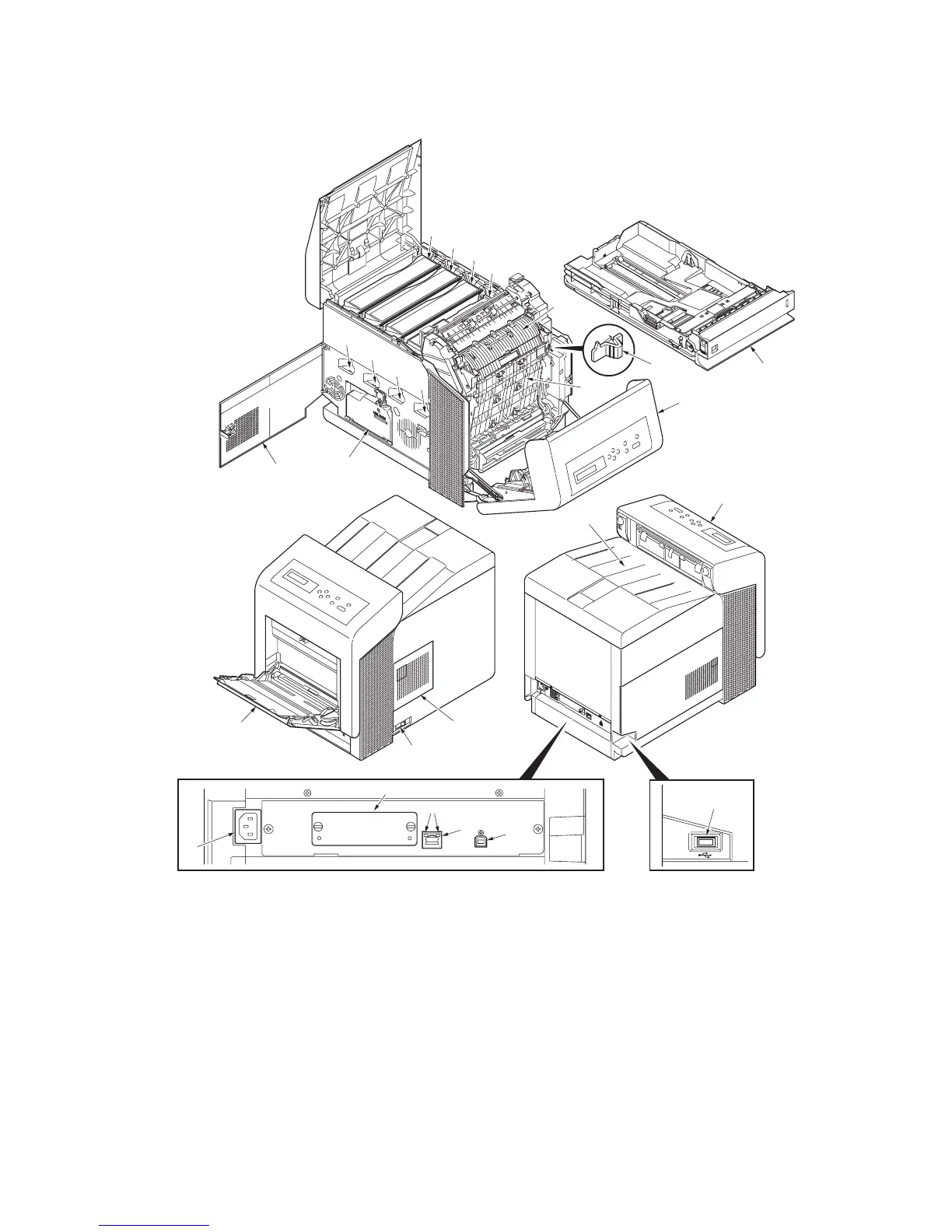

Figure 1-1-2
9
10
11
12
13
14
15
21
17
16
18
19
20
3
4
22
5
6
7
8
8
8
8
7
1
2
1. Operation panel
2. Top cover (Top tray)
3. MP tray
4. Cassette
5. Power switch
6. Left cover
7. Waste toner box
8. Main charger unit
9. Toner container M
10. Toner container C
11. Toner container Y
12. Toner container K
13. Duplex unit B
14. Fuser cover A
15. Envelope switch
16. USB interface
17. AC inlet
18. USB memory slot
19. Network interface
20. Network indicator
21. Optional interface slot
22. Right cover
