Kyocera FS-C5100DN - Page 84

2HL/2HM/2HN
1-5-4
4. Open the top cover.
5. Release the five hooks and then remove the
left rear cover.

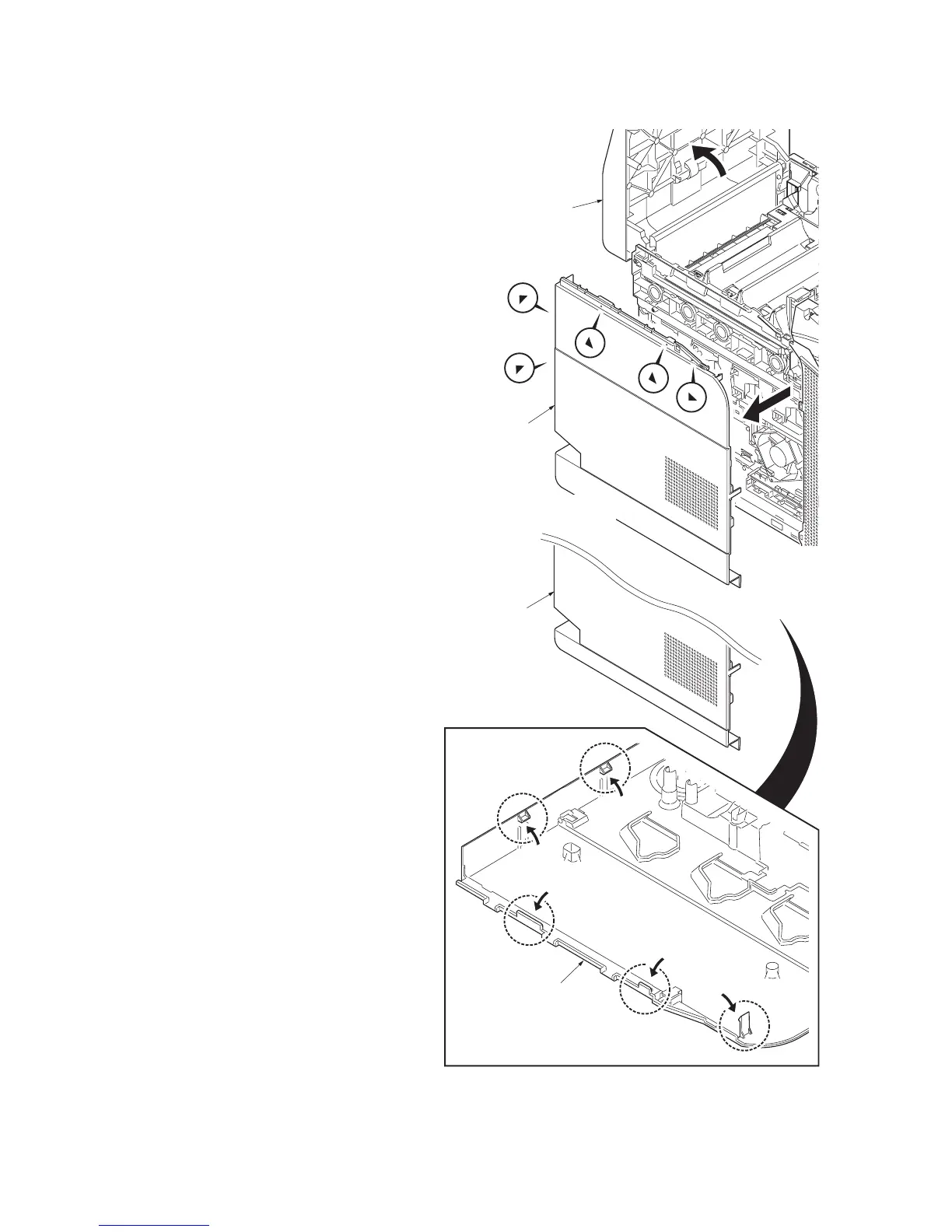

Figure 1-5-4
Hooks
Hooks
Left rear cover
Left rear cover
Left rear cover
Top cover
21/23 ppm (250-sheet) model
26/28 ppm (500-sheet) model
21/23 ppm (500-sheet) model
