2HL/2HM/2HN
1-5-5
6. Open the front cover.
7. Remove the screw and then remove the left
upper cover.
8. Slide the left front cover upward and then
remove it.

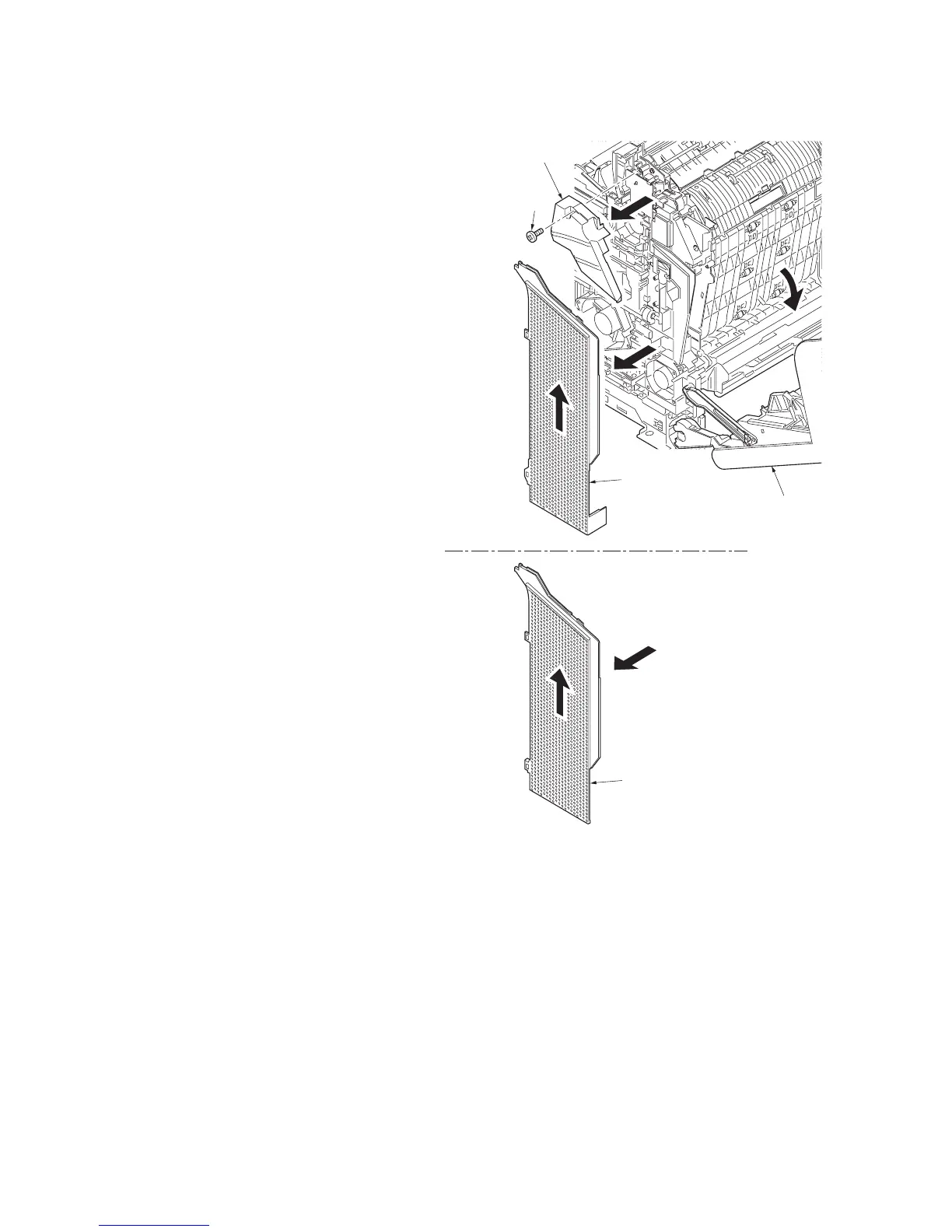

Figure 1-5-5
Screw
Left front cover
Left front cover
Front cover
Left upper cover
26/28 ppm (500-sheet) model
21/23 ppm (500-sheet) model
21/23 ppm (250-sheet) model
