Kyocera FS-C5100DN

2HL/2HM/2HN
1-5-3
1-5-2 Outer covers
(1) Detaching and refitting the left rear cover, left upper cover and left front cover
Procedure
1. Open the left cover.
2. Remove the waste toner box.
3. Remove the screw.

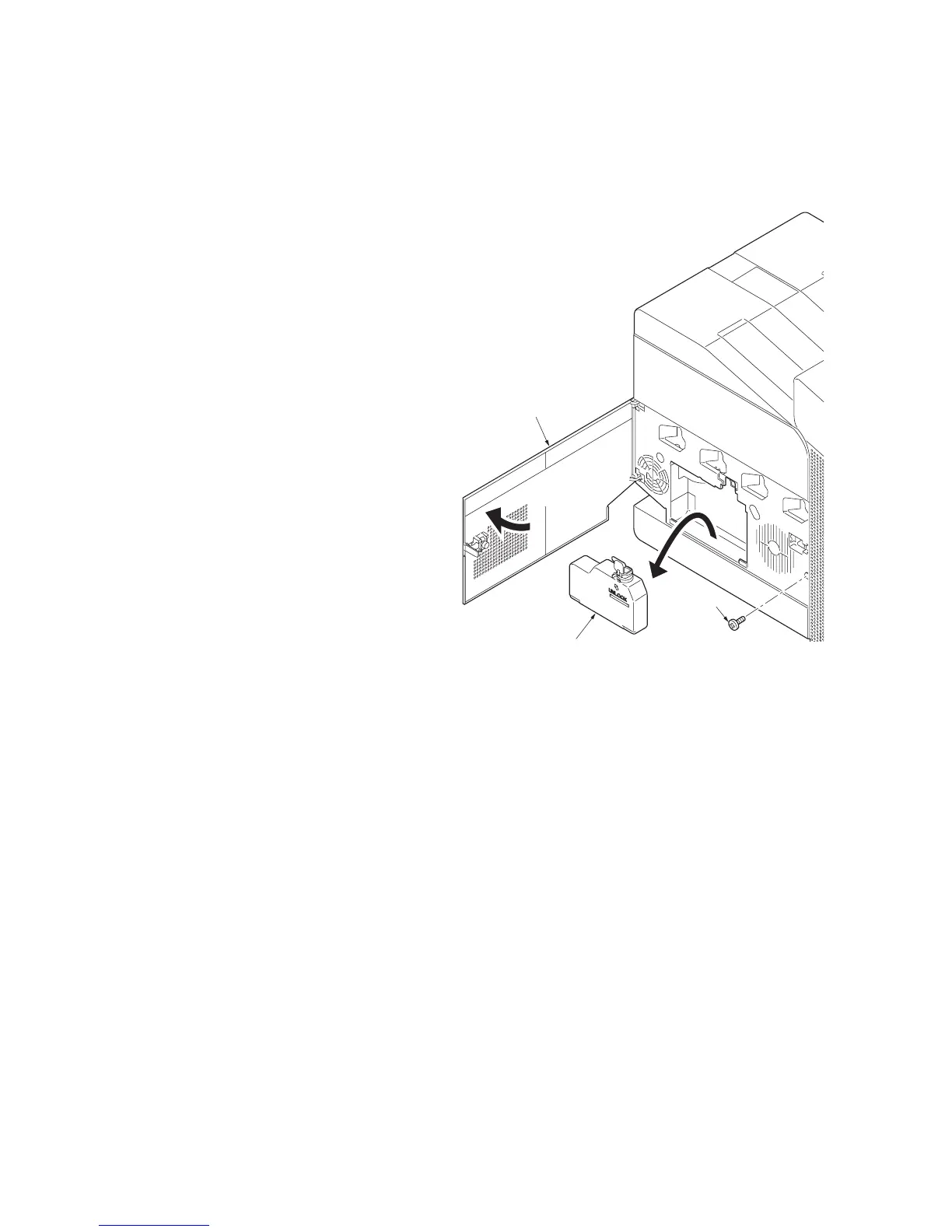

Figure 1-5-3
Left cover
Waste toner box
Screw
