Kyocera FS-C5100DN Service Manual

2HL/2HM/2HN
1-5-15
(2) Detaching and refitting the main charger unit
Procedure
1. Open the left cover.
2. Remove the main charger unit (M,C,Y,K).
3. Check or replace the main charger unit and
refit all the removed parts.

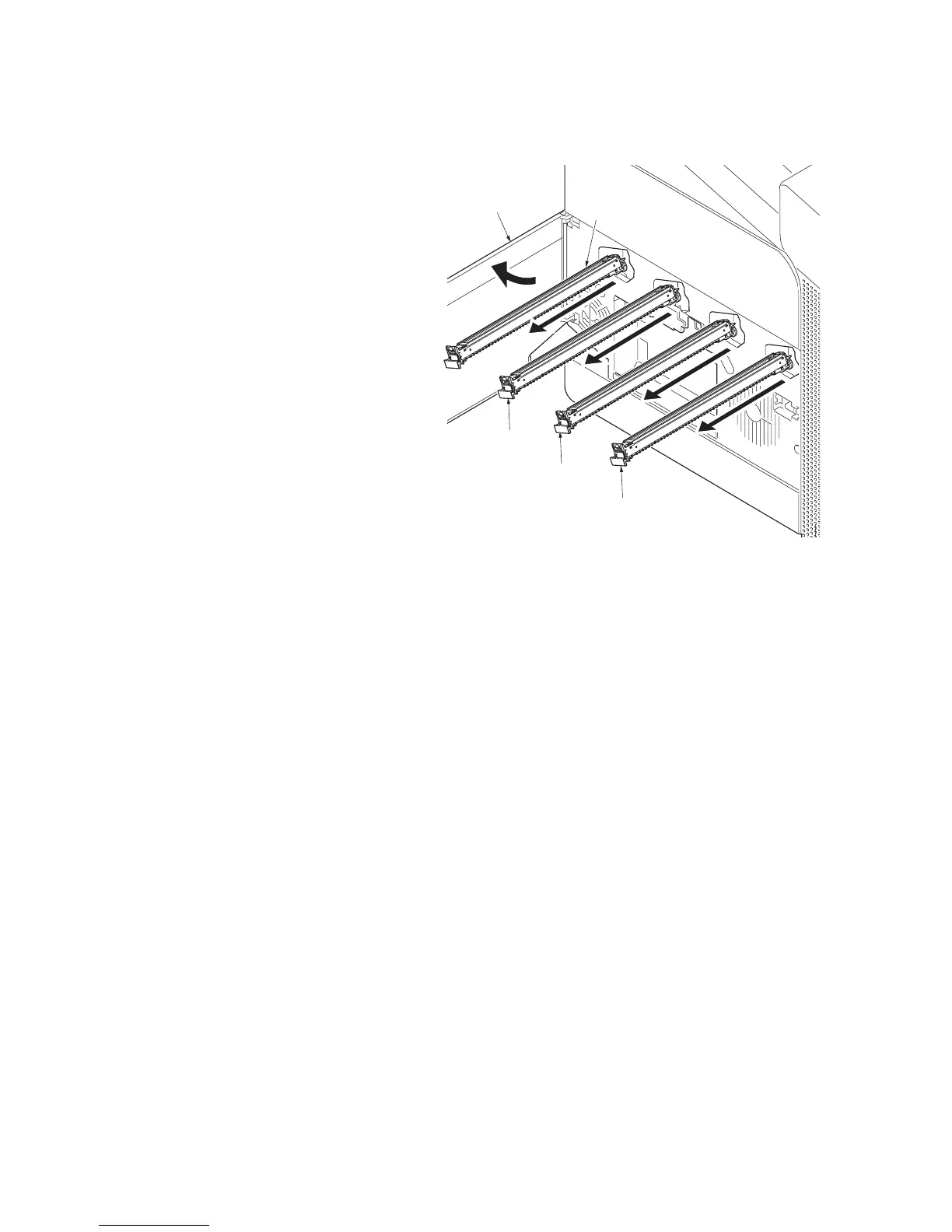

Figure 1-5-16
Left side cover
Main charger
unit K
Main charger
unit Y
Main charger
unit C
Main charger
unit M
