Kyocera FS FS-9530DN - Components at the Front of the Printer

Machine Parts
1-2 OPERATION GUIDE

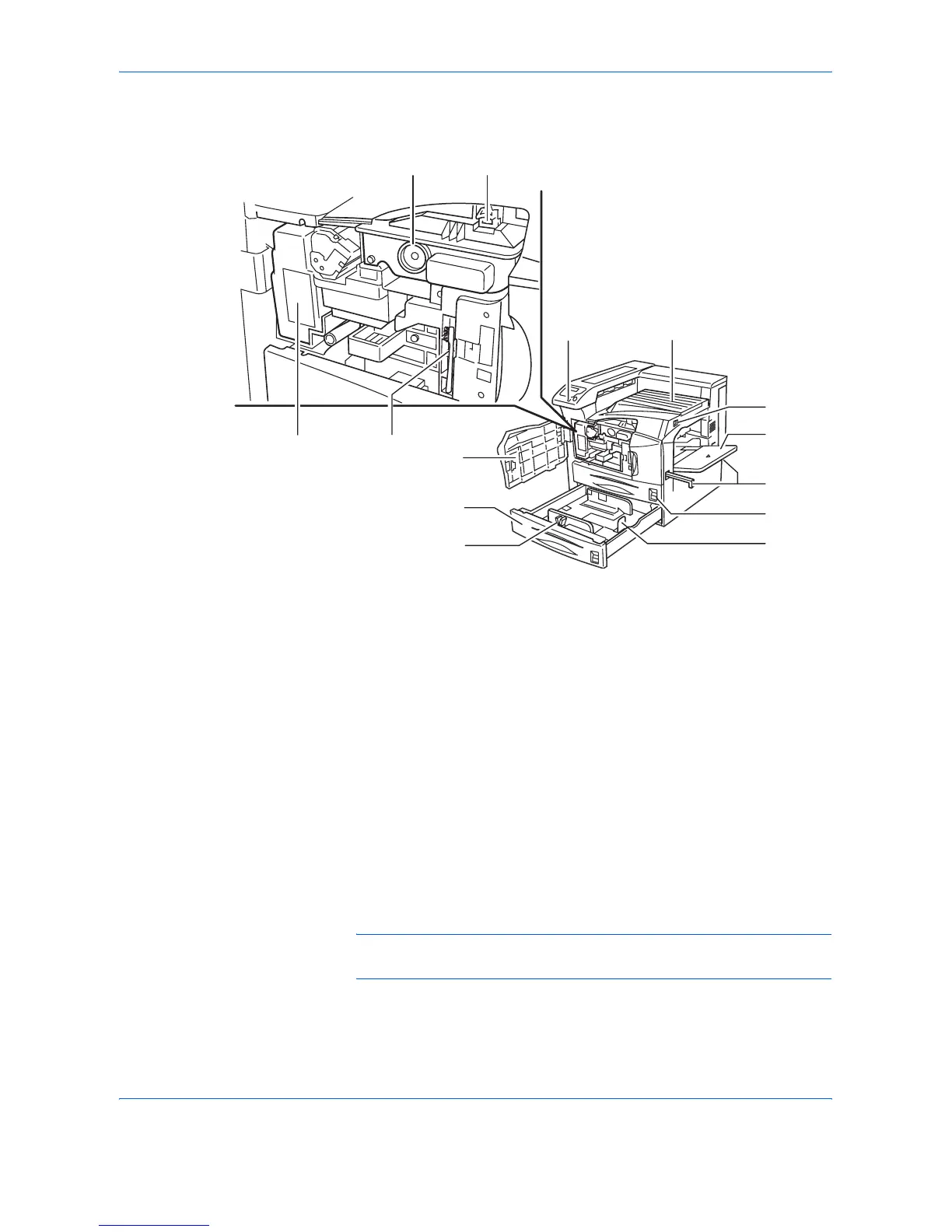

Components at the Front of the Printer
1 Operation Panel
2Front Cover
3 Paper Cassette 2
4 Paper Guide
5 Paper Stopper
6 Paper Cassette 1
7 Handles for Transport
8 MP (Multi-Purpose) Tray
9 Main Switch
10 Top Tray
11 Toner Container
12 Toner Container Release Lever
13 Waste Toner Box
14 Cleaning Brush
IMPORTANT: After turning the printer off, please wait at least five seconds
before turning it on again.
