3-177
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
121

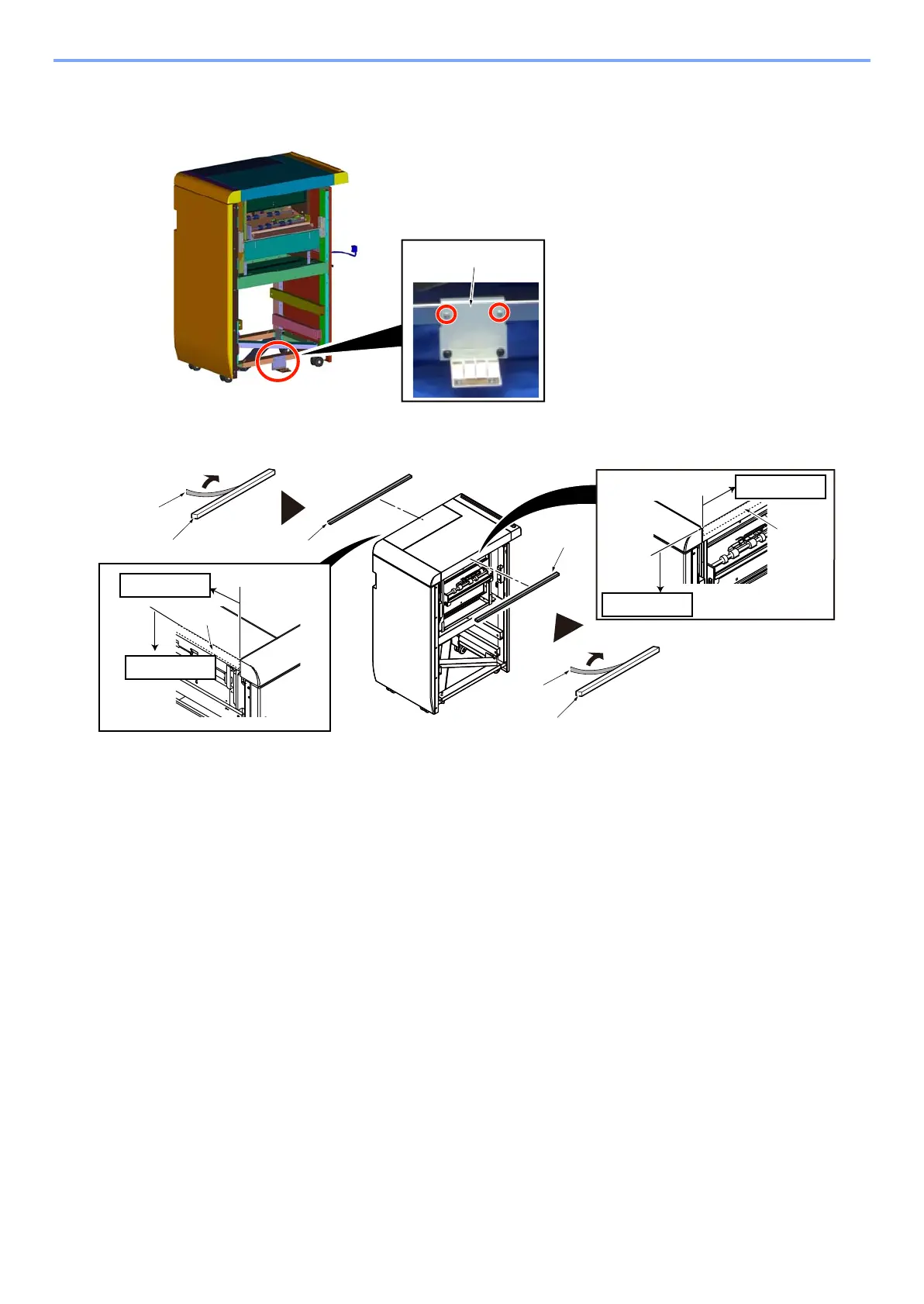

Ground plate assemble [A] (Screw x2: M3x8).
122
Peel off the release paper [B] on sponges [A] and put in on dashed line [C][D].
[A]
[A]
[B]
[A]
[B]
0 to 5mm
0 to 5mm
[A]
0 to 5mm
0 to 5mm
[A]
[C]
[D]
