Kyocera PH-7D - Page 259

3-181
Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]

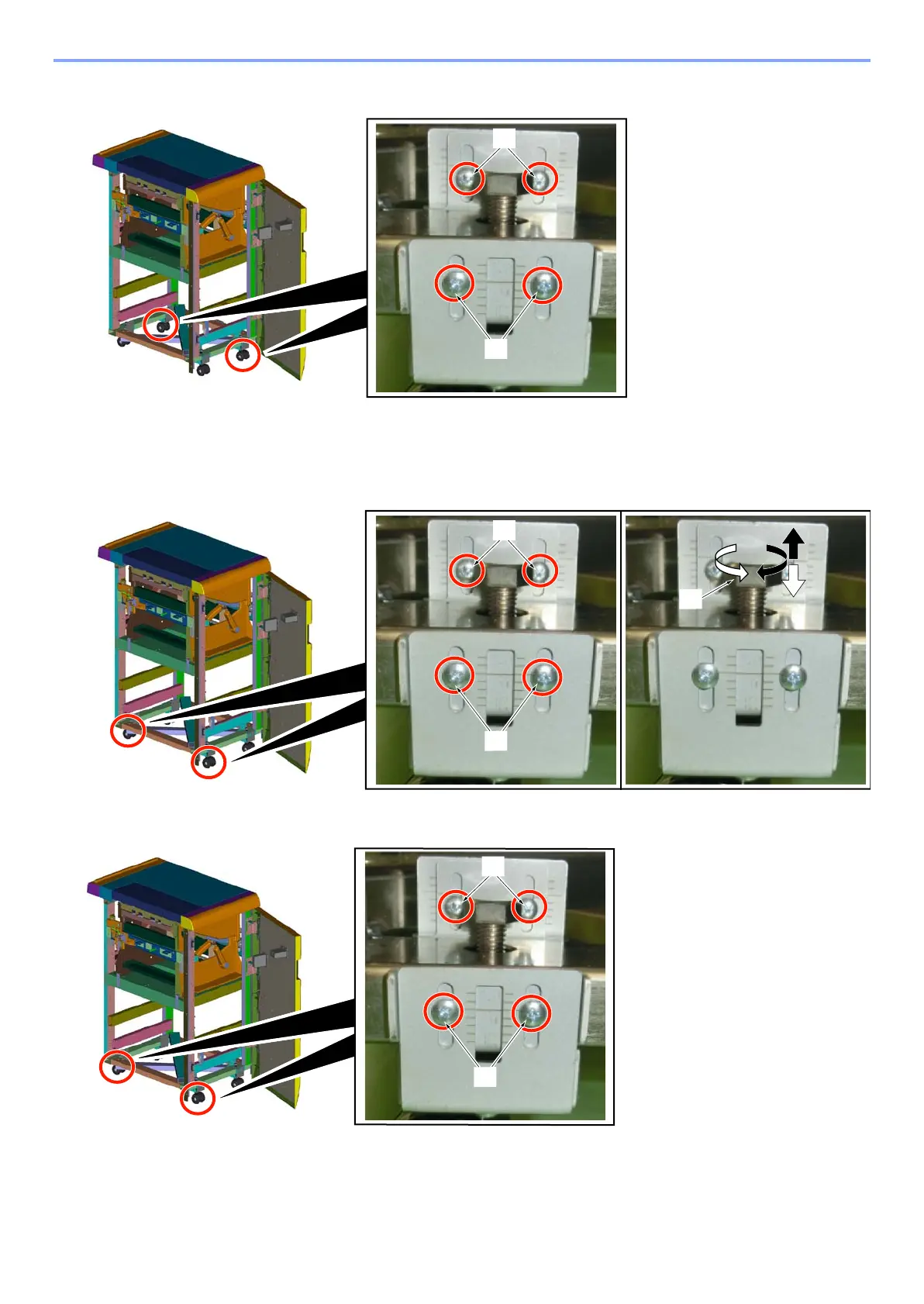

2 Secure 8 screws [A] on the right front and rear.
128
Adjust the level.
1 Loosen 8 screws [A] on the left front and rear. Turning the bolt [B] clockwise makes the distance [E] in step 121
shorter and counterclockwise makes it longer
2 Secure 8 screws [A] on the left front and rear.
[A]
[A]
[A]
[A]
[B]
[A]
[A]
