チェーンの 調 整
Adjustmentofachain
リアハブトーイン の 調 整
Adjustmentforreartoe

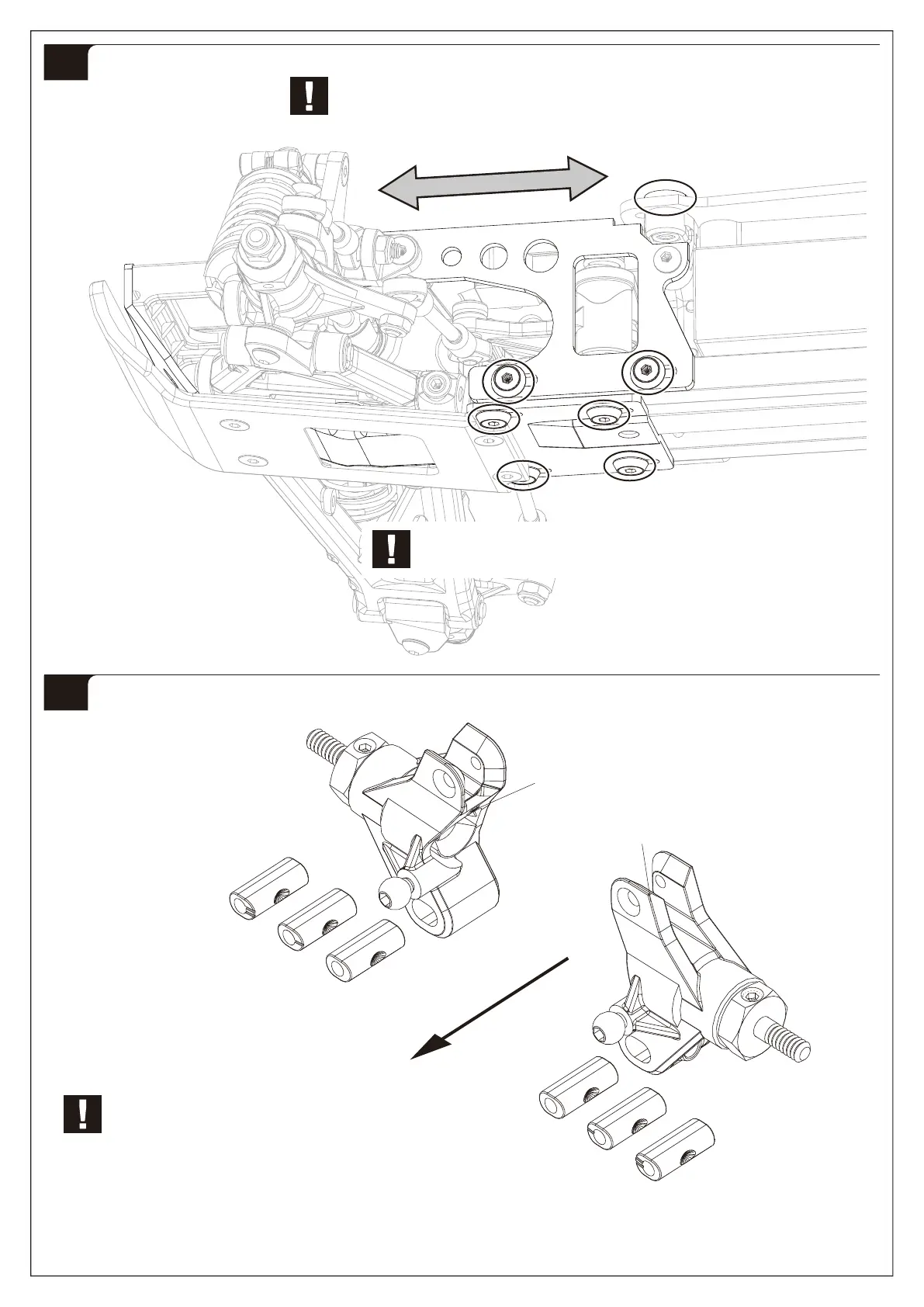

図のように合計12本ンのネジを緩めチェーンの張りを調整します。
Totalof12screwsloosenasshowninthefigureandadjusttensionofachain.
調整範囲を超えた場合1コマチェーンを詰めて下さい。
Whenexceedinganadjustmentarea,pleasetakeoffonechain.
R
Front
L
+2
。
+2
。
+1
。
+1
。
0
0
*図のようにマークがフロント内側にセット
0ラインなし、+1度ライン1本、+2度ライン2本(標準)
*Marksetsitinsidethefrontasshowninthefigure.
0digNoline,+1dig1line,+2dig2line(STD)
*
*
*
*
*
*
(標準)
(Standerd)
(標準)
(Standerd)
