3.2 Connection to LA4 / LA4X
Maximum number of enclosures per LA4 / LA4X
One ARCS
®
WIDE/FOCUS or one SB18m can be connected to each output channel on the LA4 /
Therefore, a single LA4 / LA4X amplified controller can drive up to:
• 4 × ARCS
®
WIDE/FOCUS or
• 4 × SB18m or
• 3 × ARCS
®
WIDE/FOCUS and 1 × SB18m.
Connect the reversed subwoofer(s) to OUT 1 to use the cardioid preset.
8 Ω for 1 enclosure.
Option A
Use SP cables (SP.7, SP5, SP10 or SP25) to connect first enclosures to the four LA4 / LA4X output channels.

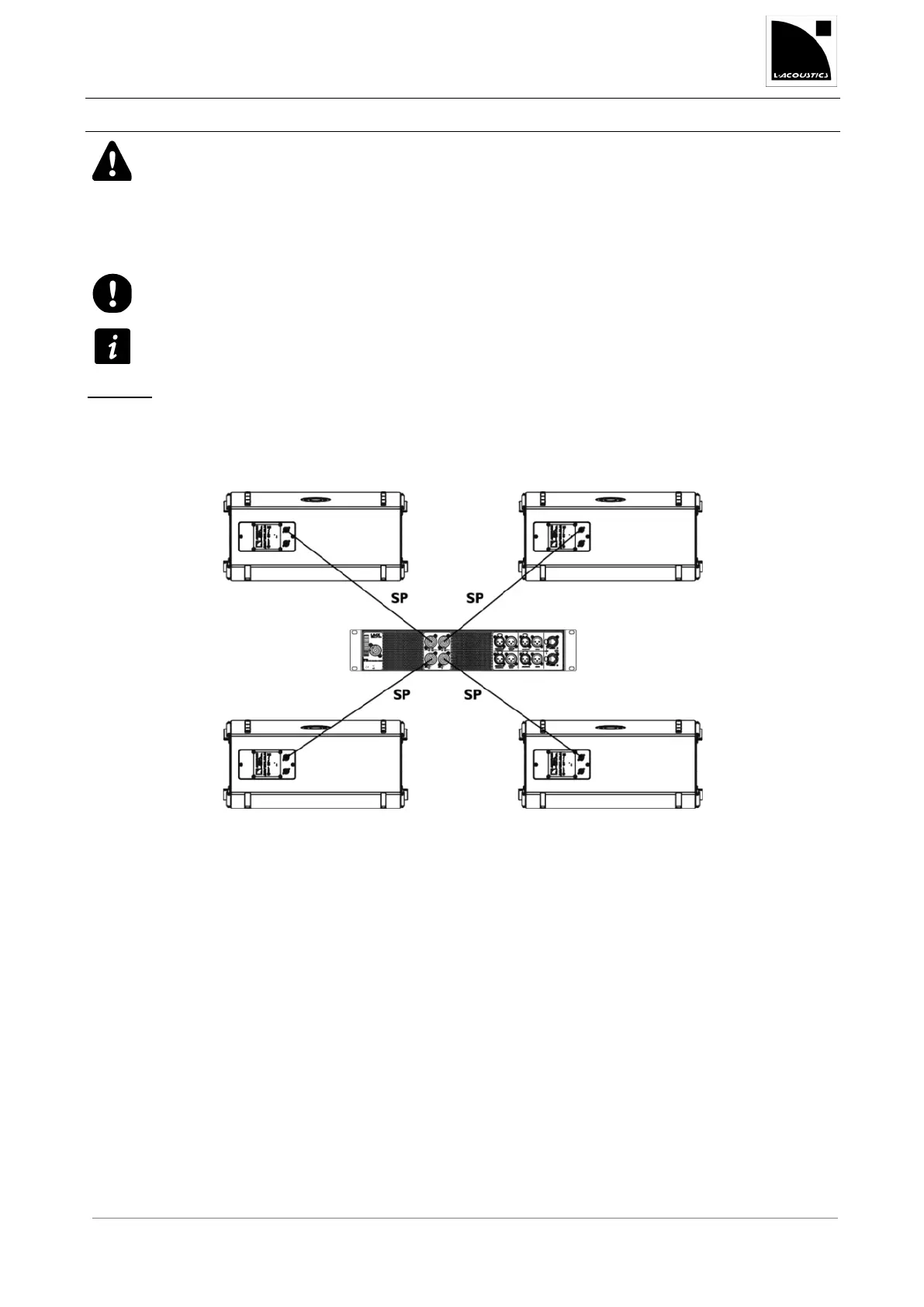

LA4 / LA4X option A maximum configuration with ARCS
®
WIDE/FOCUS
To Next Page
