L-Acoustics ARCS WIDE User Manual

ARCS
®
WIDE SYSTEM
ARCS
®
FOCUS SYSTEM
user manual
VERSION 4.0
ARCSWIFO_UM_EN_4.0
www.l- acoustics.com
18
Option B
 Connect an SP cable (SP.7, SP5, SP10 or SP25) to the OUT1/OUT2 and OUT3/OUT4 LA8 SpeakON
®
connectors.
 Use a CC4FP adapter to connect an SP-YI cable and separate the two output channels.
 If necessary, use SP cables to connect additional similar enclosures in parallel with the first ones.

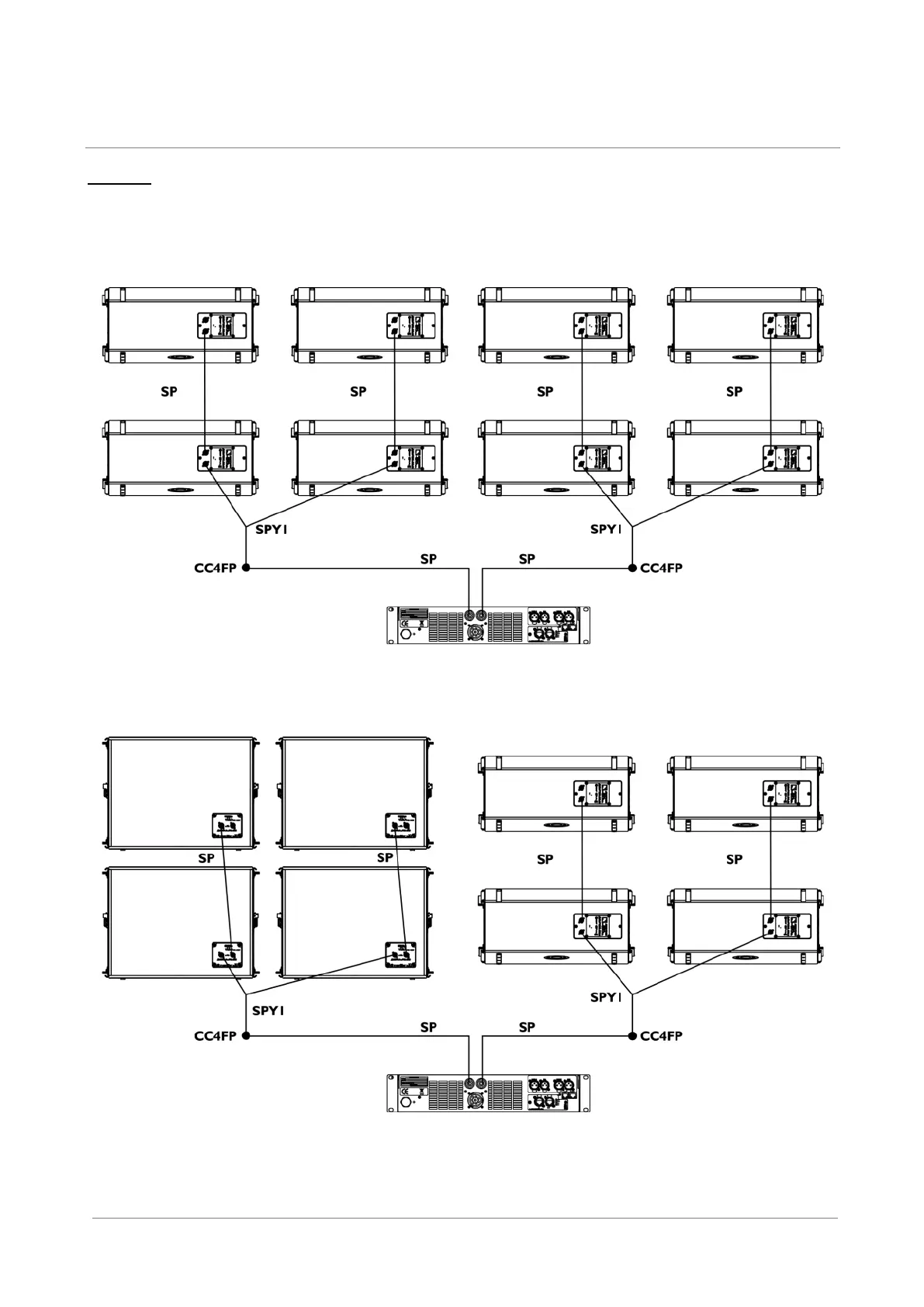

LA8 option B maximum configuration with ARCS
®
WIDE/FOCUS
LA8 option B with ARCS
®
WIDE/FOCUS + SB18m
