Loudspeaker connection

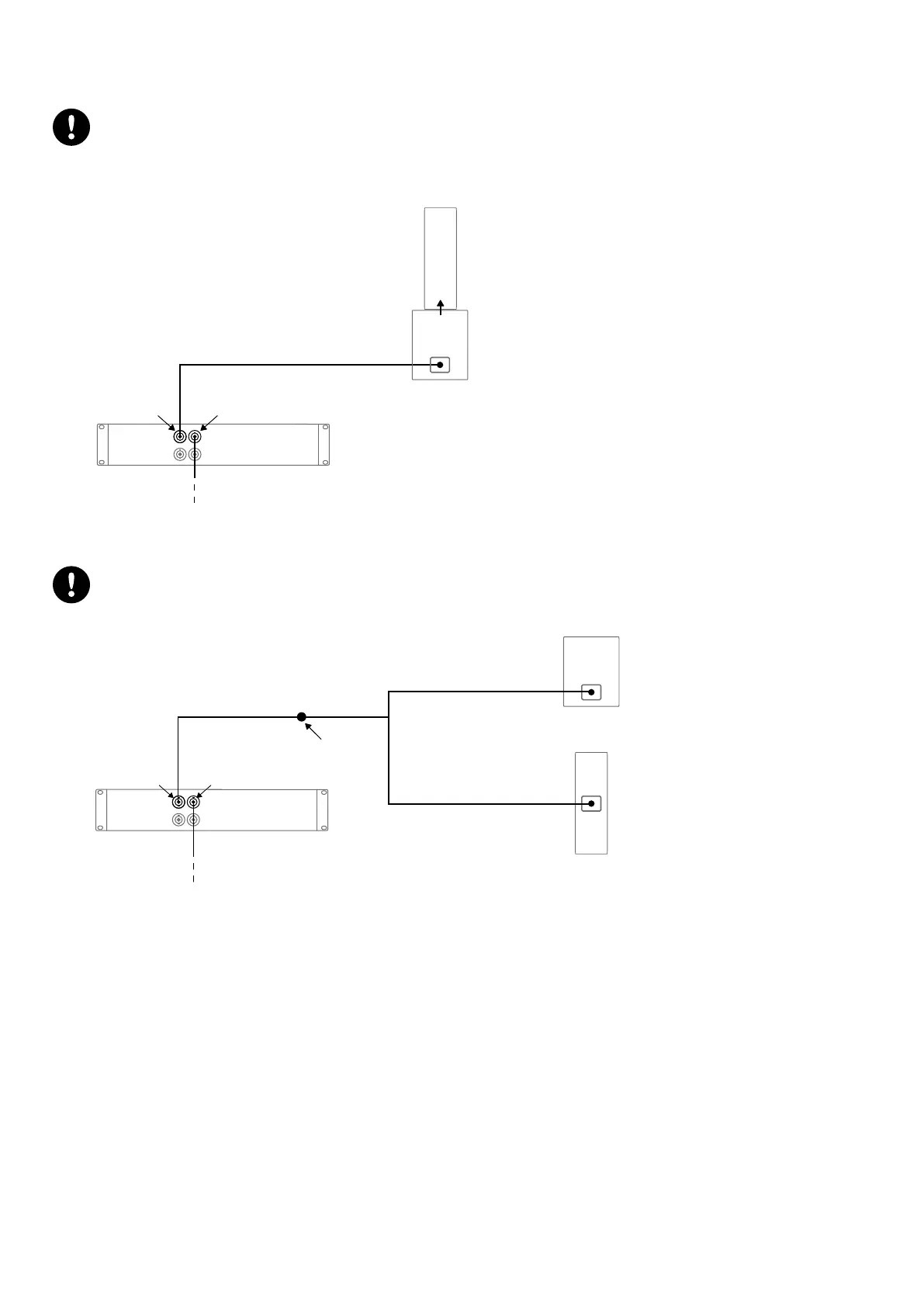

Connecting hybrid configurations
Use [SYVA LOW SYVA] with these cabling schemes.
SP on speakON output
SP
OUT1/OUT2 OUT3/OUT4
same as OUT1/OUT2
Autoconnect
SP and SP-Y1 on speakON output
Risk of damaging the Syva drivers.
Connect CH(1) to Syva Low and CH(2) to Syva.
OUT1/OUT2
OUT3/OUT4
same as OUT1/OUT2
SP SP-Y1
CC4FP
CH(1) (OUT1)
CH(2) (OUT2)
17 Syva user manual (EN) version 1.0
