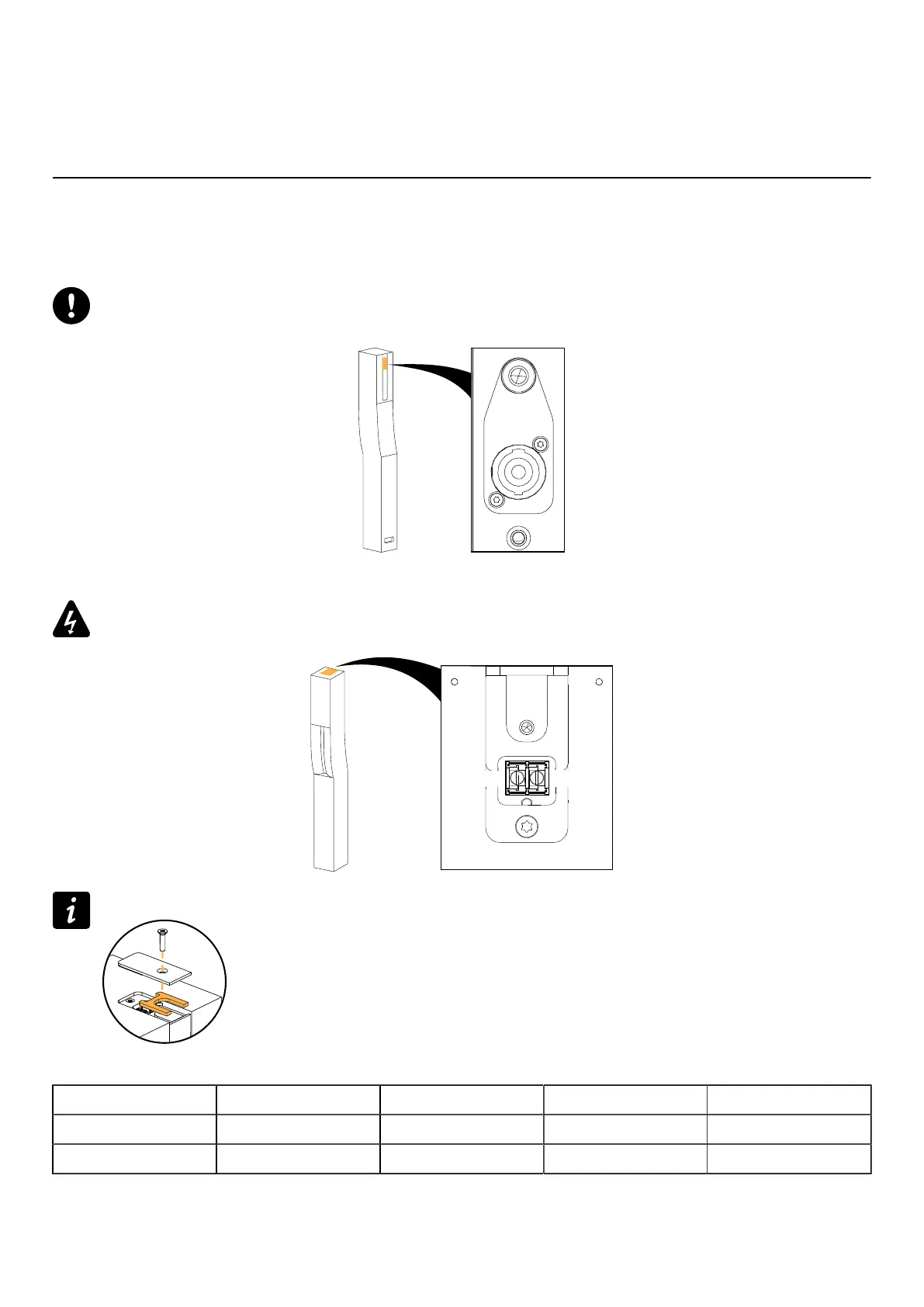

Syva offers multiple types of connectors. Use one type of connector at a time.
Use the speakON connector to connect the enclosure with an SP cable.
The speakON connector is only accessible if Syva Wall is used with a wedge.
Refer to the Syva rigging manual.
IN
Use the screw terminal to connect the enclosure with speaker wire.
Put the cover back on the connector once the wire is installed.
IN +
IN -
When the screw terminal is not in use, put the gasket back to avoid leaks.
Internal pinout for L-Acoustics 2-way passive enclosures
screw terminal points IN + IN - / /
speakON points 1 + 1 - 2 + 2 -
transducer connectors + - Not linked Not linked
Syva user manual (EN) version 1.0 14
