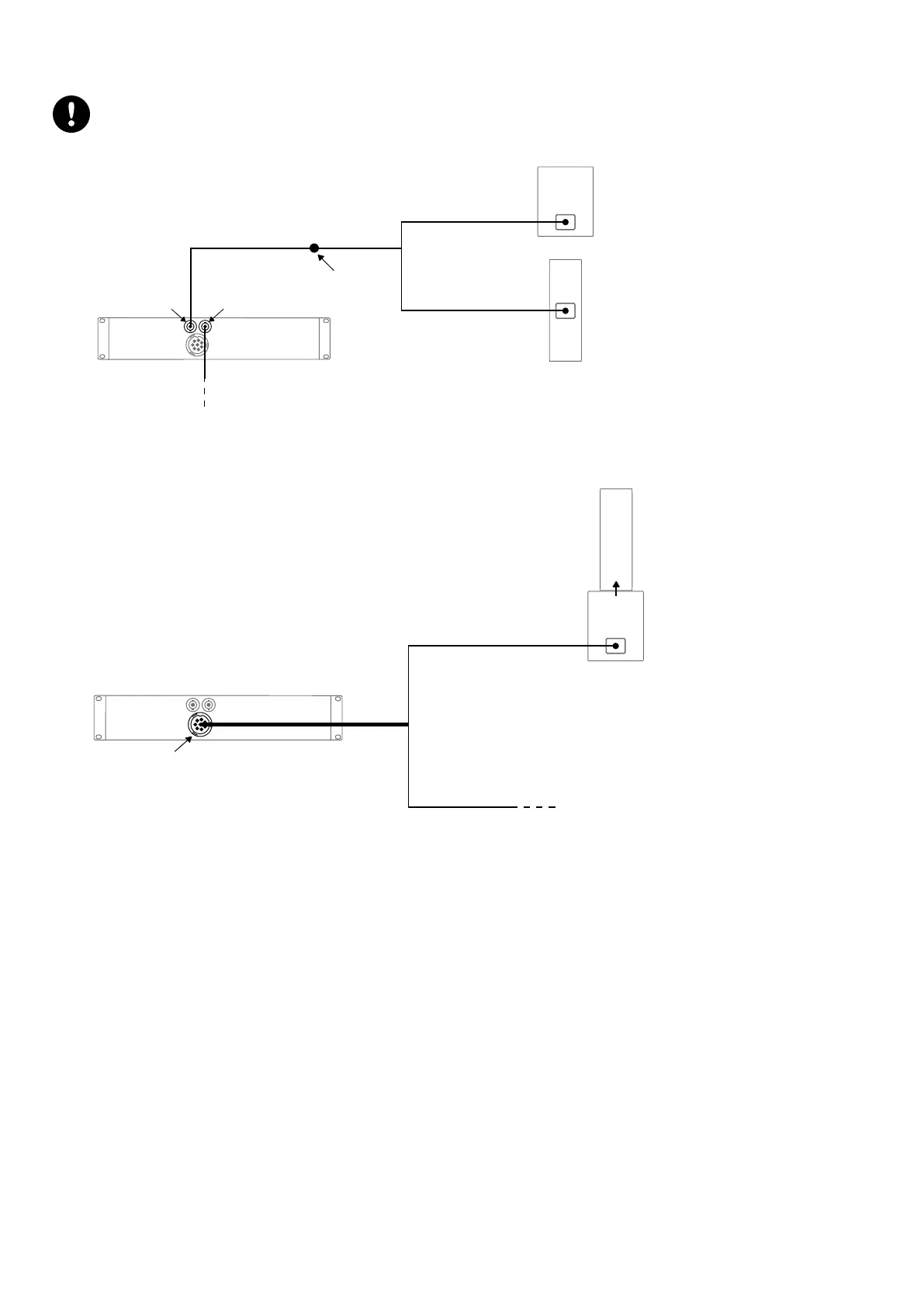

Loudspeaker connection
SP and SP-Y1 on speakON output
Risk of damaging the Syva drivers.
Connect CH(1) to Syva Low and CH(2) to Syva.
OUT1/OUT2
OUT3/OUT4
same as OUT1/OUT2
SP SP-Y1
CC4FP
CH(1) (OUT1)
CH(2) (OUT2)
DO and DOFILL-LA8 on CA-COM output
Autoconnect
CA-COM
DO
DOFILL-LA8
2W CH(A) (OUT1/OUT2)
2W CH(B) (OUT3/OUT4)
Syva user manual (EN) version 1.0 20
