Maintenance
D/R - LF loudspeaker
Tools
— torque screwdriver
— 5 mm hex bit
Repair kits
G03319
KR LF loudspeaker 12'' Syva Low
×1 ×8 ×4
1277 S100054 1250
12" LF speaker M6x30 hex 12" speaker gasket
Pre-requisite
Grill disassembled. See Grill (p.31).
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.

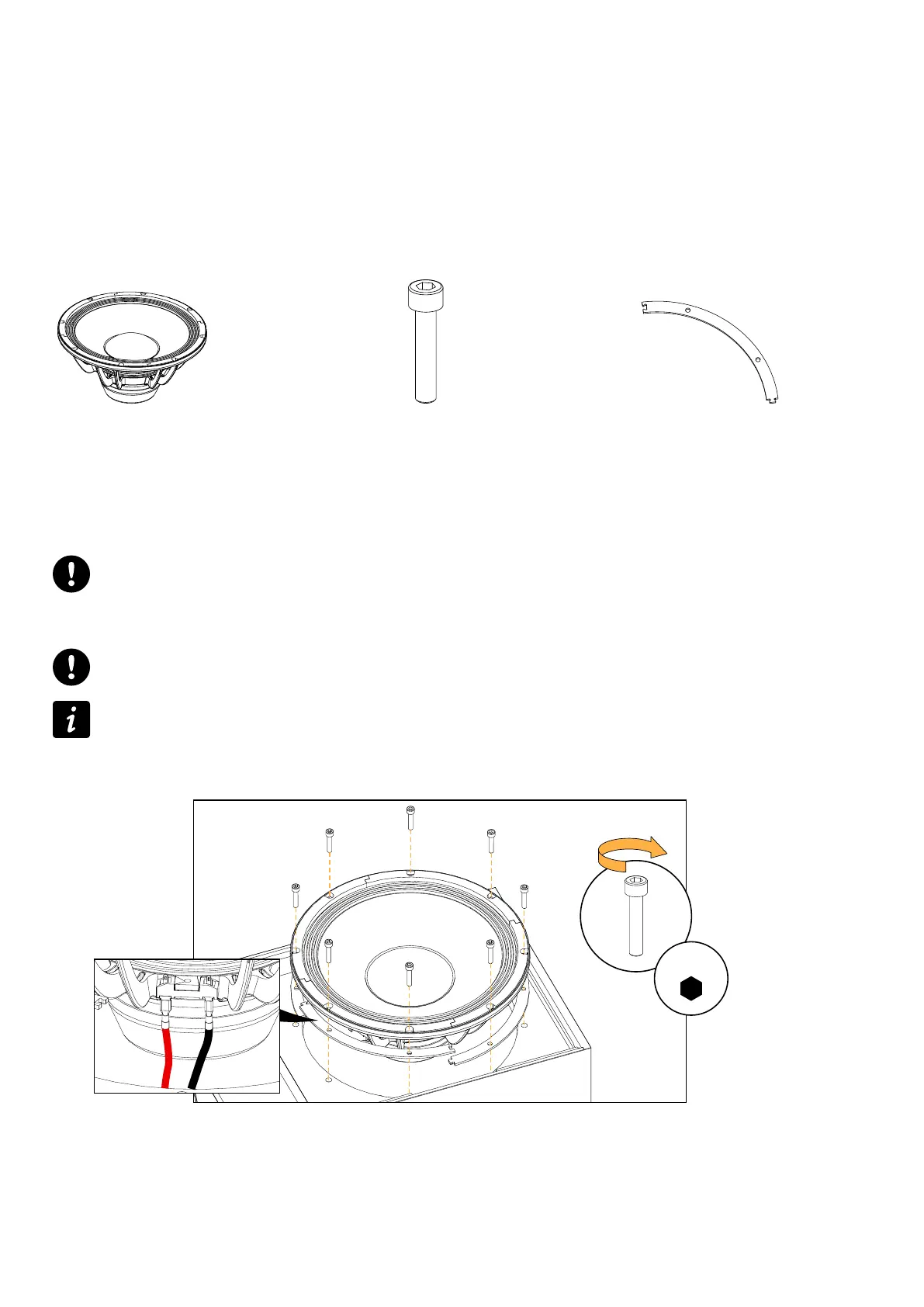

Exploded view
Gradually tighten the screws following a star pattern.
If the speaker gasket is damaged, remove and replace it.
Position the connectors toward the vent.
x8
5 N.m
5 mm
What to do next
Perform the Acoustical check (p.36) procedures.
Syva user manual (EN) version 1.0 32
