Maintenance
D/R - LF loudspeaker
Tools
— torque screwdriver
— 5 mm hex bit
Repair kits
G03320
KR LF loudspeaker 12'' Syva Sub
×1 ×8 ×4
17760 S100054 1250
12" LF speaker - 8 ohms M6x30 hex 12" speaker gasket
Pre-requisite
Grill disassembled. See Grill (p.34).
For safety reasons, always use the new screws and spare parts provided in the KR.
If no new screws are available, use blue threadlocker.

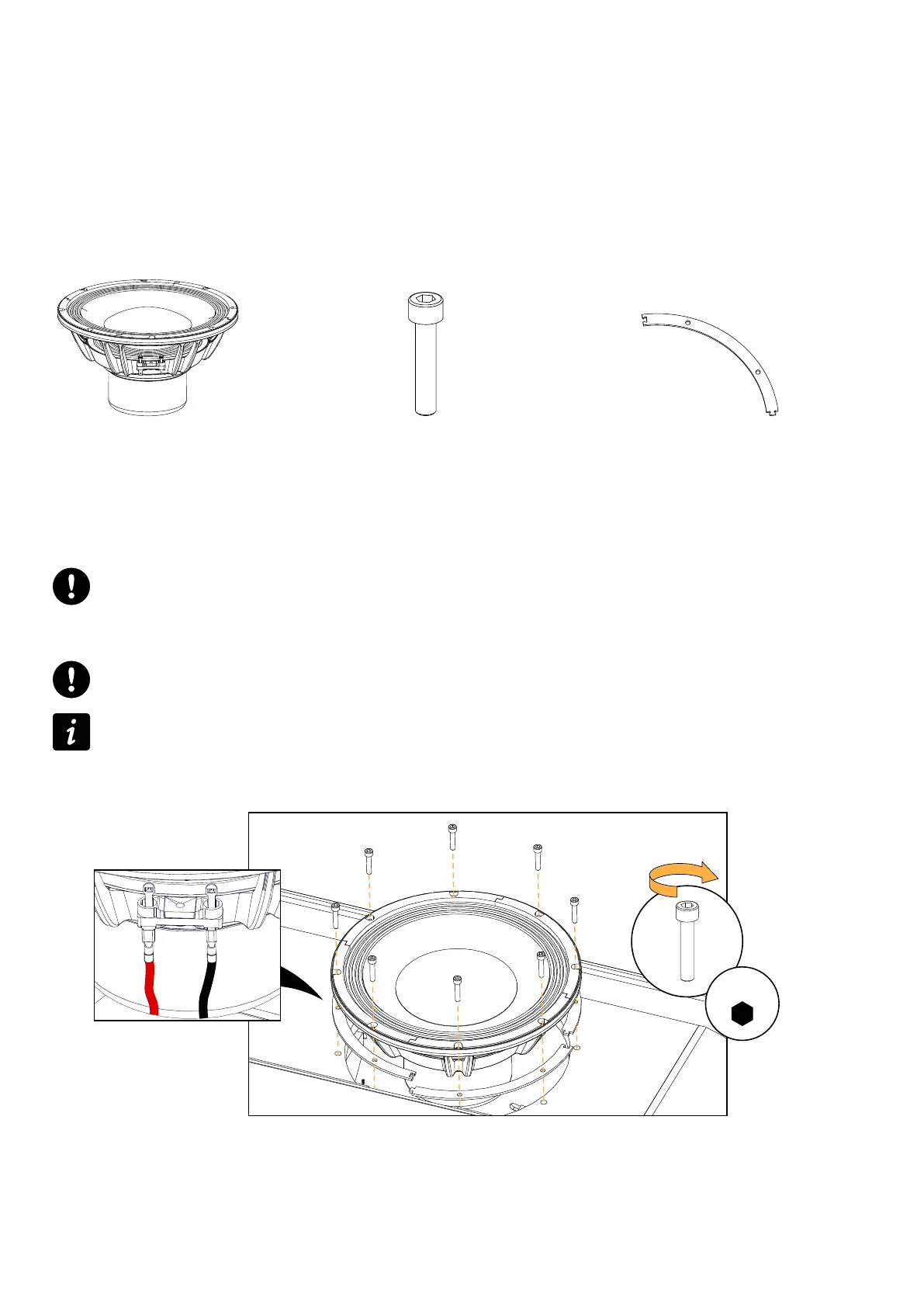

Exploded view
Gradually tighten the screws following a star pattern.
If the speaker gasket is damaged, remove and replace it.
Position the connectors toward the top of the enclosure.
x8
5 N.m
5 mm
What to do next
Perform the Acoustical check (p.36) procedures.
35 Syva user manual (EN) version 1.0
