10
6 7

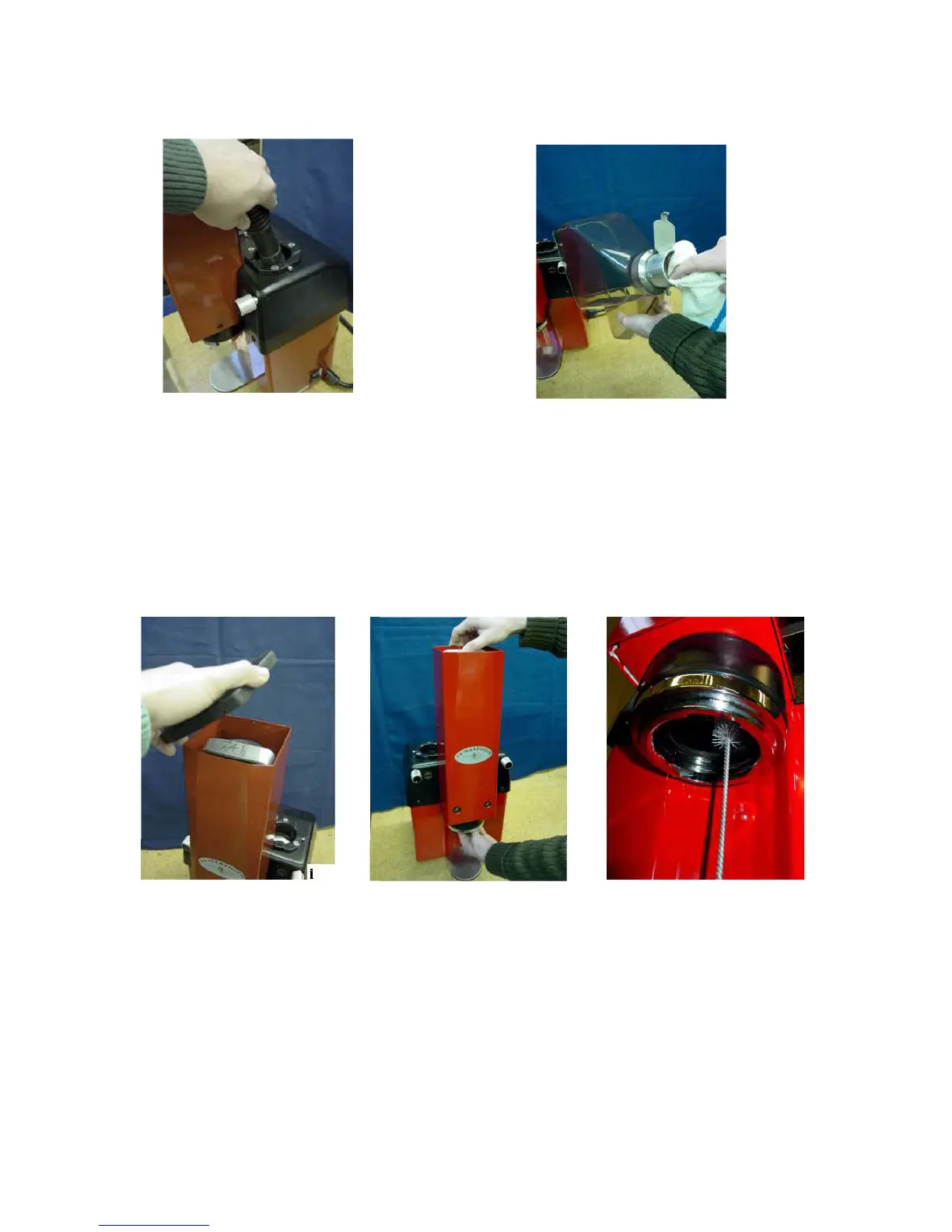

6. Vacuum out the burr area.
7. Using a clean towel, wipe the inside of each hopper. Pay close attention to the bean gate area.
8. Reassemble and test for proper operation.
CLEANING THE IMPELLER
2 3 5
1. Unplug the Swift.
2. Remove the tower cover.
3. Push the shaft brake backwards and hold.
4. With the brake applied, use your thumb and forefinger, pressed against the impeller's flaps, to
remove the impeller
5. With the impeller removed, clean around the bayonet ring with a brush and wipe loose grounds
from this area.
To Next Page
