WARNING Technician Tasks only to be completed by skilled service personnel
Fuse replacement and reset switches
The Swift EPSB has four fuses located at the rear of the machine behind the removable panel.
These correspond to each of the grinder motors, the tamping motor, and the electronic controls.
Occasionally it may be necessary to replace a fuse. When switching fuses be sure to use only
correctly rated replacement fuses. Electronics = 1 ea. @ 125m amps (normal); motor, grinder = 2
ea. @ 10 amps GDC; motor, tamper = 1 ea. @ 1 amp GDC. On model year 2002 and thereafter,
the 10 amp motor fuses are replaced with reset switches on the exterior of the grinder. The
head of the switch will protrude when it needs to be reset.

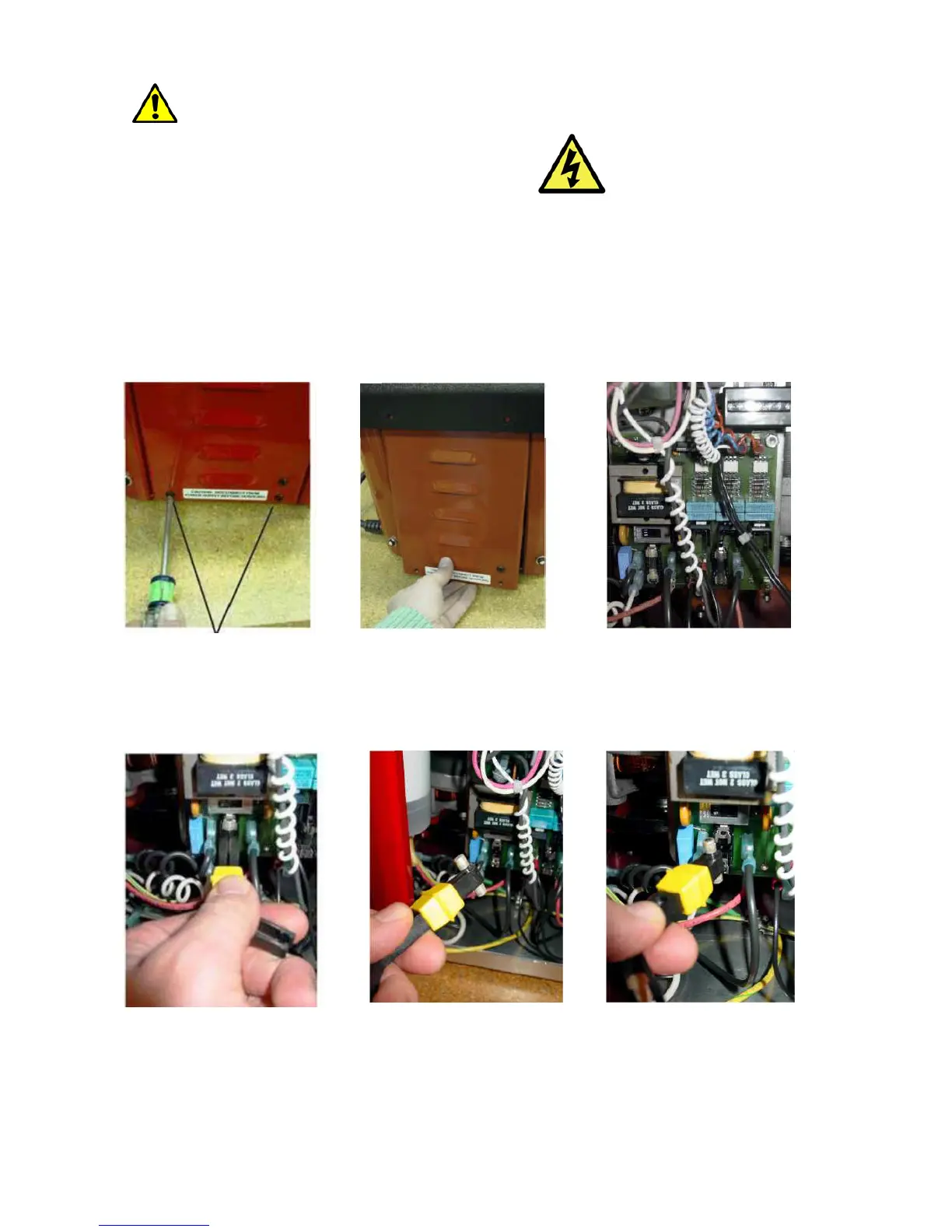

2 3 4
1. Unplug the grinder
2. Remove the 2 lower screws on the back panel. Do not remove the ground wire screw
3. Pull the panel out and down to remove it from the grinder
4. Locate the damaged fuse, identifiable by a broken filament and discoloration of the fuse glass
5 6 7
5. Using the fuse tool provided with the Swift, place the tool onto the fuse and slide the yellow
sleeve forward to lock the tool's jaws
6. Pull out gently but firmly to remove the damaged fuse and discard
7. Place a good fuse into the fuse tool's jaws and reinstall it into it's slot.
8. Reinstall rear panel, plug in grinder and test for proper operation.
