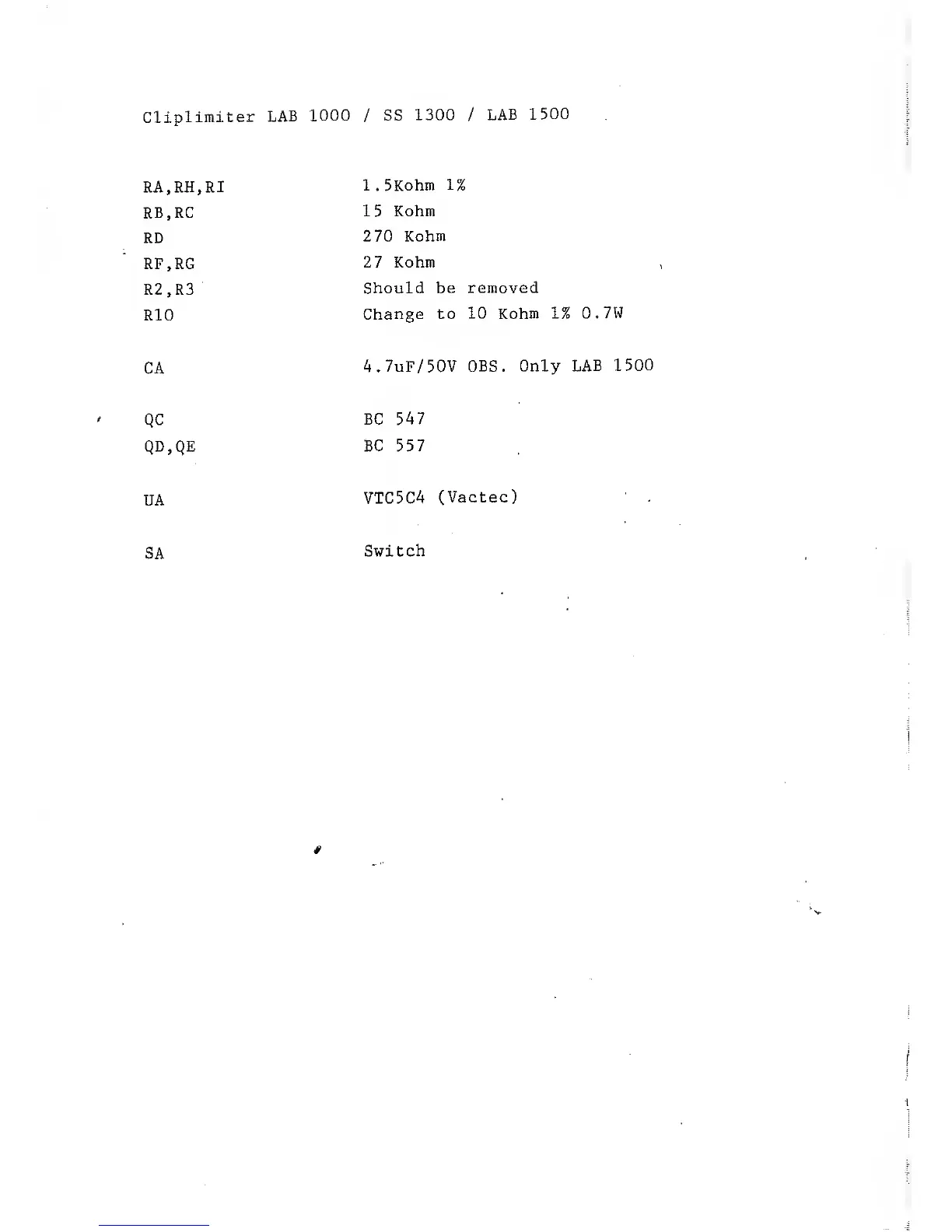

Cliplimiter
LAB
1000
/
SS
1300
/
LAB
1500
RA, RH,
RI
1
.
5Kohm 1%
RB
,
RC
15 Kohm
RD
270
Kohm
RF, RG
27 Kohm
R2,R3
Should
be removed
RIO
Change to
10 Kohm 1%
0.7W
CA
4
. 7uF/ 50V
OBS. Only
LAB
1500
QC
BC 547
QD,QE
BC 557
UA
VTC5C4
(Vactec)
SA
Switch
