Chapter 7: Troubleshooting
Product Service 816-333-8811 or 1-800-522-7658

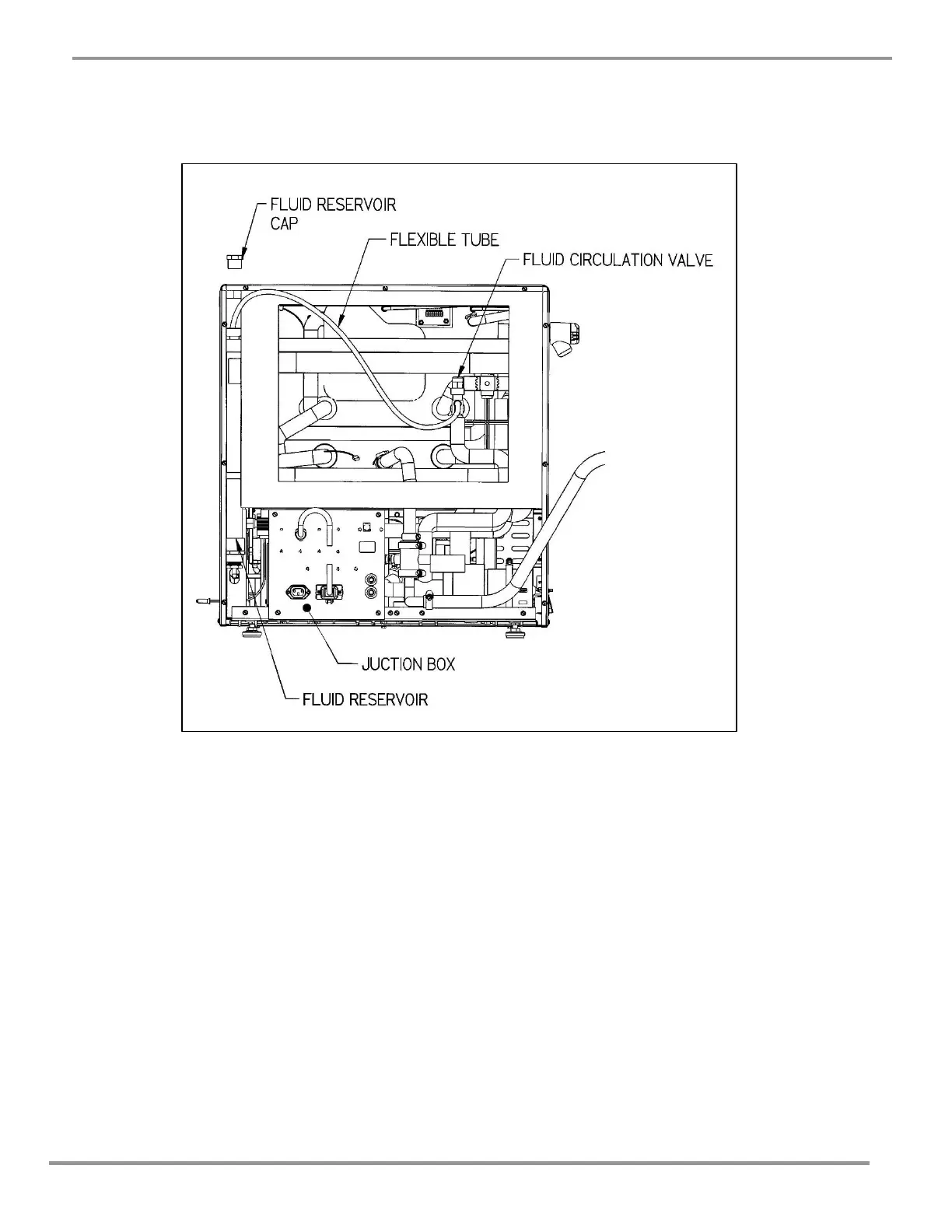

Filling the Fluid System
1. Disconnect power cord from supply outlet.
2. Remove the rear cover to expose the marked back foam insulation.
Cut through the foam along the marked lines and remove center
cutout.
3. Remove the insulation and both caps from the fluid circulation valve.
4. Attach a flexible tube to the exposed port (service port). The port is
3/8" x 45° male flare.
5. Remove the fluid reservoir cap and place the opposite end of the
tubing into the fluid reservoir.
6. Fill the reservoir slowly allowing the fluid to drain through the
system. When the system appears full, prepare to start the circulation
pump.
7. Open the fluid circulation valve by completely “down-seating” (turn
top valve stem completely clockwise) to direct fluid to by-pass
through tubing to fluid reservoir.
