Label Neptis SLT-B User Manual

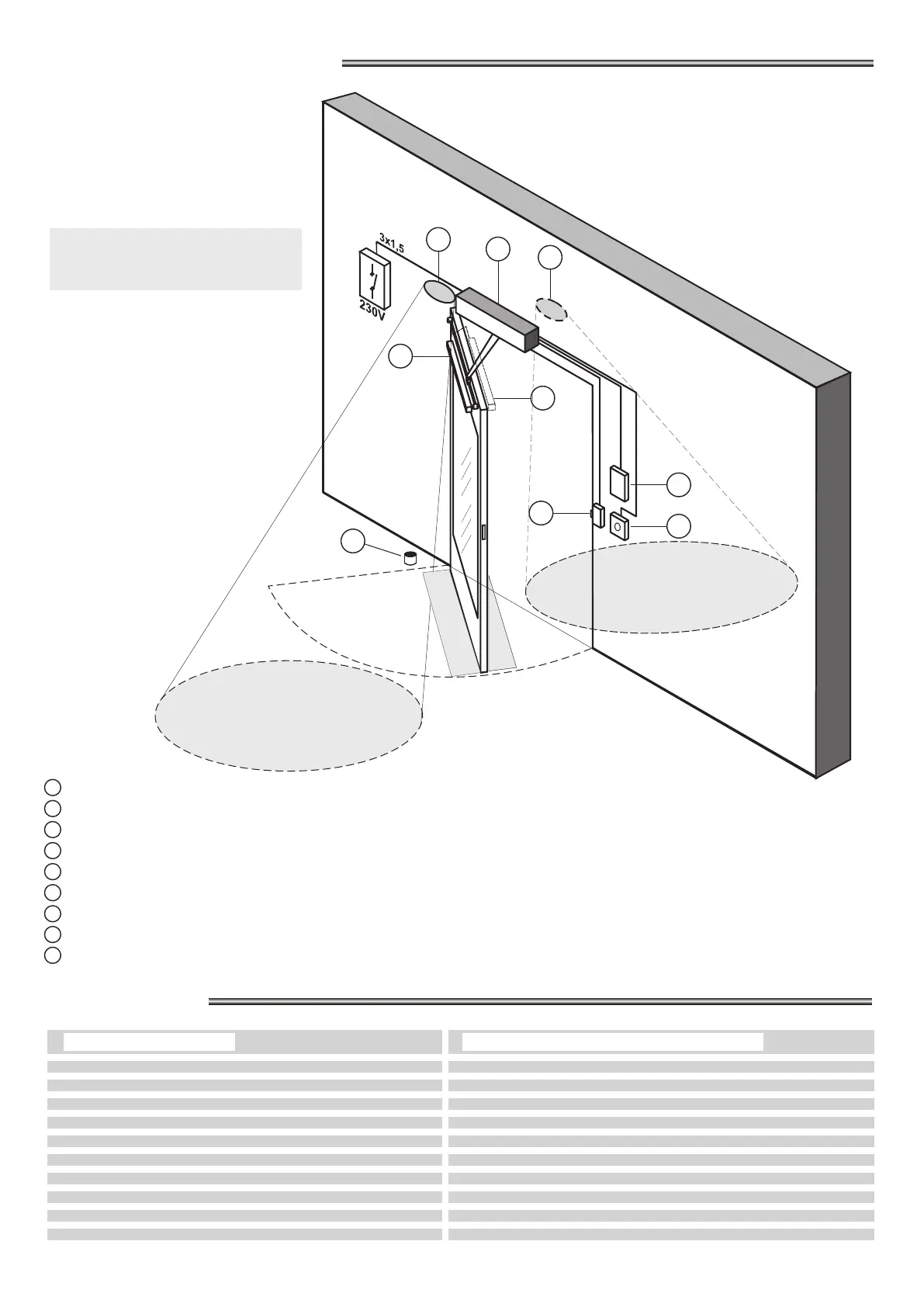

1) INDICATIVE SYSTEM DESCRIPTION
2) TECHNICAL DATA
NOTE:
The grey part indicates the survey
zone of radar and sensors.
2
3
4
5
6
7
EXTERNAL RADAR
INTERNAL RADAR
OPENING BUTTON
PROGRAM SELECTOR
SAFETY SENSOR FOR CLOSING
SAFETY SENSOR FOR OPENING
NEPTIS OPERATOR
ELECTRIC LOCK
FLOOR STOP
8
9
1
7
5
6
4
3
8
1
2
POWER SUPPLY
POWER
MAXIMUM WEIGHT OF DOOR WING
OPERATOR WITH BATTERY DIMENSIONS
WORKING TEMPERATURE
PROTECTION DEGREE
ELECTRIC MOTOR
POWER SUPPLY OF EXTERNAL ACCESSORIES
115/230Vac +/-10%, 50-60Hz
120W
120 Kg (LET, LET-B), 250 Kg (SLT, SLT-B, SMT, SMT-B)
-15°C +50°C
IP31
24Vdc
24Vdc
MODEL OPERATOR
SLT-B, LET-B, SMT-B, SLT, LET, SMT
4
FREQUENCY OF USE continuous
550 x 120 x 110 mm
OPERATOR DIMENSIONS
730 x 120 x 110 mm
9

Label Neptis SLT-B Specifications

General

Brand	Label
Model	Neptis SLT-B
Category	Door Opening System
Language	English
