laerdal SimMan 3G PLUS - Page 71

20-18071 Rev A

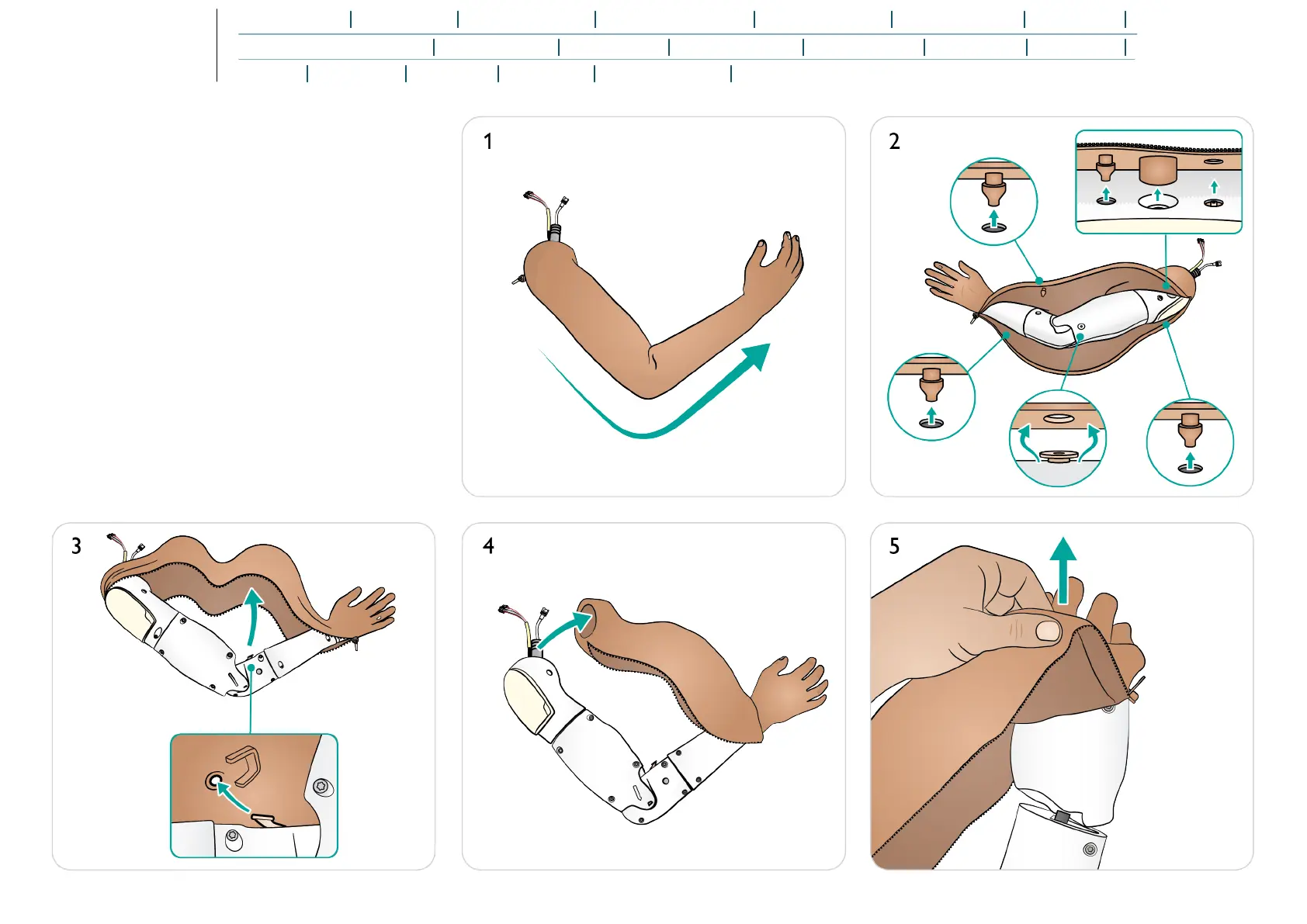

Replacing Arm Skin 1/2
1. Unzip arm skin.
2. Position the arm to expose underside and detach skin
at each plug.
3. Detach skin at inner elbow point.
4. Remove skin from the shoulder area.
5. Remove skin from the hand.
