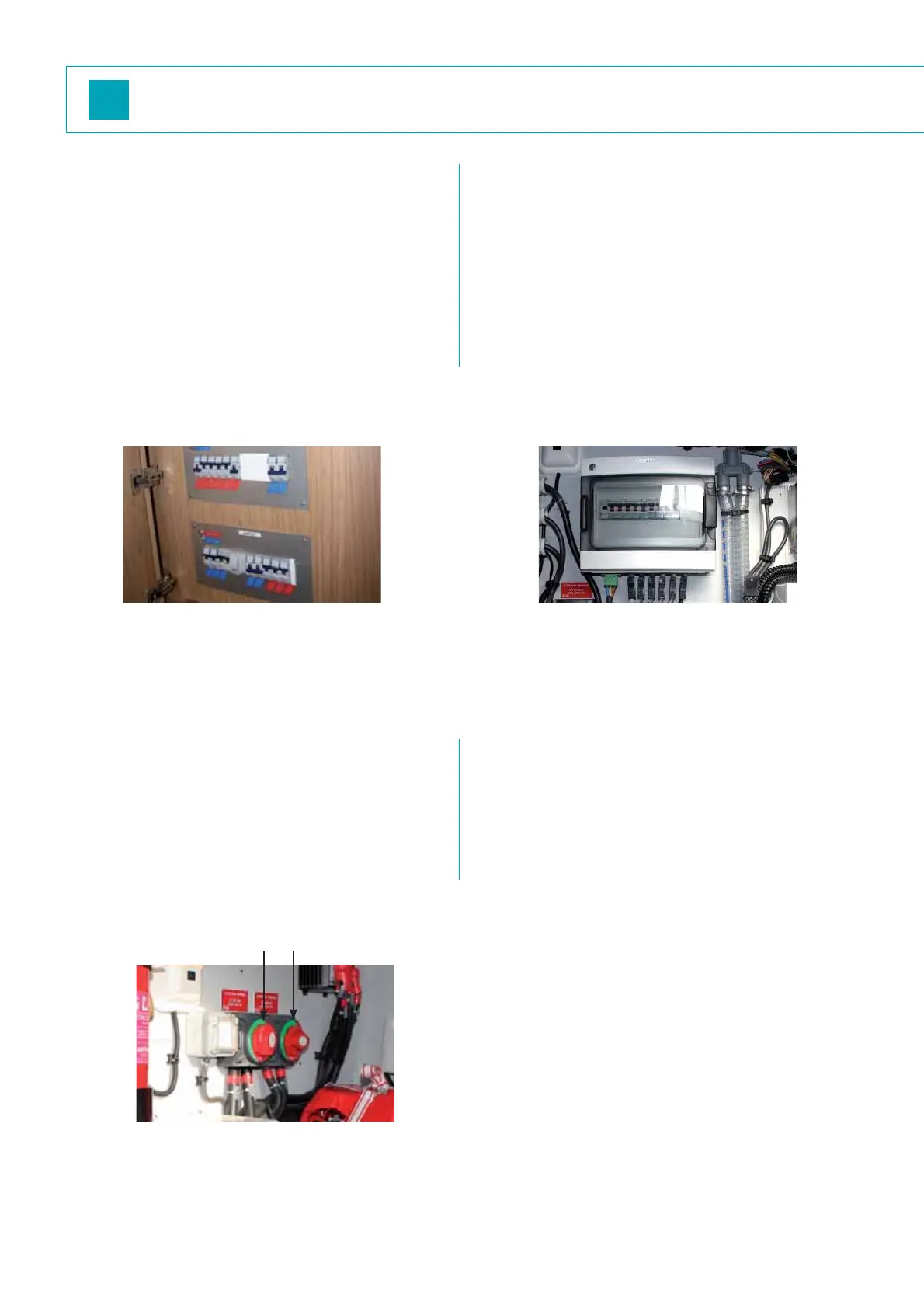

4.3.3 . Emergency starting
If the engine batteries are not available, a coupling
system of the port and starboard 12 V starting
batteries is available (in the starboard engine
compartment).
To select the battery coupling:
- Activate (ON position) the general cut out, the
starboard and port side engine cut outs and then
the coupling cut out located in the starboard
engine compartment.
- Start the engines, both port and starboard sides.
- When both engines have started, switch o (OFF
position) the coupling cut out.
Please note: in a normal con guration, the 12 V engine starting batteries would then be charged by the engine
12 V alternators.
1 - Battery coupling (12 V) cut out
2 - Starboard engine (12 V) cut out
4
MANAGEMENT OF 110 V - 220 V SUPPLY
The chart table multifunction touch screen
enables you to choose the power supply source
(shore power socket, generator or inverter) for the
di erent 110 V - 220 V appliances on board.
110 V - 220 V PROTECTION PANELS
The starboard passageway electrical cabinet groups
2 automatic breaker busbars for 110 V - 220 V
appliances and equipment:
The upper line concerns the HIGH LOAD busbar
(220 V - 50 or 60 Hz).
The lower line concerns the COMFORT busbar (220 V
- 50 Hz or 110 V - 60 Hz).
The automatic breakers for the air conditioning
units are located in the port engine room.
Nota: all the automatic breakers of the 110 V - 220 V
circuit are bi-polar automatic breakers.
Automatic breakers 110 V - 220 V
Air conditioning unit automatic breakers
