Lagoon 52 - Page 25

25

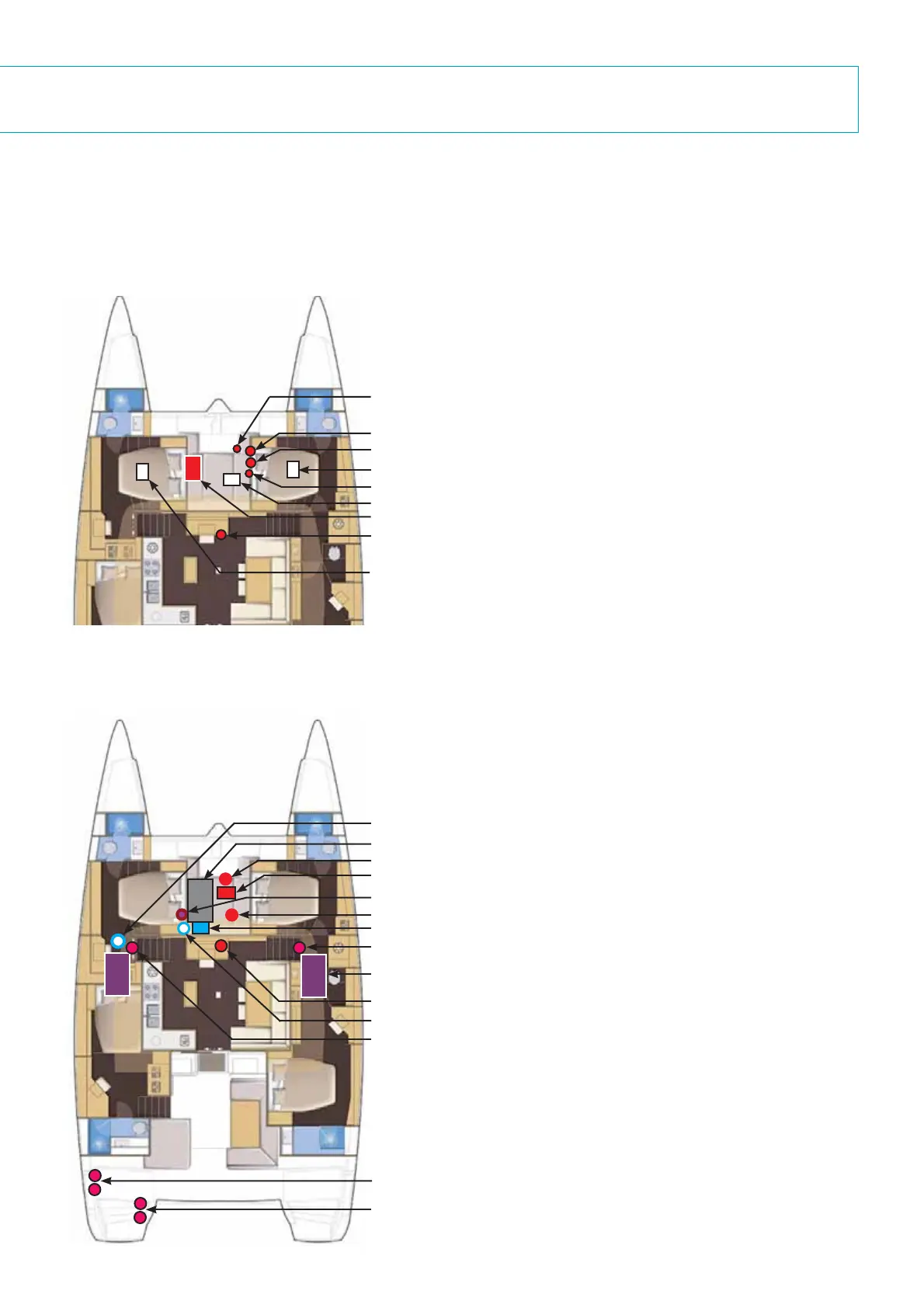

4.3.4 . Location of the battery cut outs, electrical panels and appliances...
Before replacing a fuse, switch o the cut outs.
Some equipment appearing on the panel below may be optional.
EQUIPMENT
1A - Generator sea water inlet valve
1B - Generator sea water  lter
1C - Fuel booster pump
2 - Generator
3 - Battery charger of the generator
4 - Generator start battery
5 - Generator fuel  lter
6 - Generator automatic breakers
7 - Water / gas separator
8 - Fuel / generator stop pull handles
9 - Fuel tank
10 - Chart table remote control
11 - Drain valve of separator
12 - Generator / tank selection pull rob
13 - Automatic breakers of the shore power sockets
14 - Shore power sockets
1
7
3
2
4
2
5
6
8
6
1 - 12 V / 110 V - 220 V / 1500 Va inverter (standard)
2 - 12 V / 220 V / 100 Ah charger (standard)
3 - 12 V / 220 V / 100 Ah charger (optional extra)
4 - On board battery bank (standard)
5 - 12 V / 110 V - 220 V - 3000 Va inverter
(optional extra)
6 - On board battery bank (optional extra)
7 - Generator
8 - General on board 12 V cut-out
3
4
10
11
12
9
8
1
6
7
13
2
5
14
