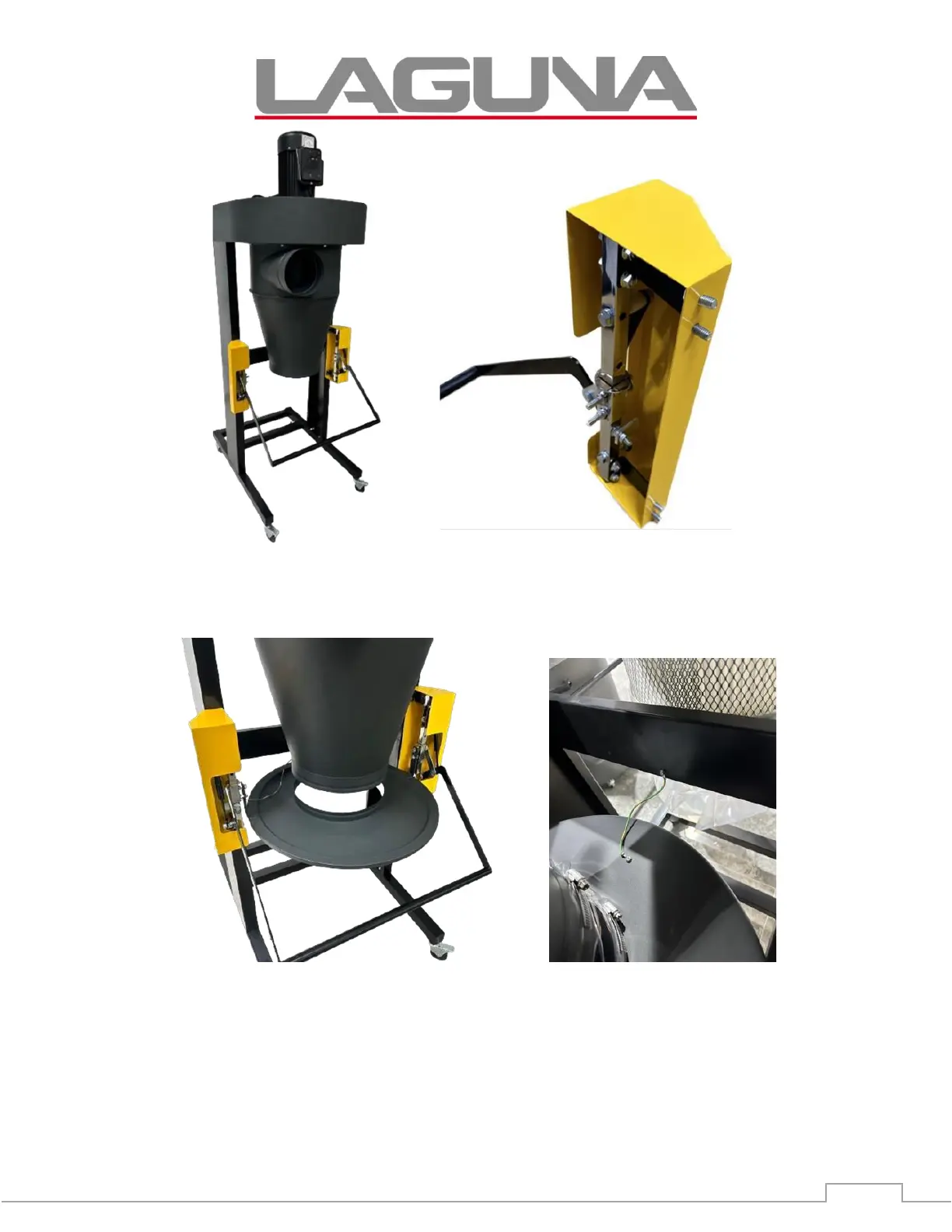

7. Pass a 5/16”-18 x 3/4” flange bolt through the handle guides and the lock handle
cover, secure it to both side uprights using a 5/16” flange nut.
8. With collection drum lid mounting brackets facing up, orient lid so dust port, flexible
hose, and spring brackets align. Secure collection drum lid with 5/16” flange nut.
9. Connect ground wire to Reinforcement Plates, then secure Collection Drum Lid and
ground wire using 10-24 x 3⁄8" screw and nut.
