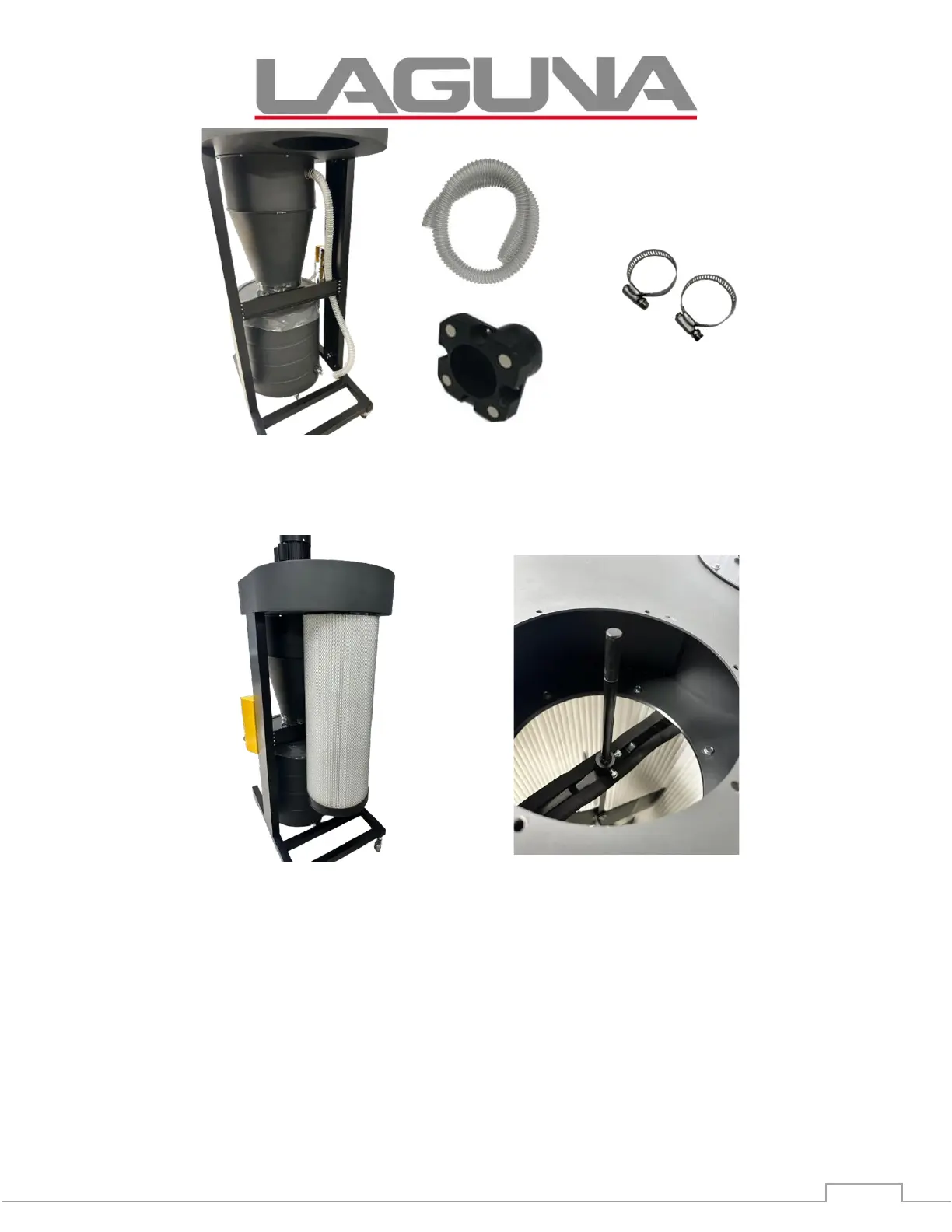

15. Place 1-3⁄4" hose clamps on each end of 1- 1⁄2" x 60" vacuum hose, then connect
hose to ports on cyclone funnel and magnet vacuum Port.
16. While assistant holds canister filter under impeller housing, reach into impeller
housing and attach canister filter to impeller housing with 5⁄16"-18 x 3⁄4" flange bolts.
17. Insert filter handle spindle so one of two M6-1 x 16 cap screw tips aligns
with flat on side of filter paddle spindle, then tighten both cap screws to secure
spindle.
